Installation

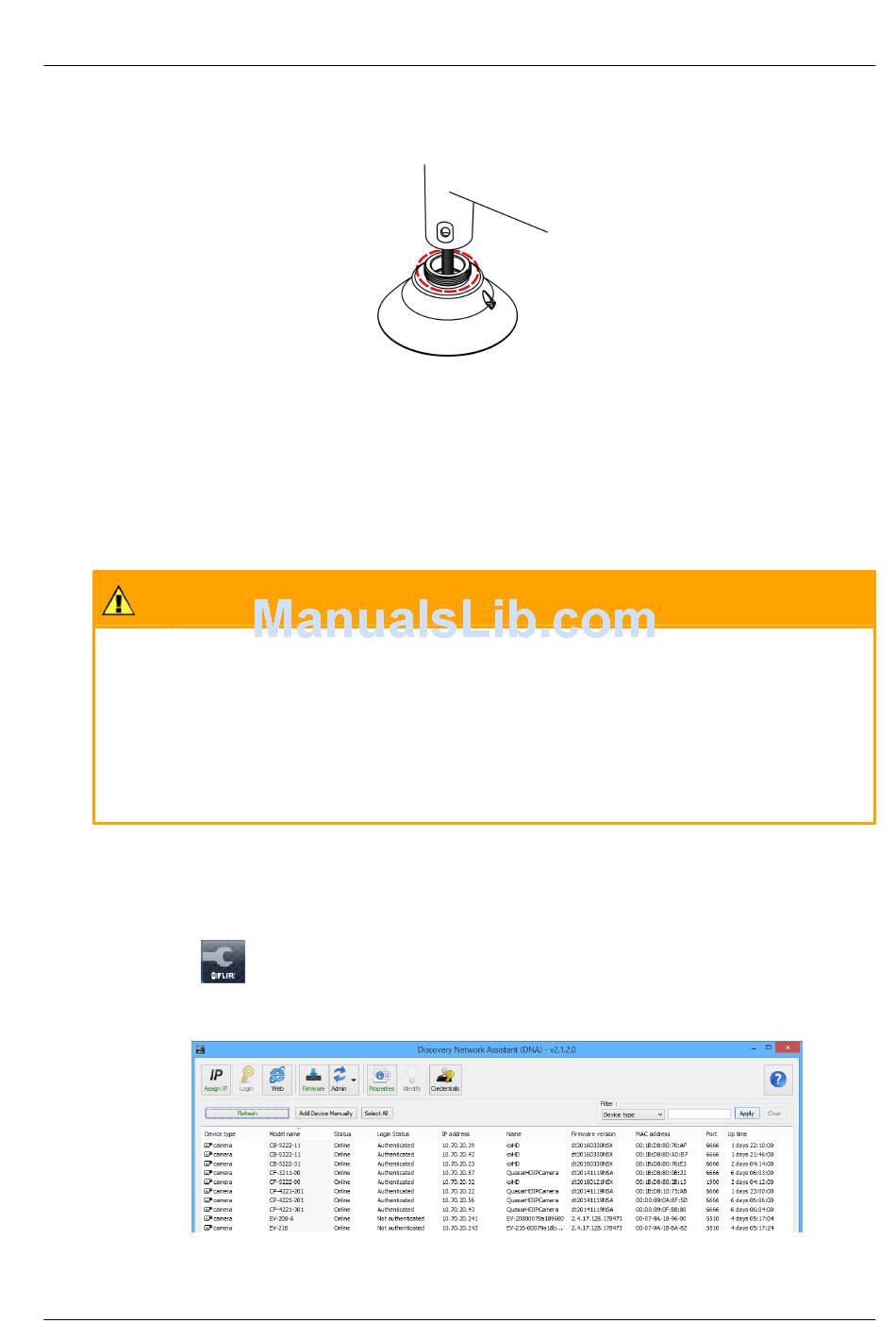

Seal the cable entry hole of the outdoor mounting kit (see figure below) with thread seal tape to keep
water from entering the camera.
5.2

Initial Camera Configuration

To perform the initial camera configuration
1. Unpack the camera. Rotate and remove the protective cover.
2. Remove the PE cloth sheet and lens cap. Attach the dome cover to the body.
3. On the camera back plate, plug the Cat 5 cable into the camera's Ethernet port. If the network does
not use IEEE 802.3bt PoE++, plug a properly rated 24VAC power supply into the cameras' power
connector terminal block.
Caution:
Make sure that the power supply connection matches the positive and negative polarity on
the unit.
Attention:
Assurez-vous que le branchement à l'alimentation corresponde aux polarités positive et
négative sur l'unité.
4. Verify that the LEDs on the RJ45 connector illuminate green (indicating a stable network connection)
and flashing yellow (to indicate network activity).
5. Do the following:
a. Copy and run dna.exe (see note below) from the included CD.
b. Click the
a. Select the unit requiring IP assignment.
18
Sealing Cable Entry Hole
icon.
Discovered IP Devices
