FLIR N347VW4 SERIES Quick Start Manual

Compatible Accessories
This security camera has several mounting options:
Accessories Model Numbers
Junction Box S4JF6G*
Wall Mount S6WF1G
Pendant Cap S6PCF1G
Pole Mounts S4PA2G with S6WF1G, or
S1PA2G with S6CF1G
Corner Mounts S1RA2G with S6WF1G
Ceiling Mount S6CF1G
*Required for conduit installation.

Safety Precautions

• Use an appropriate low-voltage power cable to prevent fire
or electrical shock.
• Make sure to install the camera in an area that can support
the camera weight.
• There are no user-serviceable parts inside the camera. Do
not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Use a soft cloth to clean the lens cover.
• Camera is rated for outdoor use (IP66), but is not intended
for submersion in water.
• Extend the Ethernet-cable run for your camera up to
300ft. You can use an RJ45 coupler or network switch to
connect male ends of Ethernet cable together. A maximum
of 3 connections is recommended.
Weights & Dimensions
6.3"
2.0lbs / 0.9kg
159mm
4.7"
118mm
6.3" / 159mm
Adjusting Zoom and Focus
Adjust the camera's zoom and focus using an NVR or the web
interface. For more information, see your NVR's instruction
manual on www.flir.com/security/pro.
NVR: Right-click on the camera's live view and then
1
click AutoFocus. Use the sliders to adjust the zoom and
focus.
Web Interface: Use the controls in the right-hand panel
2
to adjust the zoom and focus.
Manual Zoom In/Out: Located on the camera base, press
3
W to zoom out and T to zoom in.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Weight
IT'S ALL ON THE WEB!
flir.com/security/pro
FLIR Systems, Inc., Copyright © 2017
As our products are subject to continuous improvement, FLIR Systems
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
VISIT

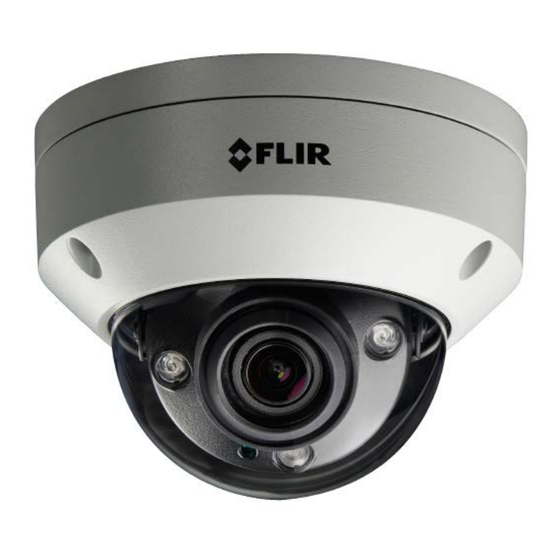

4MP Motorized Varifocal
Network Vandal Dome Camera
QUICK START GUIDE MODEL: N347VW4
English Version 2.0
flir.com/security/pro
SERIES
N347VW4_QSG_EN_R2
