Camera Connectors

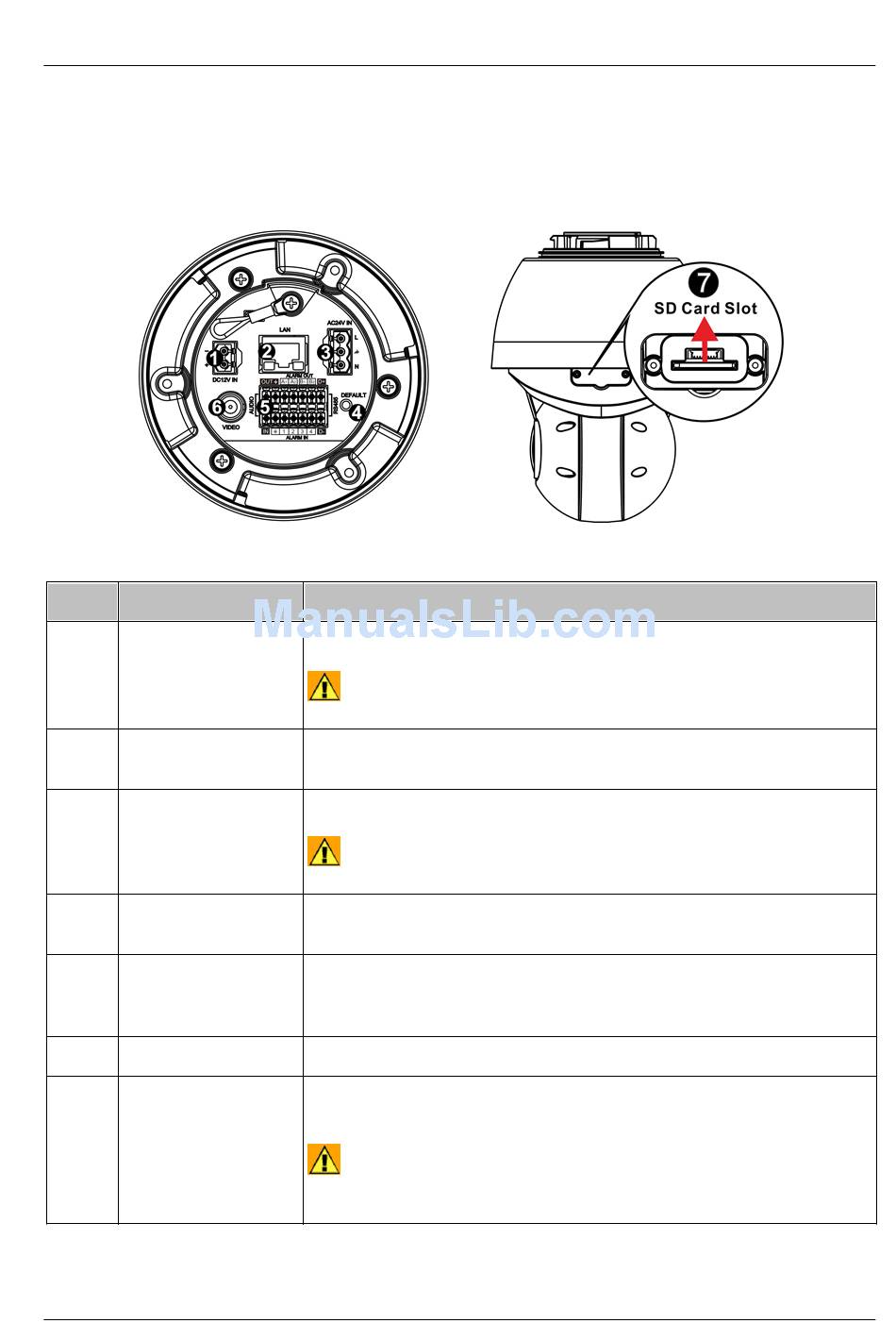

Following are an illustration and explanation of the connectors located on the PTZ camera's connector
panel.
Callout Description/Label
1 DC12V IN
2 LAN
3 AC24V IN
4 DEFAULT
5 AUDIO/ALARM
OUT/ALARM IN/
RS485
6 VIDEO
7 SD card slot
12
Connector Locations
Comments
12VDC two-pin terminal block connector. See pin assignment below
The 12VDC connector and 24VAC connector cannot be used at the
same time.
RJ45 connector for 10/100 Mbps Network and PoE++ (IEEE 802.3bt)
connections.
24VAC three-pin power terminal block. See pin assignment below.
The 12VDC connector and 24VAC connector cannot be used at the
same time.
Factory default reset button. Press the button for at least 20 seconds to
restore factory defaults.
14-pin terminal block for I/O and RS-485 connections. See pin
assignment below.
BNC connector for analog video output.
Insert an SD card or microSDXC card with adapter (not supplied) to store
video clips and snapshots.
Do not remove the card when the camera is powered on. It is not
recommended to record 24/7 continuously. Refer to the card
manufacturer for card stability and life expectancy.
