DVC6200f Digital Valve Controller
D Device descriptions furnished by the Fieldbus
Foundation (on CD-ROM or diskette) contain the files
for each registered manufacturer and their associated
device(s). It is placed on the media starting with the
release folder, which then contains a folder (xxxxxx)
for each manufacturer as defined above. For Fisher
this folder is 005100. A readme file may be included at
the top level. Read this file for any additional
information regarding the DD.
D For the DVC6200f—The device type parameter
for this unit is 4602. This device includes the AO, PID,
ISEL, OS, AI, MAI, DO and DI function blocks. From
DeltaV Explorer, select the amsdevices\005100\4602
folder (refer to figure E-2).

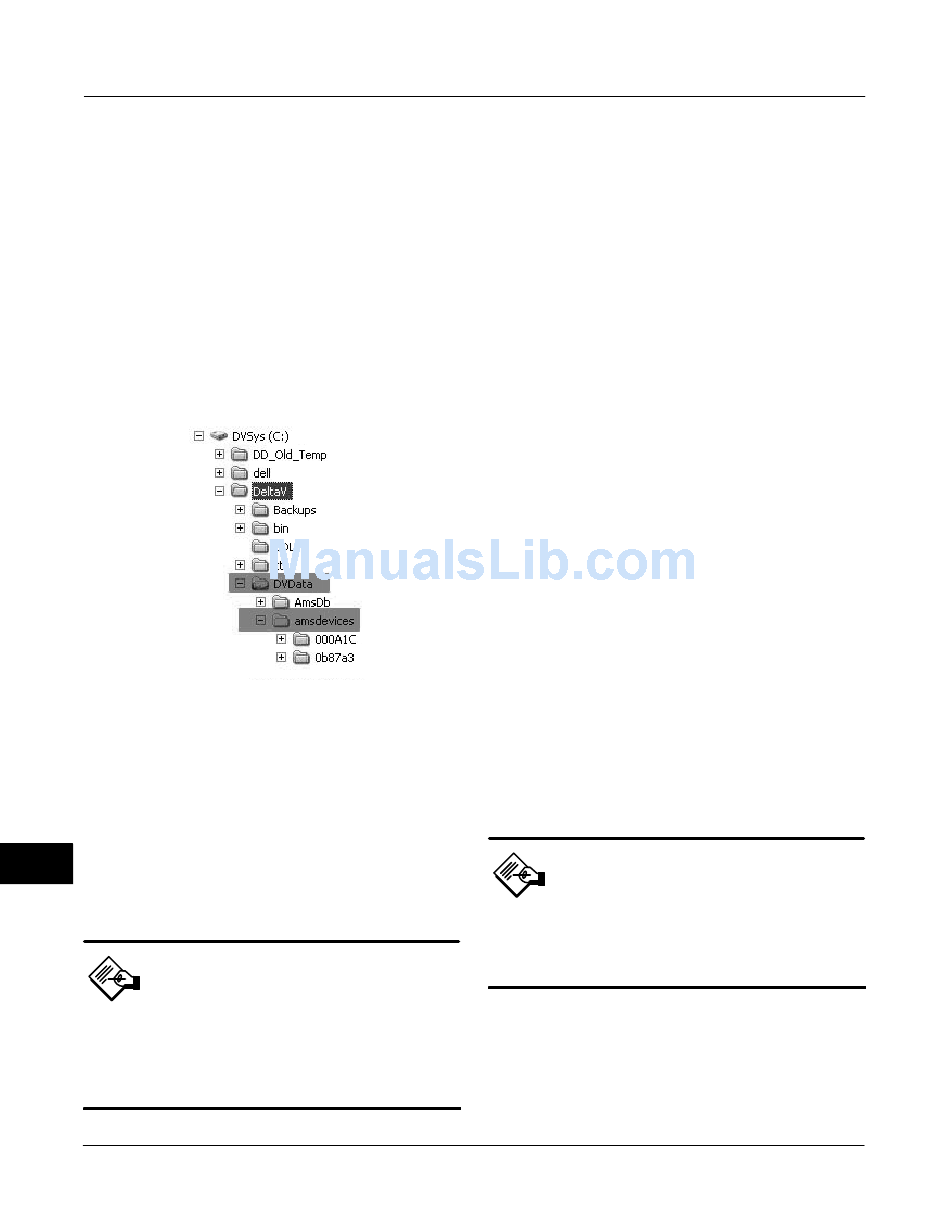

Figure E-2. amsdevices folder
D The most recent device description for Fisher
devices can be downloaded from the internet at
www.FIELDVUE.com. If you are downloading from the
internet, the file on the website will be compressed
(zipped) and must be decompressed (unzipped)
before proceeding. Refer to the website download and
installation procedures for setting up the DD on your
E
system. Note the folder where the decompressed files
are placed. This information will be required later in
the installation procedure.
Note
Record any warning/error messages
from the message window in DeltaV
Explorer so that it can be
communicated to the DeltaV Technical
Support Group.
276
Installing DDs on Other Fieldbus
Host Systems
The following is a generic procedure for installing the
device descriptions on a host system. Refer to your
host system documentation for specific information. In
general the following may apply:
D Device descriptions furnished by Fisher contain
only those files applicable to Fisher. All the files are
located in the manufacturer ID Folder (005100 for
xxxxxx in directory structure above). A readme file is
included at the top level. Read this file for any
additional information regarding DD installation.
D Device descriptions furnished by the Fieldbus
Foundation (on CD-ROM or diskette) contain the files
for each registered manufacturer and their associated
device(s). It is placed on the media starting with the
release folder, which then contains a folder (xxxxxx)
for each manufacturer as defined above. For Fisher
this folder is 005100. A readme file may be included at
the top level. Read this file for any additional
information regarding the DD.
D For the DVC6200f Digital Valve
Controller—The device type parameter for this unit is
4602. This device includes the AO, PID, ISEL, OS, AI,
MAI, DO and DI function blocks. From Windows
Explorer, select the release\005100\4602 folder.
D The most recent device description for Fisher
devices can be downloaded from the internet at
www.fisher.com. If you are downloading from the
internet, the file on the website will be compressed
(zipped) and must be decompressed (unzipped)
before proceeding. Refer to the website download and
installation procedures for setting up the DD on your
system. Note the folder where the decompressed files
are placed. This information will be required later in
the installation procedure.
Note
This procedure will install the
necessary Device Description files
(*.ffo and *.sym), and Capabilities file
(*.cff) for the device.
1. Locate or create the folder on the host system to
contain all the DD and capabilities files.
If you are creating a folder, you can name this new
folder whatever you would like and it can have any
path you define. For this installation procedure, this
folder will be referred to as the base folder.
