pressure that corresponds to 0% valve travel when
Zero Power Condition is closed, or 100% valve travel
when Zero Power Condition is open. The pressure
must be less than the Pressure Range Hi.
Input Characterization
TB > Configure/Setup > Detailed Setup >
Field Communicator
Response Control > Input Characterization
Input Characterization (INPUT_CHAR [50]) defines
the relationship between the travel target and the
setpoint received from the output block. Travel target
is the output from the characterization function.

Custom Characterization Table

TB > Configure/Setup > Detailed Setup >
Response Control > Custom Characterization
Field Communicator
Table
You can select from the three fixed input
characteristics shown in figure 4-1 or you can select a
custom characteristic. Figure 4-1 shows the
relationship between the travel target and travel set
point for the fixed input characteristics.
You can specify 21 points on a custom characteristic
curve. Each point defines a travel target, in % of
ranged travel, for a corresponding set point, in % of
ranged set point. Set point values range from −25.0%
to 125%. Before modification, the custom
characteristic is linear. You cannot modify the custom
points if the Input Characterization (INPUT_CHAR
[50]) is set to custom.

Outblock Selection

TB > Configure/Setup > Detailed Setup >
Field Communicator
Response Control > Outblock Selection
Outblock Selection (OUTBLOCK_SEL [96]) defines
which output function block will control the setpoint of
the valve. The output block that is not selected will
shed its mode to reflect that it does not have control of
the valve.

Alerts

The DVC6200f provides two levels of alerts;
Instrument alerts and PlantWeb alerts.

Instrument Alert Conditions

Instrument Alert Conditions, when enabled, detect
many operational and performance issues that may be
of interest. To view these alerts, the user must open
the appropriate status screen on a host such as
DeltaV, ValveLink software or a Field Communicator.
November 2010
Transducer Block
125
100
0
−25
Set Point, %
−25
0
Input Characteristic Linear
125
100
0
−25
−25
Set Point, %
0
Input Characteristic Equal Percentage
125
100
0
−25
−25
0
Set Point, %
Input Characteristic Quick Opening
A6535-1/IL

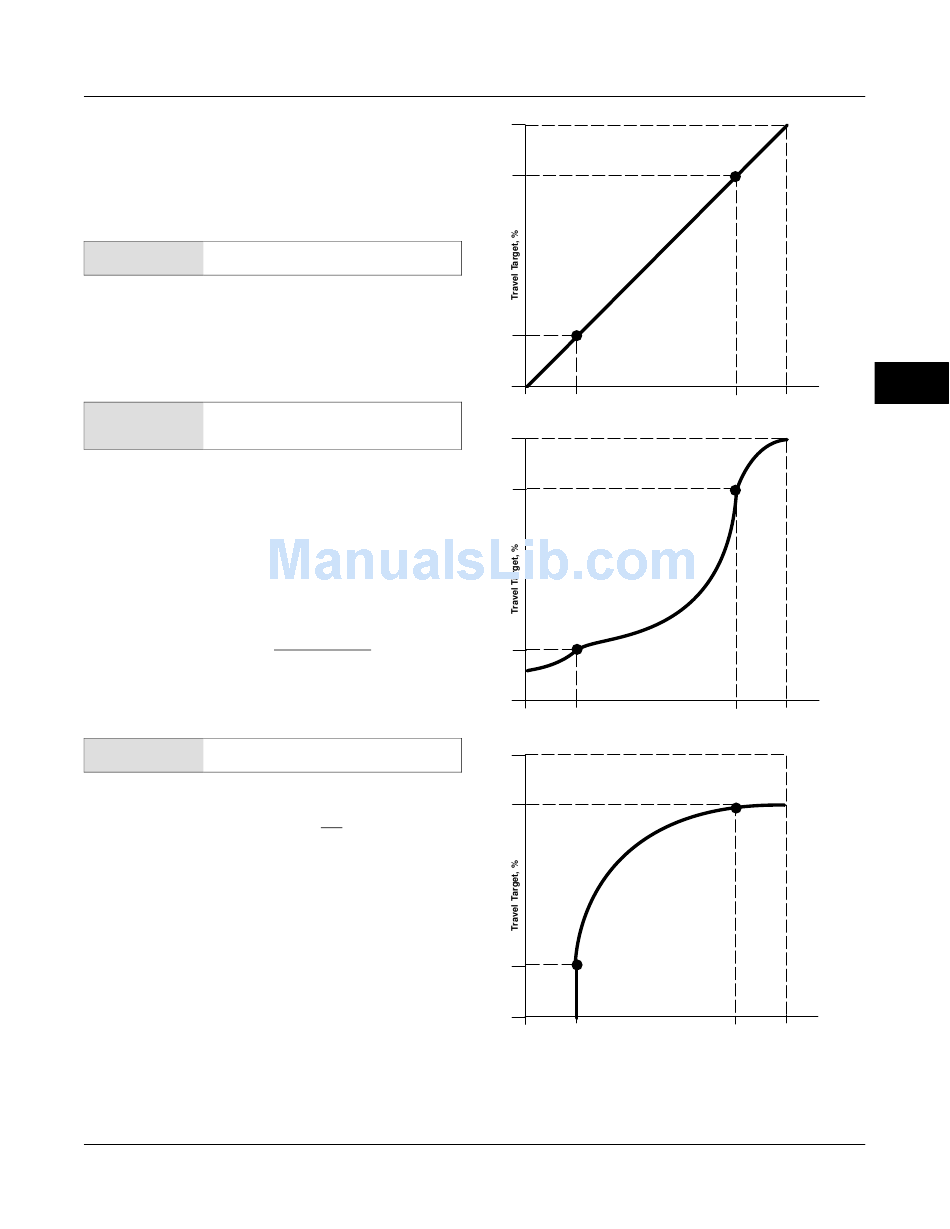

Figure 4-1. Travel Target Versus Ranged Set Point, for Various
Input Characteristics (Zero Power Condition = Closed)
4
100 125
100 125
100 125
55
