Emerson FIELDVUE DVC6200f Instruction Manual page 258

DVC6200f Digital Valve Controller
FM APPROVED
ENTITY DEVICE
1
NOTE 7
1.4 W
B
FM APPROVED
FISCO TERMINATOR
SEE NOTES IN FIGURE B-5
1
GE42819−A Sheets 3 and 4 of 8
246
I.S. CLASS I,II,III DIV 1, GROUPS A,B,C,D,E,F,G
N.I. CLASS I, DIV 2, GROUPS A,B,C,D
NOTE 1, 3
1
Pi T CODE T (amb)
 80_C
T4
 77_C
T5
 62_C
T6
I.S. CLASS I,II,III DIV 1, GROUPS A,B,C,D,E,F,G
FM APPROVED
FISCO DEVICE
NOTE 2, 3 1

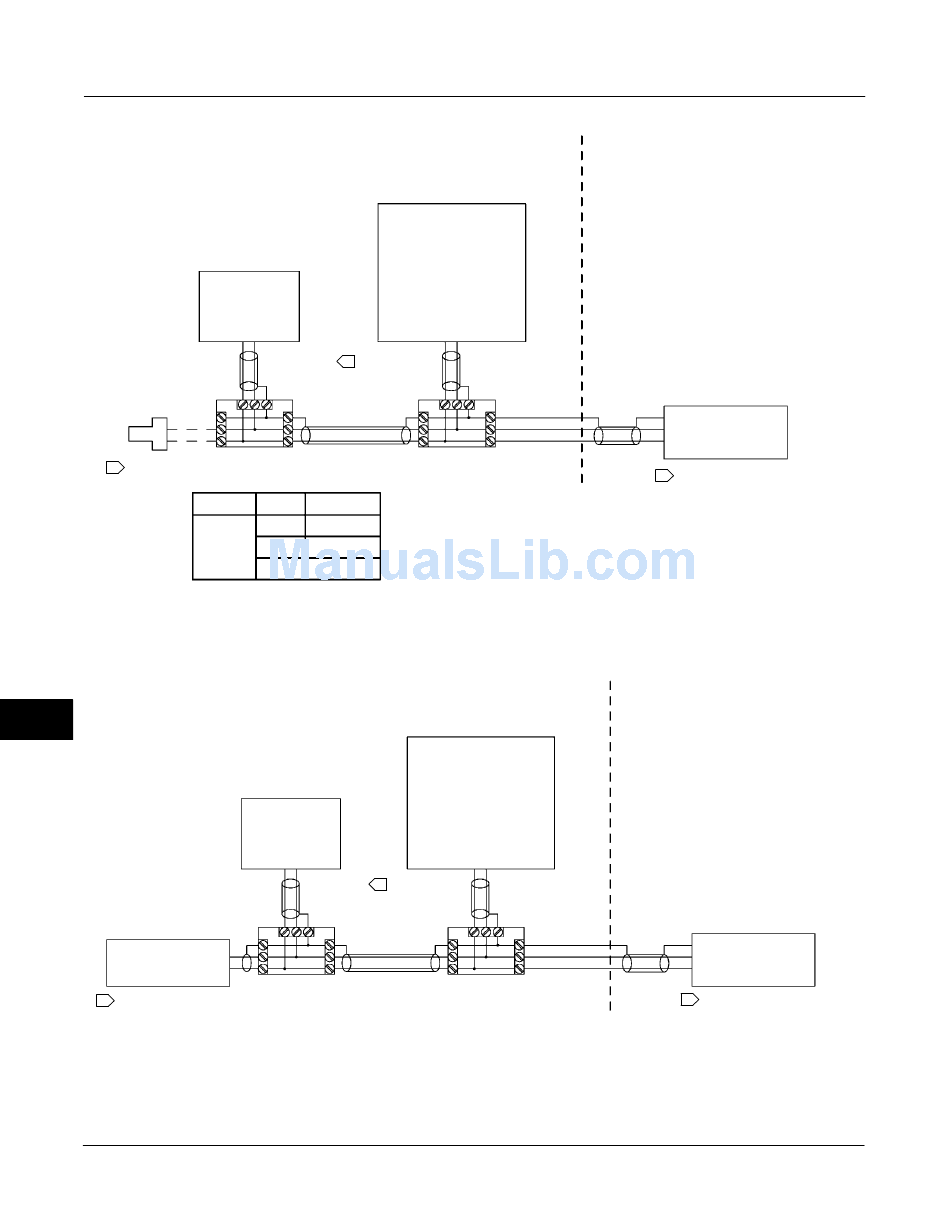

Figure B-4. FM Loop Schematics (see Notes in figure B-5)
HAZARDOUS LOCATION
DVC6200f
Vmax = 24 VDC
Imax = 380 Ma
Ci = 5 nF
Li = 0 mH
Pi = SEE CHART
ENTITY FIELDBUS LOOP
HAZARDOUS LOCATION
DVC6200f
Vmax = 17.5 VDC
Imax = 380 Ma
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
FISCO LOOP
NON-HAZARDOUS LOCATION
FM APPROVED
BARRIER
1
NOTE 1, 3, 4, 5, 6
NON-HAZARDOUS LOCATION
FM APPROVED
FISCO BARRIER
NOTE 2, 3, 4, 5, 6
1
November 2010
