HOUSING B—BACK VIEW
HOUSING A—BACK VIEW
(USED FOR ALL
(USED FOR GX ACTUATOR)
ACTUATORS EXCEPT GX)
8
DOUBLE-ACTING
DIRECT-ACTING
REVERSE-ACTING
GE40185 sheet 1 of 3

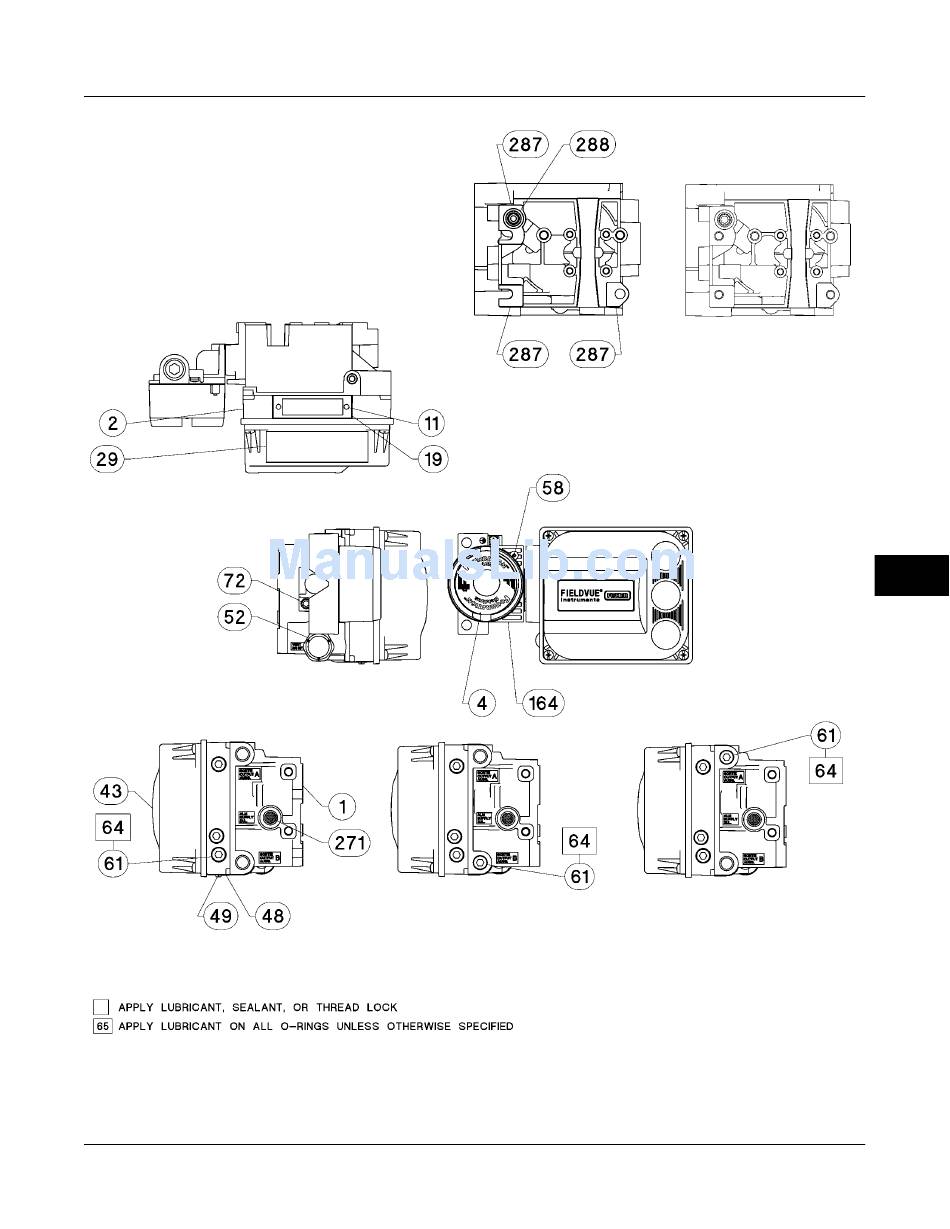

Figure 8-2. Housing Assembly (continued)
November 2010
235
