Process Picture

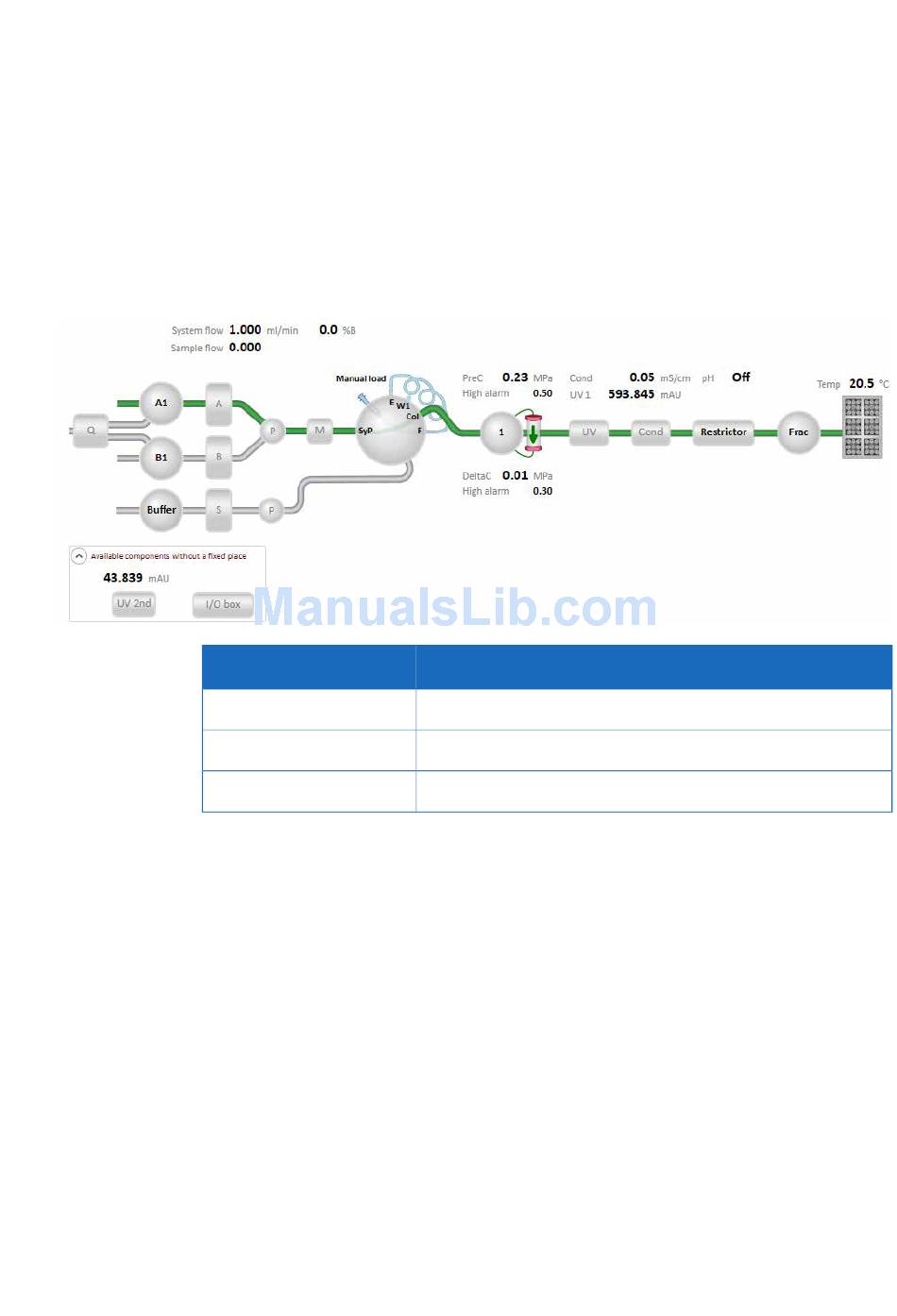

The Process Picture displays the current flow path, run parameters and real-time data
from monitors during a run. It also allows manual interactions with the system.
Tubing colors indicate flow path states, as shown in the following illustration and de-
scribed in the following table.
Modules without a fixed place in the system are shown in a panel below the process
picture (modules are called components in the process picture).
Color
Green
Grey
Blue
ÄKTA avant Operating Instructions 29101556 AB
Indication
Open flow path with flow.
Closed flow path or an open path without flow.
Syringe port in loop open for manual injection.
6 Run a method
6.4 Monitor the run
143
