1.
Wear the wrist strap on your wrist.
2.
Lock the wrist strap tight around your wrist to keep good contact with the skin.
3.
Insert the ESD wrist strap into the ESD socket on the switch chassis.
Make sure the ESD wrist strap is correctly grounded.

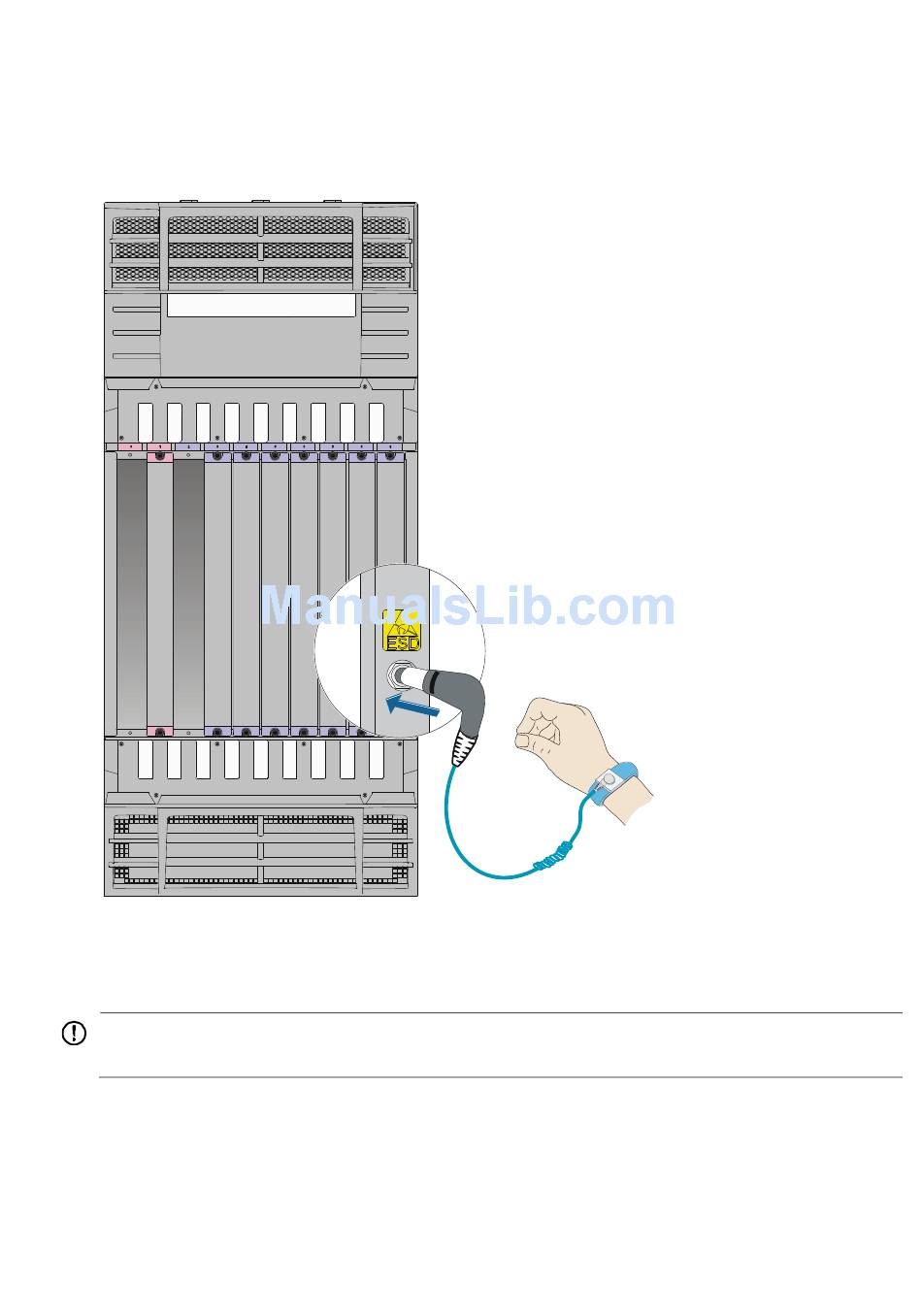

Figure 1 Attaching an ESD wrist strap to a 12508E

Switch moving

IMPORTANT:
For personal safety, at least four people are required to move a 12518E switch.
When you move an HP 12500E switch, follow these guidelines:
Remove all the external cables (including the power cords) before moving the chassis.
For personal safety, have several people to move the switch carefully.
When moving the switch, hold the handles at both sides of the chassis. Do not hold the plastic panel
of the chassis, the handle of the fan tray, the handle of the back cover of the chassis, or the air vents
2
