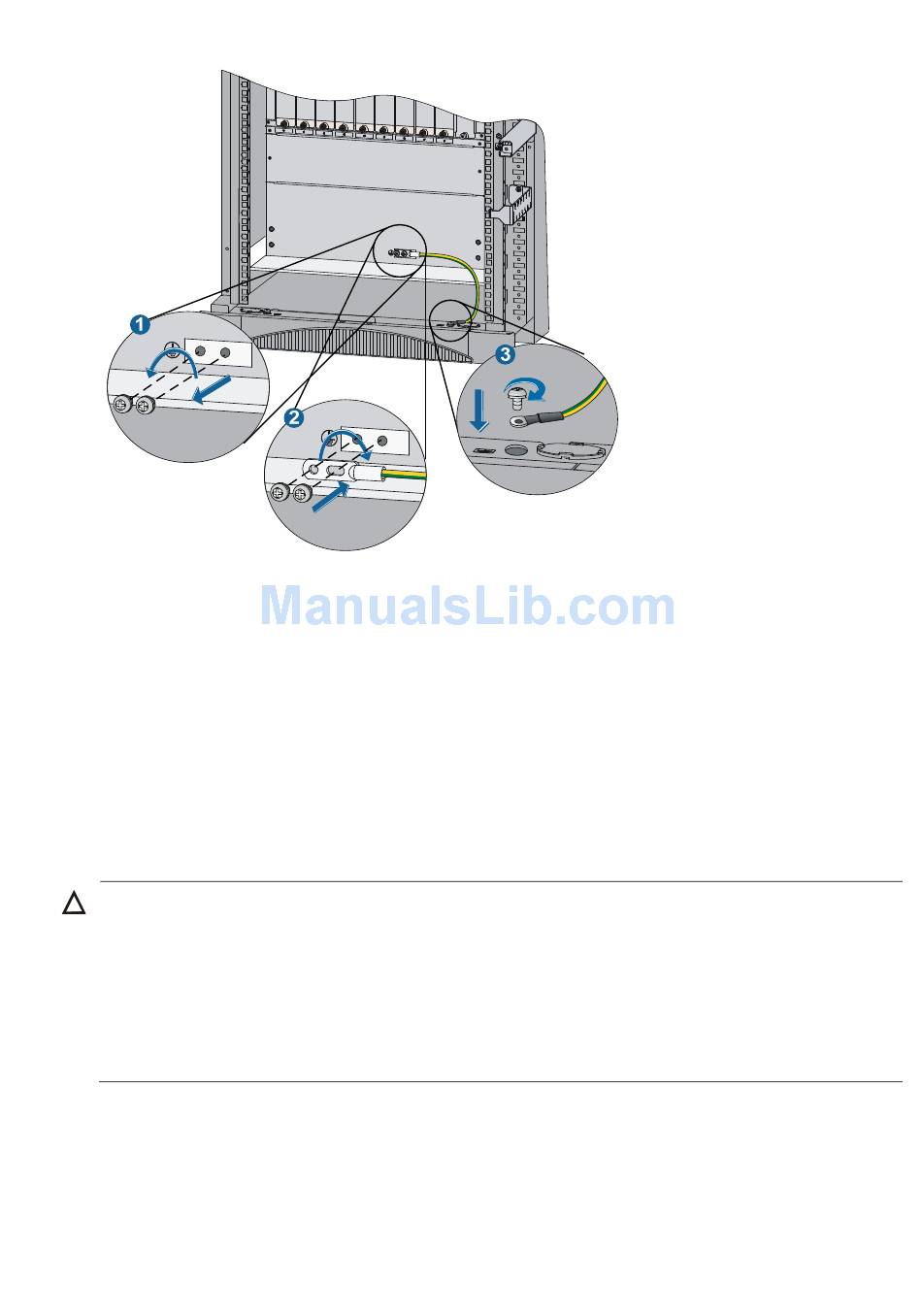

Figure 23 Connecting the grounding cable for the 12508E
If there is no grounding point on the rack, you can attach the grounding cable to a grounding strip. The
installation procedures are similar.

Installing a power supply

The 12500E switches supports both AC and DC power supply. You can select either AC or DC power
supplies as needed. For how to connect power cords, see
Installation preparation
CAUTION:
Hold power module by the bottom when moving it. Never attempt to lift a power module with its handle
because the handle is not designed to support weight. Doing so might result in bodily injury or damage
to the module.
When inserting or removing a power module, verify that the switch is sturdy. To prevent bodily injury,
avoid tipping the switch chassis.
When hot-plugging power modules, make sure the insertion interval is no less than 30 seconds.
To prepare for installation:
1.
Wear an ESD wrist strap and make sure it is correctly grounded.
2.
Remove the blank panel (if any) from the slot to be used.
"Connecting power
28
cords."
