Page 1: User Manual

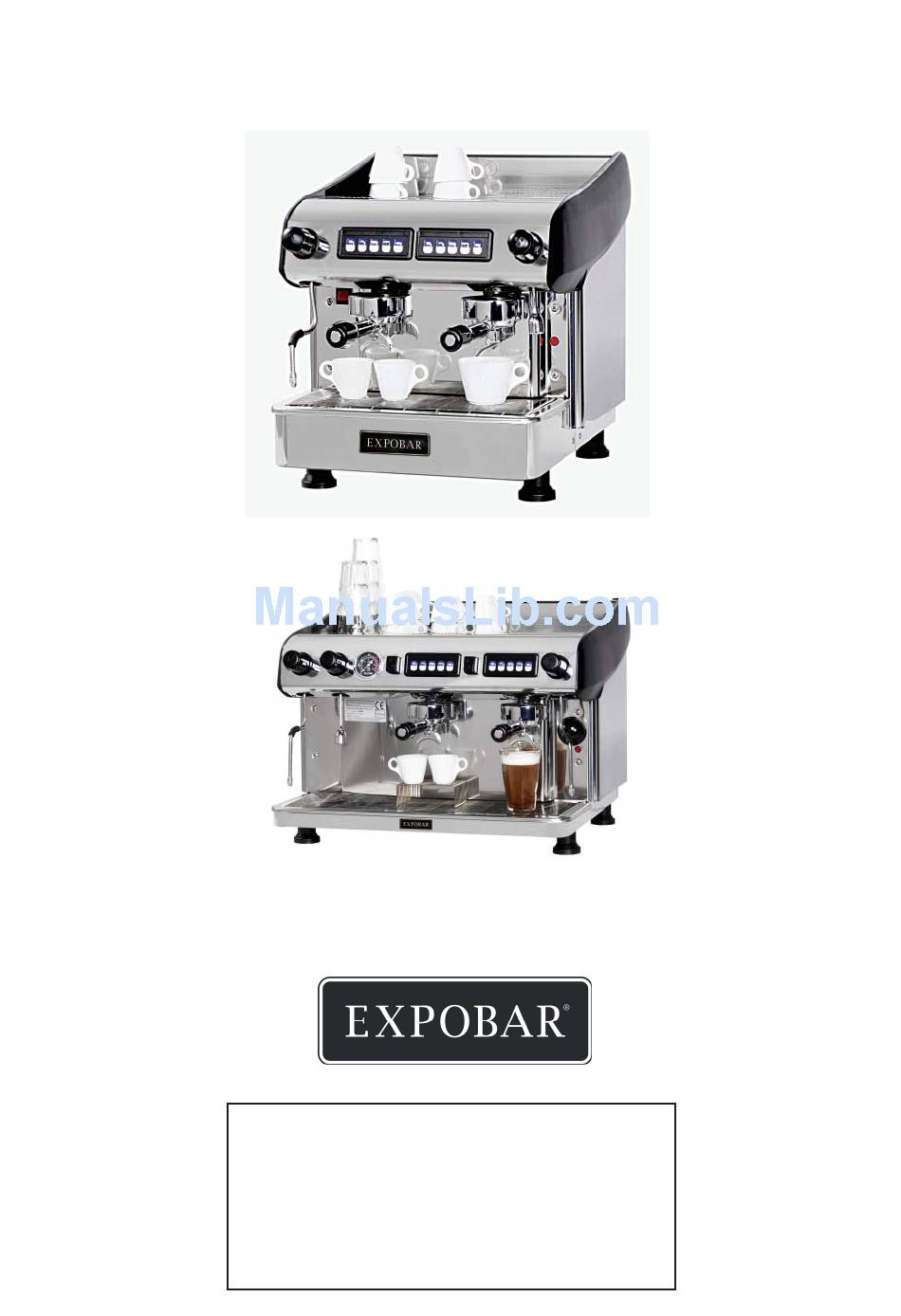

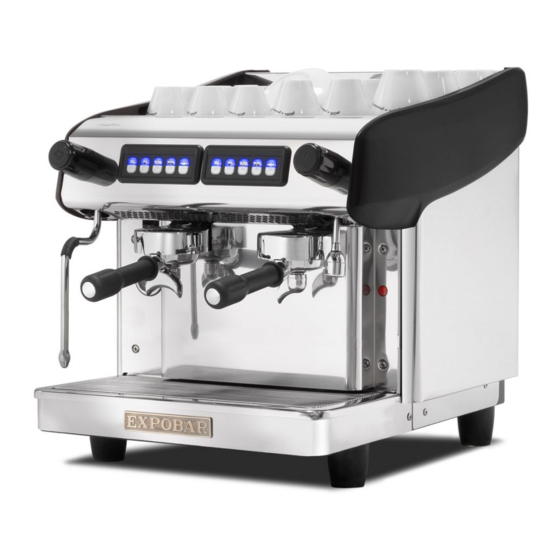

User manual Crema Compact, Digital Compact Digital 2 groups Digital 3 - 4 groups Your retail dealer U / GB ................Rev 090210 ................ -
Page 2: Table Of Contents
Contemplated use and warnings Technical description 5.1 Overview of the espresso coffee machines Crema Comp/Dig 5 5.2 Operating Principles 5.3 Operation for espresso machine model Crema Compact/Digital Safety precautions Installation - Location - Start up 7.1 Precautions for installation 7.2 Locations and connections 7.3 Start up... -
Page 3: Orientation
2. Orientation 1. Steam pipe 8. Main switch 2. Tap handgrip (steam) 9. Indication light 3. Manometer 10. Drip tray 4. Tap handgrip (hotwater) 11. Outlet (hotwater) 5. Brew switch (manual) 12. Handgrip for filterholder 6. Push-button pad 13. Rubber spacer ( for automatic cleaning). -
Page 4: Introduction
Introduction: Crema Compact and Digital Save; your manual and instructions: The manual is dedicated the user and/or an authorized personel. It will give you information how to use the machine in a correctly way, desirable maintenance and a good safety and security for the user. -
Page 5: Contemplated Use And Warnings
Long machine stoppages at temperatures as below 0ºC (zero degrees celsius) can cause damage or breakage to the piping boiler ; thus total emptying is recommended. 5. Technical description Crema Compact and Digital 5.1 Overview of the espresso coffee machines Crema Compact and Digital Automatic coffee machines Crema Compact and Crema Compact Take Away Espresso coffee machine with microprocessor controlled electronic measured dosage and digital programming from the push-button pad. -
Page 6: Operating Principles
Technical description Crema Compact and Digital 5.3 Operation for espresso machine model Crema Compact and Digital Water system diagram The water used for production of coffee does not come from the boiler. It is supplied directly from the water net, through the heat exchangers inside the boiler. -
Page 7: Installation - Location - Start Up
Installation - Location - Start up Crema Compact and Digital 7.1 Precautions for installation The manufacturer has obviously taken every possible precaution to guarantee user safety, but the different installation and/or transport conditions could give rise to uncontrollable or unpredictable conditions; so it is always necessary to assess hidden hazards and to consider the following suggestions: The packing elements (cardboard, cellophane,metal staples, etc.) can cut, wound or cause... -
Page 8: Locations And Connections
Installation - Location - Start up Crema Compact and Digital 7.2 Locations and connections Before installing the machine it is advisable to check the efficiency of the water mains (pos. 10 fig. 1), of the electrical connections (pos. 1 fig. 1) and of the gas mains ( for gas heated machines). An electric cut out (pos. -
Page 9: Install Decalcification Filter
7. Installation - Location - Start up Crema Compact and Digital Decalcification filter with automatic pre-rinsing. Shall always been mounted with the machine.(Shall been replaced every six month). Assemble filter cartridge Assemble filter holder. by turning the cartridge 1/4 lap. -
Page 10: Digital Automatic Version Dose Programming
Installation - Location - Start up Crema Compact and Digital 7.5 Digital automatic version dose programming: To program the doses: (fig. 2). Press button on push-button pad in approx. 8 seconds. fig.2.The Indicator lamps above the other buttons will be switched on. -
Page 11: Failure Message
Installation - Location - Start up Crema Compact and Digital 7.6 Failure message Finite brewtime for each group are 240 seconds. If you reach this time indicator lamp start blinking and the group will be blocked. If the flowmeter operate incorrect, the indic. lamp above the button you pressed will start blinking. -
Page 12: Automatic Cleaning Of The Groups
Installation - Location - Start up Crema Compact and Digital 7.7 Automatic cleaning of the groups WEEKLY CLEANING: To start the cleaning program: do as follow: Unhook the filterholder from the group (A fig. C). Put the 2 cup filter and the rubber pad in filterholder. -
Page 13: User Instructions
User instructions Crema Compact and Digital The following should be considered general lines of operating. It is quite essential to follow the manufacturer’s instructions and regulations as regards safety. Operating the machine is very simple. The checks that the operator obtains good coffee are: use suitably softened fresh mains water boiler water temperature between 85 °C and 105°C... -
Page 14: How To Make Espresso Coffee
User instructions Crema Compact and Digital 8.2 How to make espresso coffee Remove the filterholder from the group and dispose of the grounds by hitting the edge of the filterholder against the bar in the apposite drawer. Do not hit the filterholder against an unprotected surface; the filterholder’s seal could be demaged. -
Page 15: Daily Cleaning
Maintenance Crema Compact and Digital 9.1 Daily cleaning Preferably done in the evening: - CLEAN nozzles, gasket, filterholder and the bayonets in groups. Use a clean dishing brush or the angled cleaning brush. - RINSE 1 cup filter / 2 cup filter and filterholders with hot water. Use detergent intended for coffee machines or dishing machines to remove oil and dirt - Put the rubber pad in 2 cup filter. -
Page 16: Exchange Decalcification Filter
Maintenance Crema Compact and Digital Decalcification filter with automatic pre-rinsing. Shall always been mounted with the machine. (Shall been replaced every six month). Close tap. Fig.C.. Dismantle filter cartridge by turning the cartridge 1/4 lap. Assemble the new filter cartridge by turning the cartridge 1/4 lap. -
Page 17: Faults And Routine Repairs
10. Faults and routine repairs Crema Compact and Digital Identifying problems: - Always ensure that there is enough ground coffee for at least one dose in the grinder-doser´s reservoir. - If the coffee drops are to slowly then grinding is propably too fine. Vice-versa, if it drops to fast, the grinding is too coarse. - Page 18 10. Faults and routine repairs Crema Compact and Digital Fault: Problem: The water level control provides water when it should not. Cause 1: The level sensor/control centre electrical connection is broken. Cures: Repair. Cause 2: The frame earthing/control centre electrical connection is broken.
- Page 19 10. Faults and routine repairs Crema Compact and Digital Fault: Problem: Machine is only brewing while the heating element is charged. Cause 1: Neutral conductor is missing. (electric delivery). Cures: Check and cure. Problem: Regulary dosage when machine is brewing is faulty. (only version with dosage).
-
Page 20: Shut-Down And Dismantling
10. Faults and routine repairs Crema Compact and Digital Fault: Problem: Leakage between group and filterholder when machine is brewing. Cause 1: Brew groups filter spring are worn out. Cures: Replace it. Cause 2: 1 cup filter/2 cup filter is damaged. -
Page 21: Technical Data
12. Technical Data Crema Compact and Crema Digital 2-4 groups Crema Compact Crema Digital2 group Crema Digital 3 group Crema Digital 4 group Model Group Tankage (L) Voltage V-Hz Capacity (W) Current consumption(A) Crema Compact 240V1N - 50/60Hz 2670 11,1... - Page 22 Crema Compact Crema Digital FOR SERVICE Please contact your retail dealer Your retail dealer ................................................CREM International AB addressStreetBox 960, 671 29 ARVIKA, placecountry-regionSverige +46 (0)570-477 00, Fax: +46 (0)570-47719 E-post: info.se@creminternational.com www.creminternational.com Art. nr. 170428...
