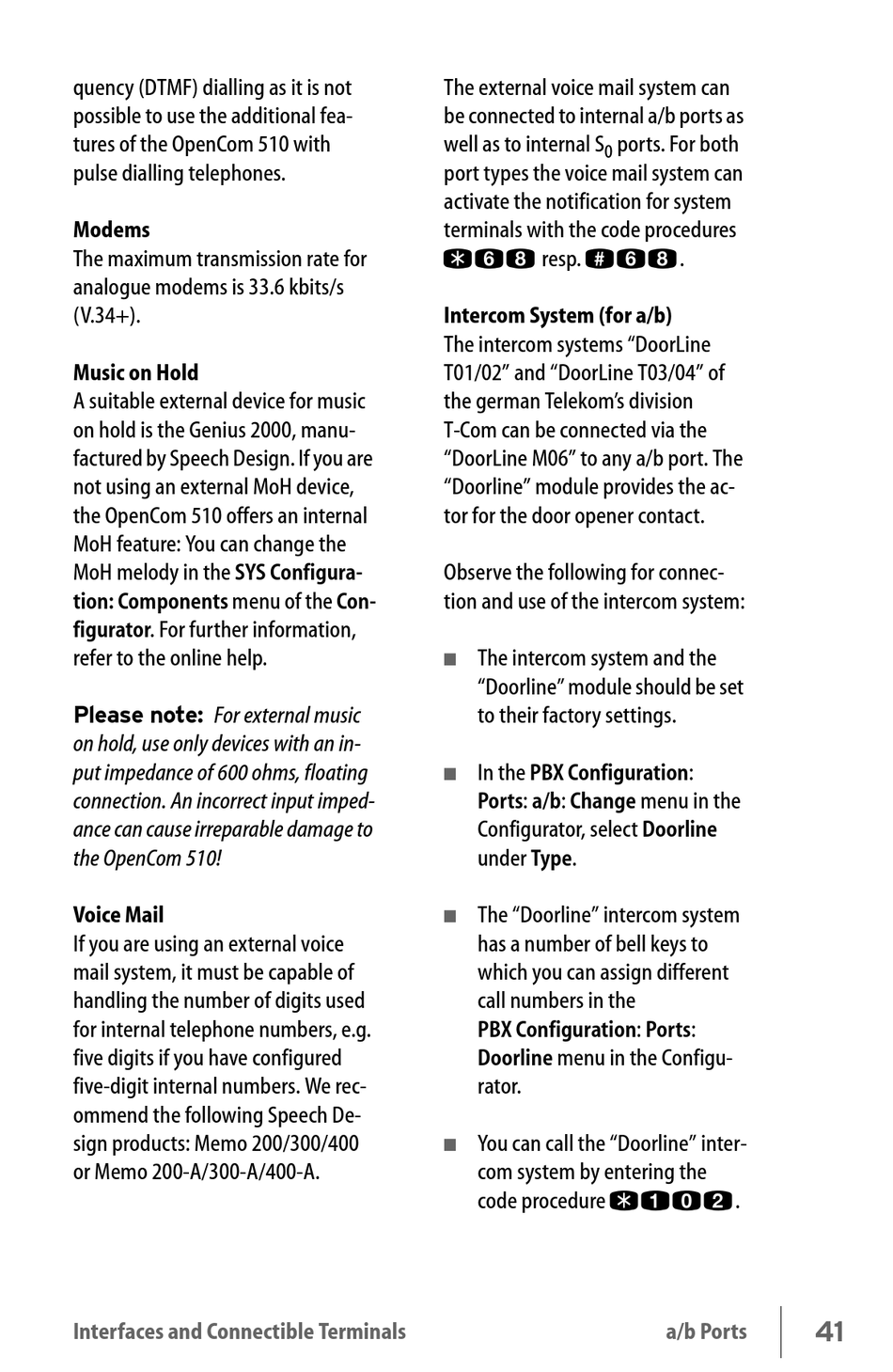

quency (DTMF) dialling as it is not
possible to use the additional fea-
tures of the OpenCom 510 with
pulse dialling telephones.
Modems
The maximum transmission rate for
analogue modems is 33.6 kbits/s
(V.34+).
Music on Hold
A suitable external device for music
on hold is the Genius 2000, manu-
factured by Speech Design. If you are
not using an external MoH device,
the OpenCom 510 offers an internal
MoH feature: You can change the
MoH melody in the SYS Configura-
tion: Components menu of the Con-
figurator. For further information,
refer to the online help.
Please note: For external music
on hold, use only devices with an in-
put impedance of 600 ohms, floating
connection. An incorrect input imped-
ance can cause irreparable damage to
the OpenCom 510!
Voice Mail
If you are using an external voice
mail system, it must be capable of
handling the number of digits used
for internal telephone numbers, e.g.
five digits if you have configured
five-digit internal numbers. We rec-
ommend the following Speech De-
sign products: Memo 200/300/400
or Memo 200-A/300-A/400-A.
Interfaces and Connectible Terminals
The external voice mail system can
be connected to internal a/b ports as
well as to internal S
0
port types the voice mail system can
activate the notification for system
terminals with the code procedures
* 6 8 # 6 8
resp.
Intercom System (for a/b)
The intercom systems "DoorLine
T01/02" and "DoorLine T03/04" of
the german Telekom's division
T-Com can be connected via the
"DoorLine M06" to any a/b port. The
"Doorline" module provides the ac-
tor for the door opener contact.
Observe the following for connec-
tion and use of the intercom system:
The intercom system and the
■
"Doorline" module should be set
to their factory settings.
In the PBX Configuration:
■
Ports: a/b: Change menu in the
Configurator, select Doorline
under Type.
The "Doorline" intercom system
■
has a number of bell keys to
which you can assign different
call numbers in the
PBX Configuration: Ports:
Doorline menu in the Configu-
rator.
You can call the "Doorline" inter-
■
com system by entering the
* 1 0 2
code procedure
ports. For both
.
.
a/b Ports
