Contact your DeTeWe distributor or
local retailer if you want to purchase
one of these cards.
In cascaded configurations, mas-
■
ter and slave systems are con-
nected via the PCM port (RJ45
socket).
In cascaded OpenCom 510 con-
■
figurations, the slave system re-
quires an MC+1-3 central con-
trol module of its own.
In cascaded OpenCom 510 con-
■
figurations, a CompactFlash card
must be installed in the master
system; it is not necessary to in-
stall one of these cards in the
slave system.
In cascaded configurations, the
■
central control modules use the
PCMV interface to exchange sys-
tem signals. The PCMV interface
provides the system clock sig-
nals, access to the 16-Mbit/s
PCM highway, and a 2-Mbit/s
LAN.
In cascaded configurations, the
■
S1 and S2 DIP switches are used
LED 1: Flashing yellow
LED 2: Constantly green
58
MC+1-3
Flashing green/yellow
for frame coding (PBX Cascading
starting on page 98).
The Ethernet port (10/100
■
Mbits/s) can be used to connect
the OpenCom 510 to the LAN.
The V.24-1 interface can be used
■
to connect additional apparatus,
e.g. a computer for analysing
call charges.
For information on the V.24 in-
terface pin assignment, refer to
COM Port starting on page 44.
Indicators
There are four LEDs on the front of
the MC+1-3 central control module.
MC+1-3
1
2

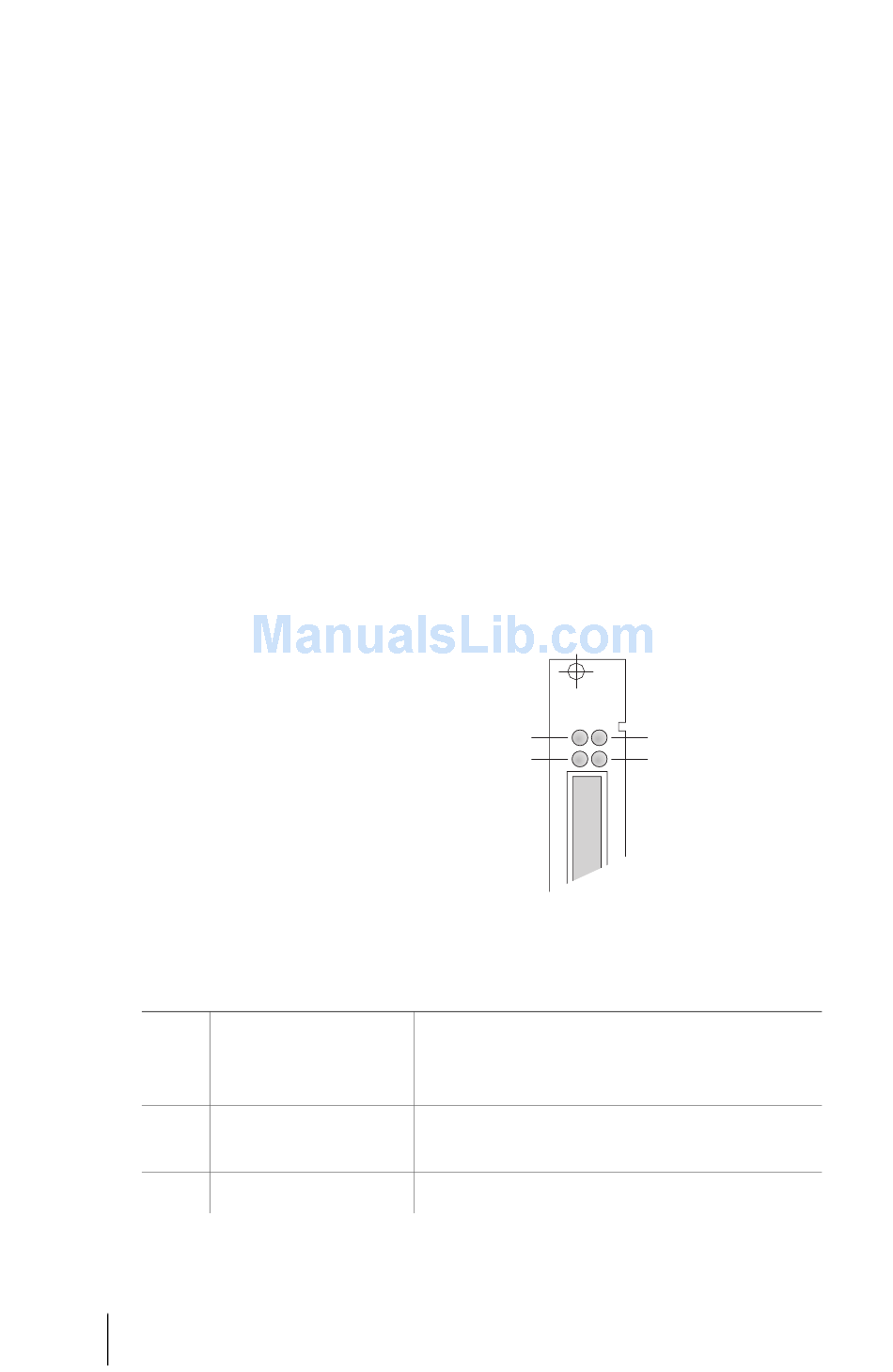

MC+1-3: LEDs
The LEDs indicate the following:
New software is being loaded onto an interface card
(the corresponding interface card's indicator will be
constantly red).
The central control module is operational (flickering
is normal).
The system software (firmware) is starting up.
3
4
Modules
