Installing Modules

A
OpenCom 510: 1-12 frame slots

Slots

The OpenCom 510 1-12 frame can
house up to:
2 power supply units
■
1 control module
■
12 interface cards (trunk or sub-
■
scriber modules) split into
2 separate groups.
22
Installing Modules
0
C (1-6)
B
D (7-12)

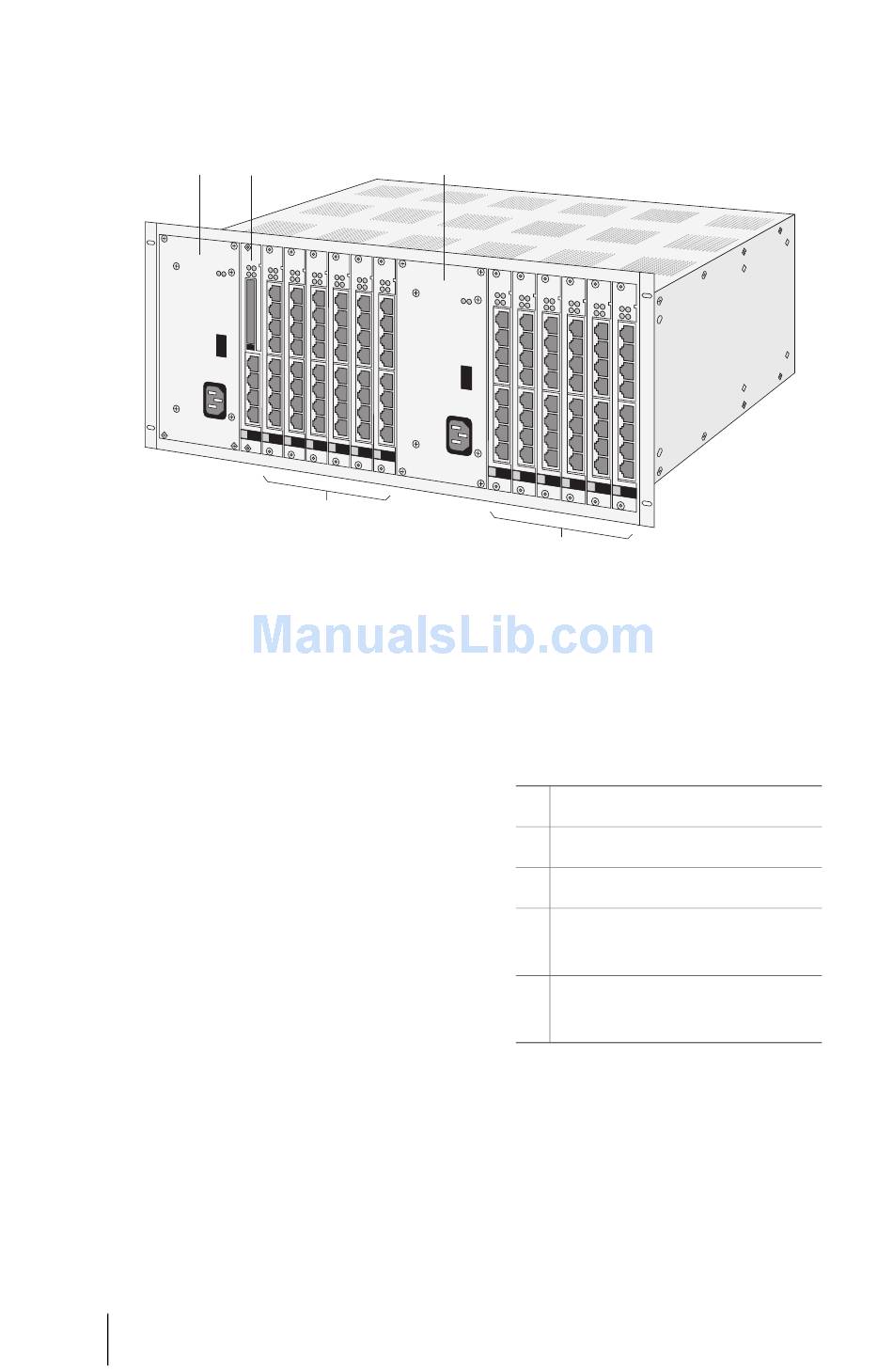

The following slots are provided for
installing these modules:
Legend
A Slot for group 1 power supply unit
B Slot for group 2 power supply unit
0 Slot for central control module
C Slots for group 1 interface cards
(slots 1 - 6)
D Slots for group 2 interface cards
(slots 7 - 12)
Each of the two groups (1 or 2, or C
and D, respectively, in the illustra-
tion) requires its own power supply
unit. Power for the control module is
always supplied by the group 1
power supply unit. The group 1
