All three protocol layers can be indi-
vidually configured as master or
slave for each S interface.
0

MS+UPN1-8

Field of Application
The MS+UPN1-8 interface card pro-
vides eight U interfaces for con-
pn
necting system terminals; however,
it is not possible to connect DECT
base stations.
The MS+UPN1-8 interface card can
be installed in any of the slots (1 to
12) of the OpenCom 510 (see Slots
starting on page 22).
Technical Information
The MS+UPN1-8 interface card
■
can also be installed in a slave
system.
No settings need to be made on
■
the MS+UPN1-8 interface card.
The MS+UPN1-8 interface card
■
runs on software acquired from
the system. After the card has
been installed it will automati-
cally load the required software.
Modules
The S interfaces can be configured
0
as DSS1-PP, DSS1-PMP or Q.SIG lines.
Pin Assignment
RJ45 Connector Pin Assignment for
the MS+UPN1-8 Interface
Pin Number Assignment
1 Not used
2 Not used
3 Not used
4 U
pn
5 U
pn
6 Not used
7 Not used
8 Not used

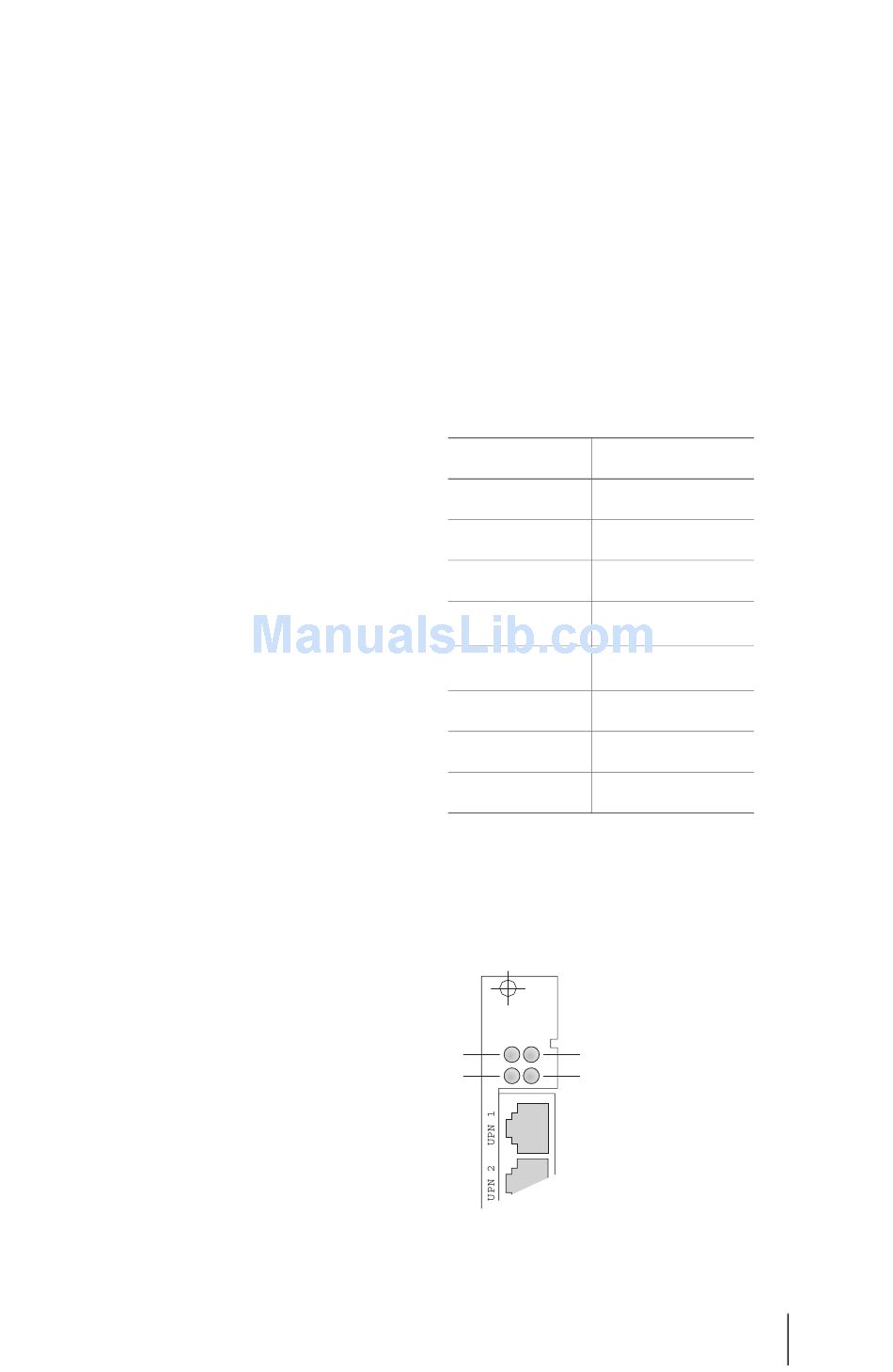

Indicators
There are four LEDs on the front of
the MS+UPN1-8 interface card.
MS+UPN1-8
1 3
2 4
MS+UPN1-8
a
b
MS+UPN1-8
65
