NOTE
Refer to
Figure 22-2
2. Insert newly crimped pins and wires (items 1 & 2) into the appropriate connector housing (item 4)
location as specified by the installation specific wiring diagram.
3. Place thermocouple (item 1) body onto backshell (item 5) boss. Upon placing the thermocouple
(item 1) body, orient it such that the wires exit downward.
4. Attach thermocouple (item 1) tightly to backshell (item 5) using screw (item 3).
5. Attach cover (item 6) to backshell (item 5) using screws (item 7).

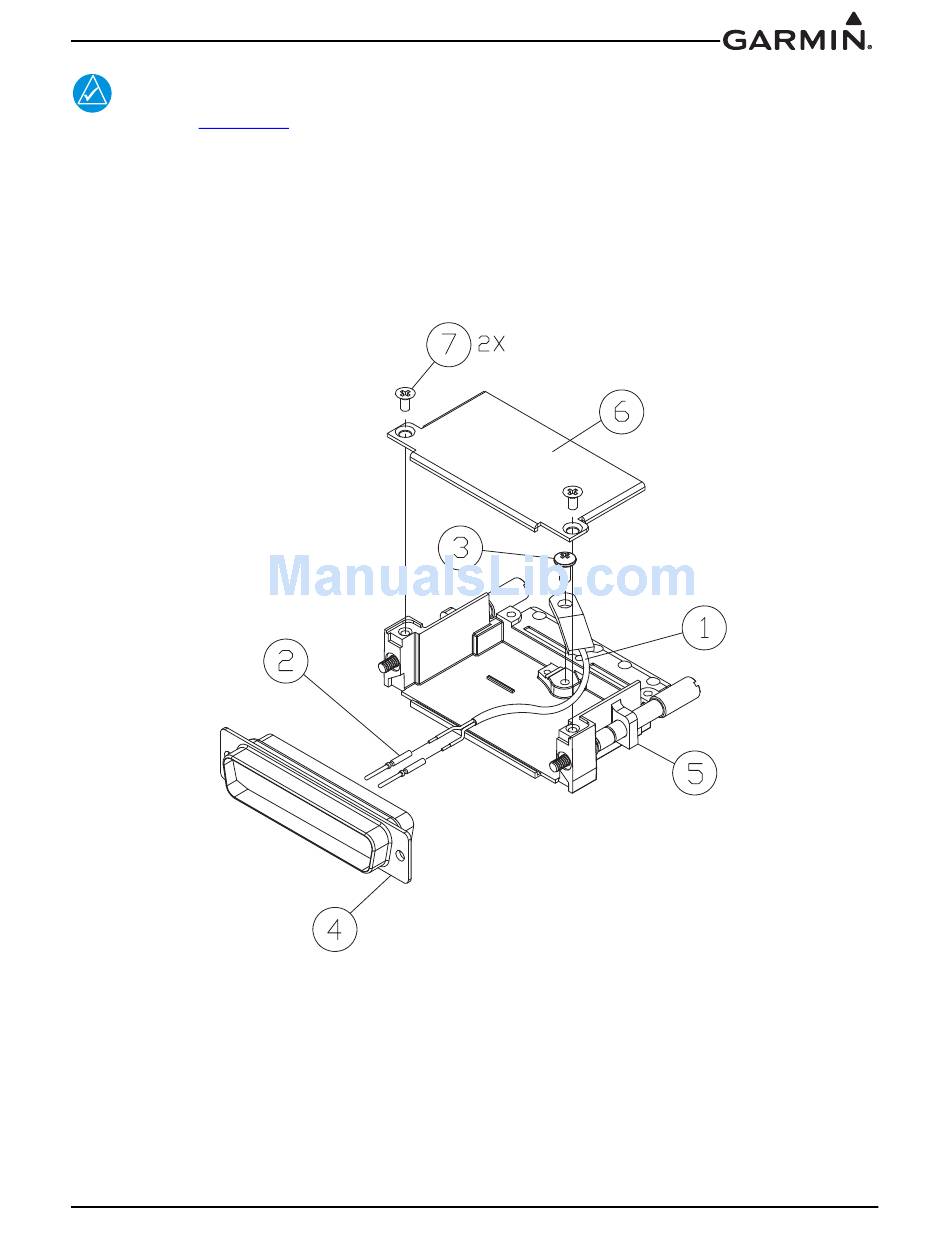

Figure 22-2 Jackscrew Backshell Thermocouple Installation
190-01115-01
Rev. AA
for all item numbers in the following steps 2-5.
G3X/G3X Touch Installation Manual - Connector Installation Instructions
Page 22-2
