5
CONNECTION AND INSTALLATION

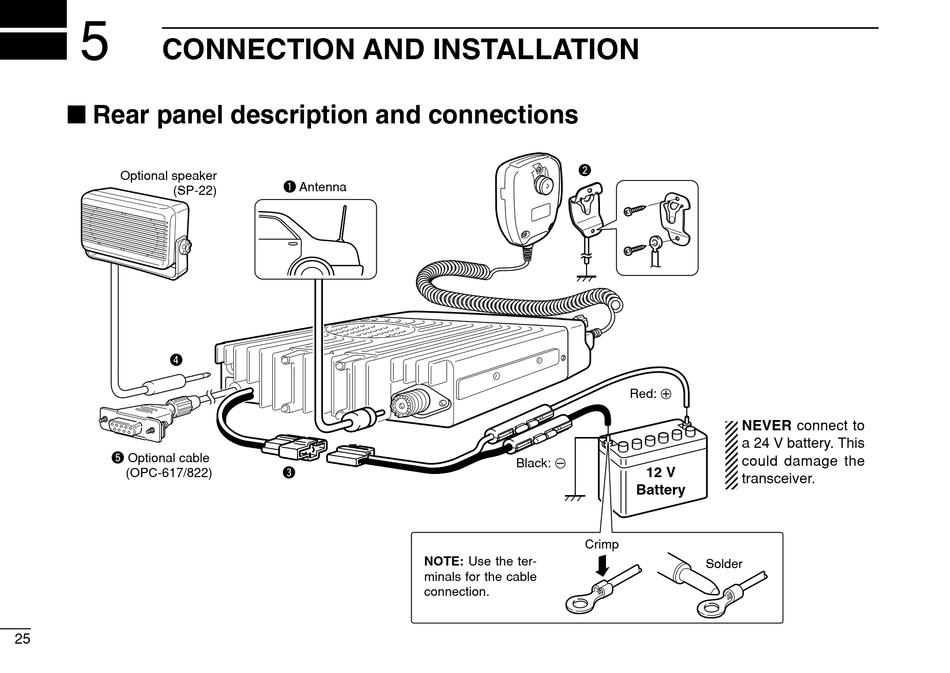

I Rear panel description and connections
Optional speaker
(SP-22)
r
t Optional cable
(OPC-617/822)
25
q Antenna
e
NOTE: Use the ter-
minals for the cable
connection.
w
Red: +
Black: _
12 V
Battery
Crimp
NEVER connect to
a 24 V battery. This
could damage the
transceiver.
Solder
