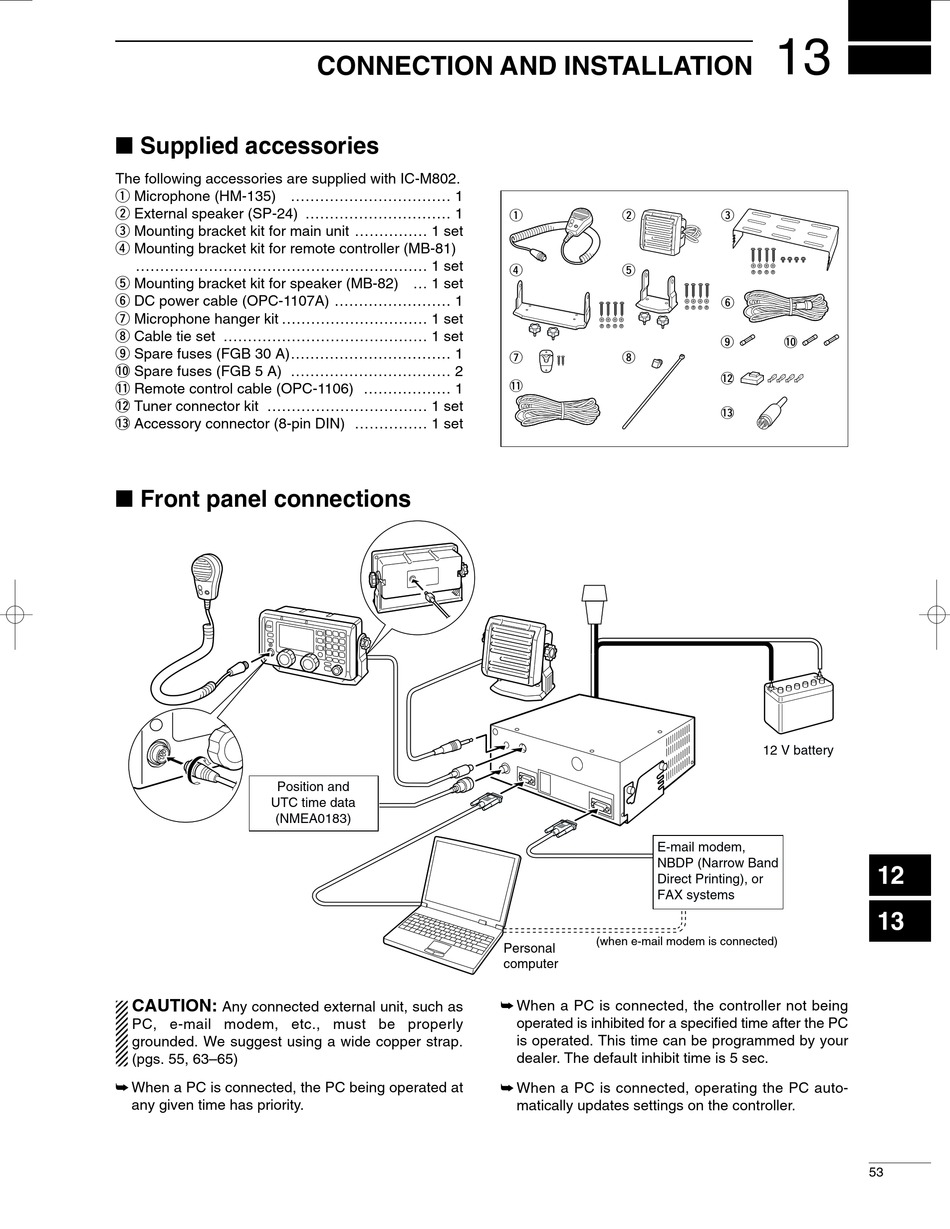

I Supplied accessories

The following accessories are supplied with IC-M802.
q Microphone (HM-135) ................................. 1
w External speaker (SP-24) .............................. 1
e Mounting bracket kit for main unit ............... 1 set
r Mounting bracket kit for remote controller (MB-81)
............................................................ 1 set
t Mounting bracket kit for speaker (MB-82) ... 1 set
y DC power cable (OPC-1107A) ........................ 1
u Microphone hanger kit .............................. 1 set
i Cable tie set .......................................... 1 set
o Spare fuses (FGB 30 A)................................. 1
!0 Spare fuses (FGB 5 A) ................................. 2
!1 Remote control cable (OPC-1106) .................. 1
!2 Tuner connector kit ................................. 1 set
!3 Accessory connector (8-pin DIN) ............... 1 set

I Front panel connections

Position and
UTC time data
(NMEA0183)
CAUTION:
Any connected external unit, such as
PC, e-mail modem, etc., must be properly
grounded. We suggest using a wide copper strap.
(pgs. 55, 63–65)
➥ When a PC is connected, the PC being operated at
any given time has priority.

CONNECTION AND INSTALLATION

q w
r t
u i
!1
E-mail modem,
NBDP (Narrow Band
Direct Printing), or
FAX systems
(when e-mail modem is connected)
Personal
computer
➥ When a PC is connected, the controller not being
operated is inhibited for a specified time after the PC
is operated. This time can be programmed by your
dealer. The default inhibit time is 5 sec.
➥ When a PC is connected, operating the PC auto-
matically updates settings on the controller.
13
e
y
o !0
!2
!3
12 V battery
