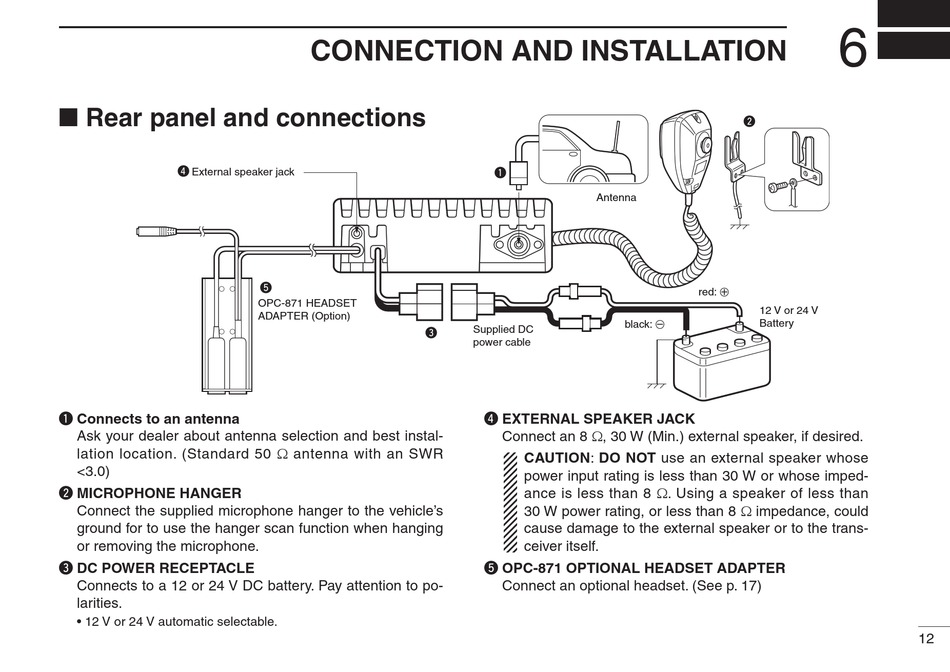

■ Rear panel and connections

r External speaker jack
q Connects to an antenna
Ask your dealer about antenna selection and best instal-
lation location. (Standard 50 Ω antenna with an SWR
<3.0)
w MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle's
ground for to use the hanger scan function when hanging
or removing the microphone.
e DC POWER RECEPTACLE
Connects to a 12 or 24 V DC battery. Pay attention to po-
larities.
• 12 V or 24 V automatic selectable.

CONNECTION AND INSTALLATION

t
OPC-871 HEADSET
ADAPTER (Option)
e
q
Antenna
black: _
Supplied DC
power cable
r EXTERNAL SPEAKER JACK
Connect an 8 Ω, 30 W (Min.) external speaker, if desired.
CAUTION: DO NOT use an external speaker whose
power input rating is less than 30 W or whose imped-
ance is less than 8 Ω. Using a speaker of less than
30 W power rating, or less than 8 Ω impedance, could
cause damage to the external speaker or to the trans-
ceiver itself.
t OPC-871 OPTIONAL HEADSET ADAPTER
Connect an optional headset. (See p. 17)
6
w
red: +
12 V or 24 V
Battery
12
