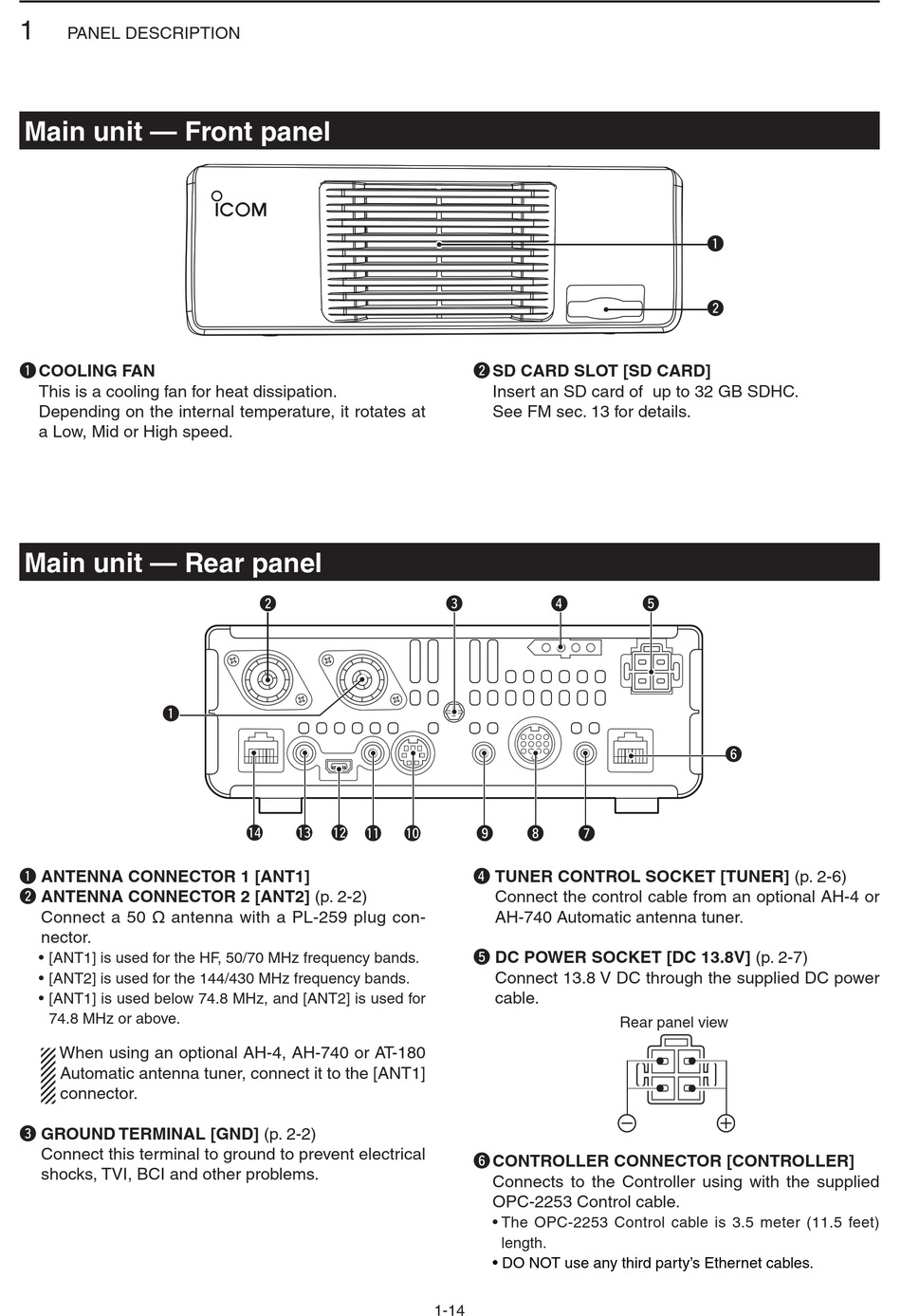

PANEL DESCRIPTION
Main unit — Front panel
q COOLING FAN
This is a cooling fan for heat dissipation.
Depending on the internal temperature, it rotates at
a Low, Mid or High speed.
Main unit — Rear panel
q
q ANTENNA CONNECTOR 1 [ANT1]
w ANTENNA CONNECTOR 2 [ANT2] (p. 2-2)
Connect a 50 ø antenna with a PL-259 plug con-
nector.
• [ANT1] is used for the HF, 50/70 MHz frequency bands.
• [ANT2] is used for the 144/430 MHz frequency bands.
• [ANT1] is used below 74.8 MHz, and [ANT2] is used for
74.8 MHz or above.
When using an optional AH-4, AH-740 or AT-180
Automatic antenna tuner, connect it to the [ANT1]
connector.
e GROUND TERMINAL [GND] (p. 2-2)
Connect this terminal to ground to prevent electrical
shocks, TVI, BCI and other problems.
w
!4
!3
!2
!1
!0
w SD CARD SLOT [SD CARD]
Insert an SD card of up to 32 GB SDHC.
See FM sec. 13 for details.
e
r
o
i
u
r TUNER CONTROL SOCKET [TUNER] (p. 2-6)
Connect the control cable from an optional AH-4 or
AH-740 Automatic antenna tuner.
t DC POWER SOCKET [DC 13.8V] (p. 2-7)
Connect 13.8 V DC through the supplied DC power
cable.
y CONTROLLER CONNECTOR [CONTROLLER]
Connects to the Controller using with the supplied
OPC-2253 Control cable.
• The OPC-2253 Control cable is 3.5 meter (11.5 feet)
length.
• DO NOT use any third party's Ethernet cables.
1-14
q
w
t
y
Rear panel view
