PANEL DESCRIPTION

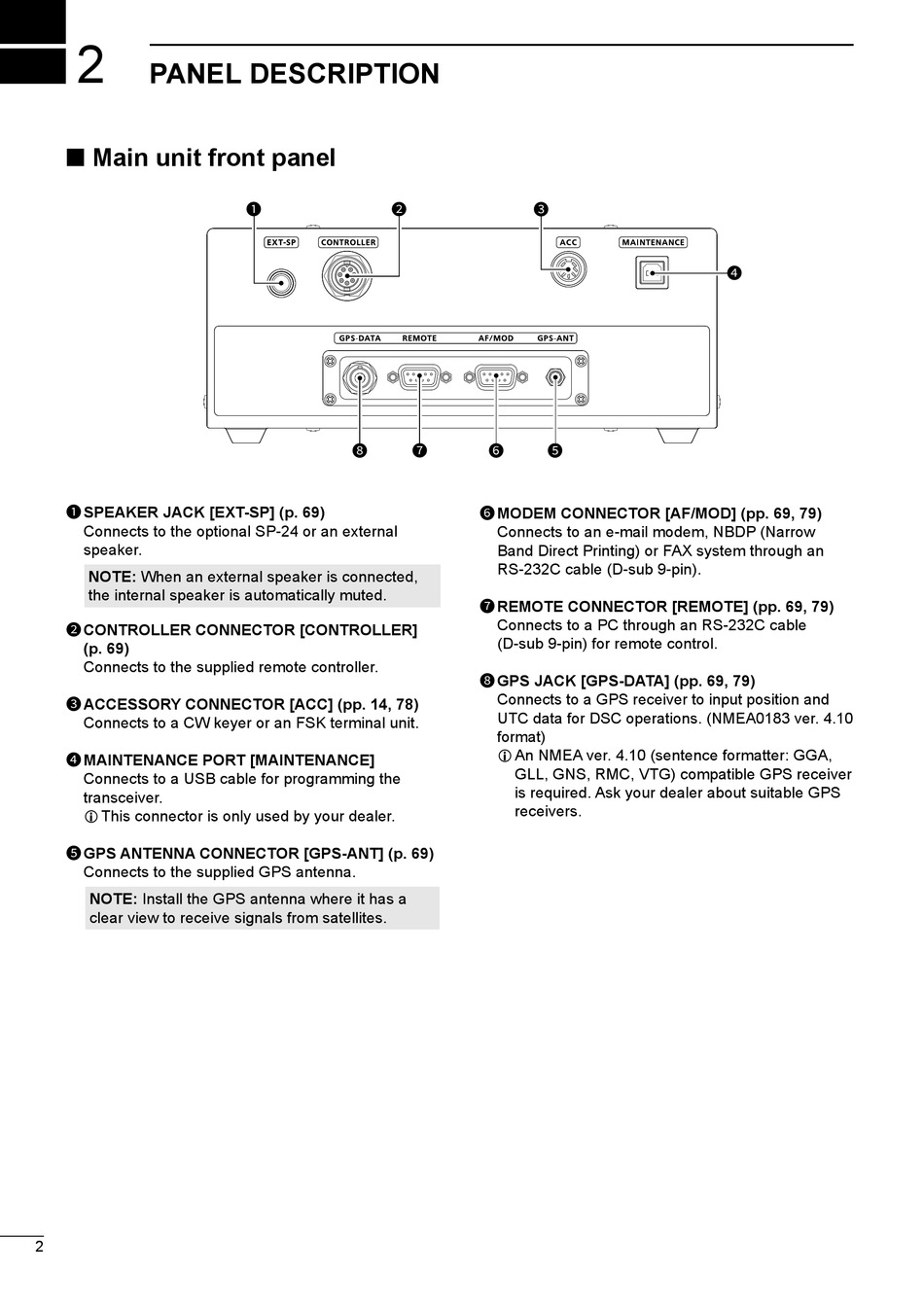

■ Main unit front panel

1 SPEAKER JACK [EXT-SP] (p. 69)
Connects to the optional SP-24 or an external
speaker.
NOTE: When an external speaker is connected,
the internal speaker is automatically muted.
2 CONTROLLER CONNECTOR [CONTROLLER]
(p. 69)
Connects to the supplied remote controller.
3 ACCESSORY CONNECTOR [ACC] (pp. 14, 78)
Connects to a CW keyer or an FSK terminal unit.
4 MAINTENANCE PORT [MAINTENANCE]
Connects to a USB cable for programming the
transceiver.
L This connector is only used by your dealer.
5 GPS ANTENNA CONNECTOR [GPS-ANT] (p. 69)
Connects to the supplied GPS antenna.
NOTE: Install the GPS antenna where it has a
clear view to receive signals from satellites.
2
1 2
8 7
3
6 5
6 MODEM CONNECTOR [AF/MOD] (pp. 69, 79)
Connects to an e-mail modem, NBDP (Narrow
Band Direct Printing) or FAX system through an
RS-232C cable (D-sub 9-pin).
7 REMOTE CONNECTOR [REMOTE] (pp. 69, 79)
Connects to a PC through an RS-232C cable
(D-sub 9-pin) for remote control.
8 GPS JACK [GPS-DATA] (pp. 69, 79)
Connects to a GPS receiver to input position and
UTC data for DSC operations. (NMEA0183 ver. 4.10
format)
L An NMEA ver. 4.10 (sentence formatter: GGA,
GLL, GNS, RMC, VTG) compatible GPS receiver
is required. Ask your dealer about suitable GPS
receivers.
