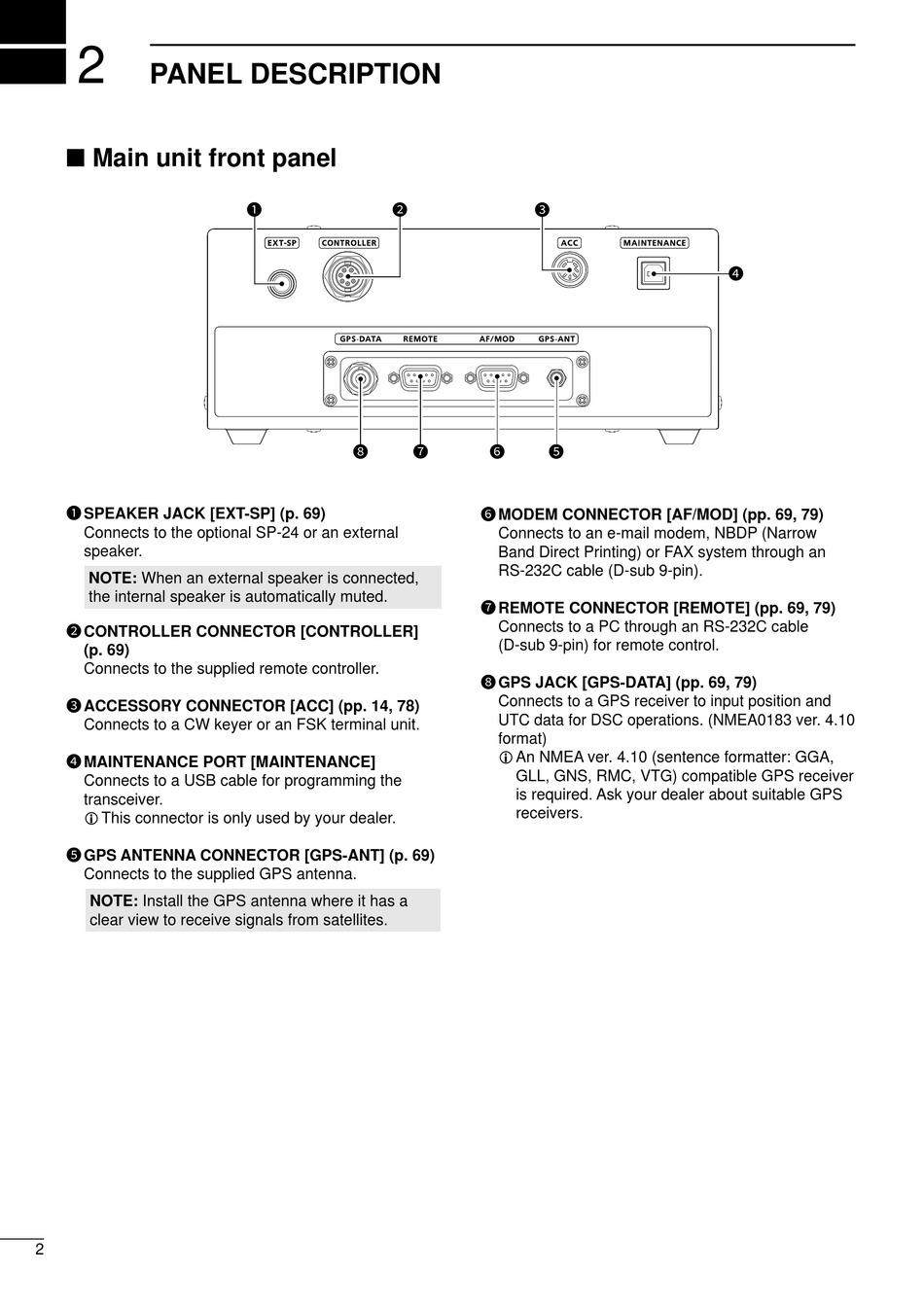

PANEL DESCRIPTION

I Main unit front panel
1 SPEAKER J ACK [EXT-SP] (p. 69)
Connects to the optional SP-24 or an external
speaker�
NOTE: When an external speaker is connected,
the internal speaker is automatically muted�
2 CONTROLLER CONNECTOR [CONTROLLER]
(p. 69)
Connects to the supplied remote controller�
3 ACCESSORY CONNECTOR [ACC] (pp. 14, 78)
Connects to a CW keyer or an FSK terminal unit�
4 MAINTENANCE PORT [MAINTENANCE]
Connects to a USB cable for programming the
transceiver�
L This connector is only used by your dealer�
5 GPS ANTENNA CONNECTOR [GPS-ANT] (p. 69)
Connects to the supplied GPS antenna�
NOTE: Install the GPS antenna where it has a
clear view to receive signals from satellites�
2
1 2
8 7
3
6 5
6 MODEM CONNECTOR [AF/MOD] (pp. 69, 79)
Connects to an e-mail modem, NBDP (Narrow
Band Direct Printing) or FAX system through an
RS-232C cable (D-sub 9-pin)�
7 REMOTE CONNECTOR [REMOTE] (pp. 69, 79)
Connects to a PC through an RS-232C cable
(D-sub 9-pin) for remote control�
8 GPS J ACK [GPS-DATA] (pp. 69, 79)
Connects to a GPS receiver to input position and
UTC data for DSC operations� (NMEA0183 ver� 4�10
format)
L An NMEA ver� 4�10 (sentence formatter: GGA,
GLL, GNS, RMC, VTG) compatible GPS receiver
is required� Ask your dealer about suitable GPS
receivers�
