A GARP participant starts a Leave timer when it receives a Leave message for an attribute value. If the
GARP participant receives no Join message for the attribute value before the timer expires, it deregisters
the attribute value.
LeaveAll timer
4.
When a GARP application is enabled, a LeaveAll timer starts. The GARP participant sends a LeaveAll
message when the timer expires. Then, the LeaveAll timer restarts to begin a new cycle. The LeaveAll
timer and all other GARP timers also restart when the GARP participant receives a LeaveAll message.
NOTE:
Because a LeaveAll message deregisters all attributes in the entire network, do not set the LeaveAll timer
too short. At a minimum, the LeaveAll timer must be at least longer than the Leave timer.
On a GARP-enabled network, a switch can send LeaveAll messages at the interval set by its LeaveAll
timer or the LeaveAll timer of another device on the network, whichever is smaller. This is because each
time a switch on the network receives a LeaveAll message, it resets its LeaveAll timer.
GARP message format

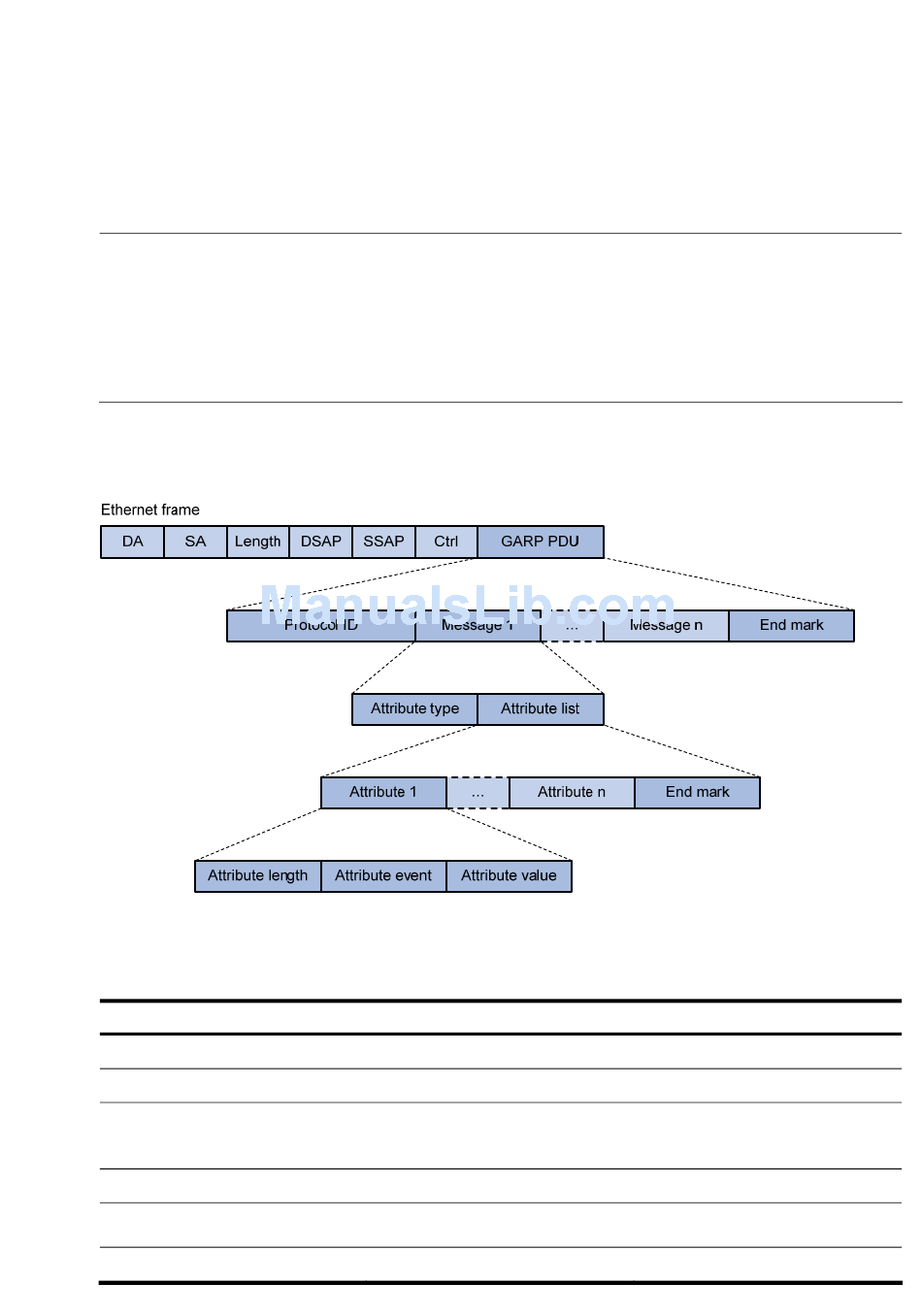

Figure 39 GARP message format
As shown in
Table 18 Descriptions of the GARP message fields
Field
GARP PDU
Protocol ID
Message
End mark
Attribute type
Attribute list
Figure
39, GARP messages use the IEEE 802.3 Ethernet frame format.
Description
GARP Protocol Data Unit
Protocol identifier for GARP PDU
One or multiple messages, each of
which contains an attribute type
and an attribute list
Indicates the end of a GARP PDU
Defined by the GARP application
Contains one or multiple attributes
127
Value
––
0x0001
––
0x00
0x01 for GVRP, which indicates
the VLAN ID attribute
––
