KONTRON

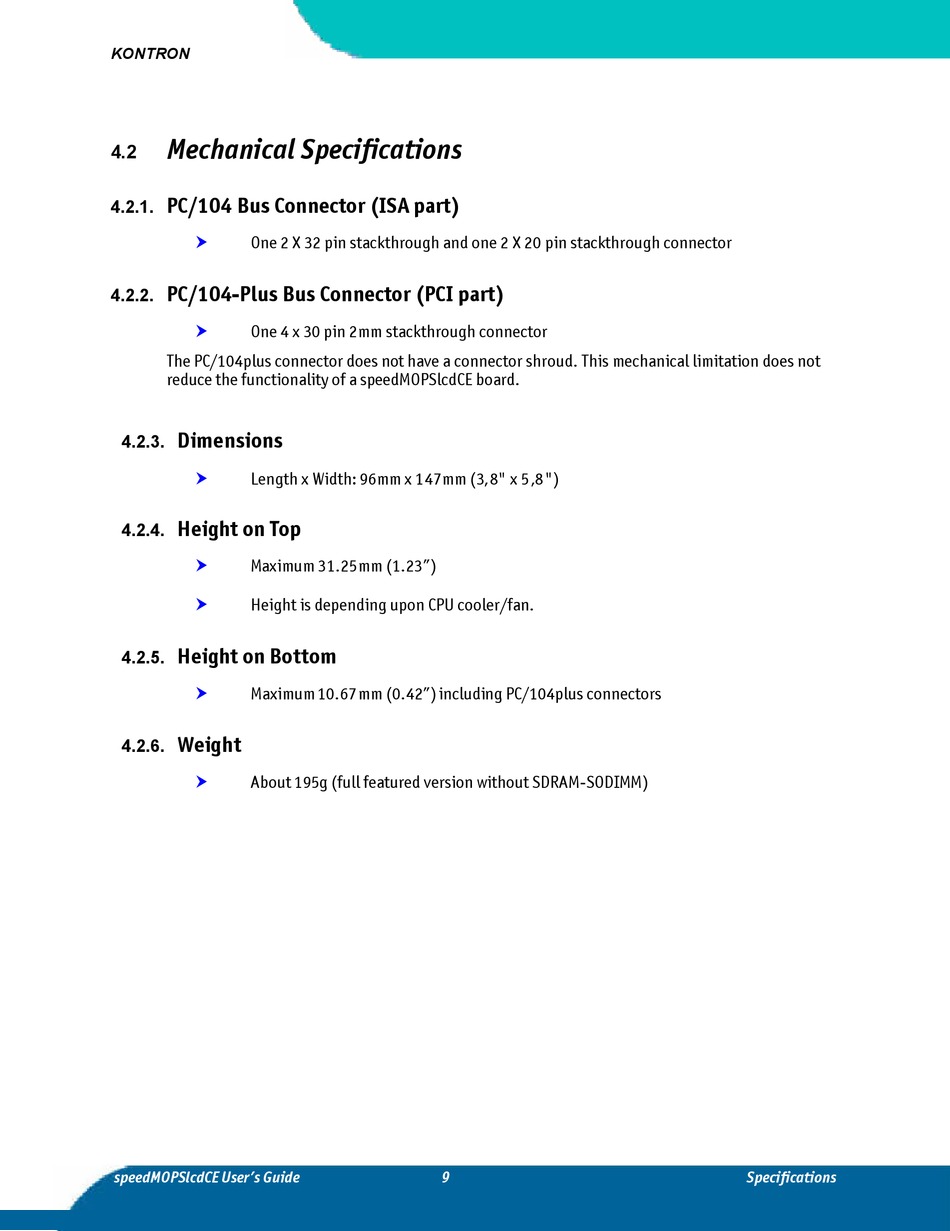

Mechanical Specifications

4.2

PC/104 Bus Connector (ISA part)

4.2.1.
One 2 X 32 pin stackthrough and one 2 X 20 pin stackthrough connector

PC/104-Plus Bus Connector (PCI part)

4.2.2.
One 4 x 30 pin 2mm stackthrough connector
The PC/104plus connector does not have a connector shroud. This mechanical limitation does not
reduce the functionality of a speedMOPSlcdCE board.

Dimensions

4.2.3.
Length x Width: 96mm x 147mm (3,8" x 5,8")

Height on Top

4.2.4.
Maximum 31.25mm (1.23")
Height is depending upon CPU cooler/fan.

Height on Bottom

4.2.5.
Maximum 10.67mm (0.42") including PC/104plus connectors

Weight

4.2.6.
About 195g (full featured version without SDRAM-SODIMM)
speedMOPSlcdCE User's Guide
9
Specifications
