786LCD/mITX
KTD-00629-B
Public

User Manual

Date: 2006-03-17
Page
1 of 74
User Manual
for
786LCD/mITX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 786LCD/mITX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron 786LCD/mITX

Summary of Contents for Kontron 786LCD/mITX

  • Page 1: User Manual

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 1 of 74 User Manual 786LCD/mITX...

  • Page 2: Document Revision History

    Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer: KONTRON Technology A/S reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance.

  • Page 3: Life Support Policy

    KONTRON Technology Technical Support and Services If you have questions about installing or using your KONTRON Technology Product, check this User’s Manual first – you will find answers to most questions here. To obtain support, please contact your local Distributor or Field Application Engineer (FAE).

  • Page 4: Table Of Contents

    System Memory support .........................14 System overview ..........................15 786LCD Clock Distribution......................16 CONNECTOR DEFINITIONS........................17 Connector layout..........................18 4.1.1 786LCD/mITX ..........................18 Power Connector (ATXPWR) ......................19 Keyboard and PS/2 mouse connectors ..................20 4.3.1 Stacked MINI-DIN keyboard and mouse Connector (MSE & KBD) ...........20 4.3.2 keyboard and mouse pin-row Connector (KBDMSE)..............20 Display Connectors .........................21...
  • Page 5 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 5 of 74 4.11 USB Connector (USB)........................37 4.11.1 USB Connector 0/2 (USB0/2).....................37 4.11.2 USB Connector 4/5 (USB45)......................37 4.12 Audio Connector ..........................38 4.12.1 Audio Line-in, Line-out and Microphone..................38 4.12.2 CD-ROM Audio input (CDROM)....................38 4.12.3...
  • Page 6 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 6 of 74 8.3.14 Advanced settings – Advanced ACPI Configuration ..............63 PCIPnP Menu............................64 Boot Menu............................65 8.5.1 Boot – Boot Settings Configuration ....................65 8.5.2 Boot – Boot Device Priority......................66 Security Menu...........................67 Chipset Menu............................68 8.7.1...

  • Page 7: Introduction

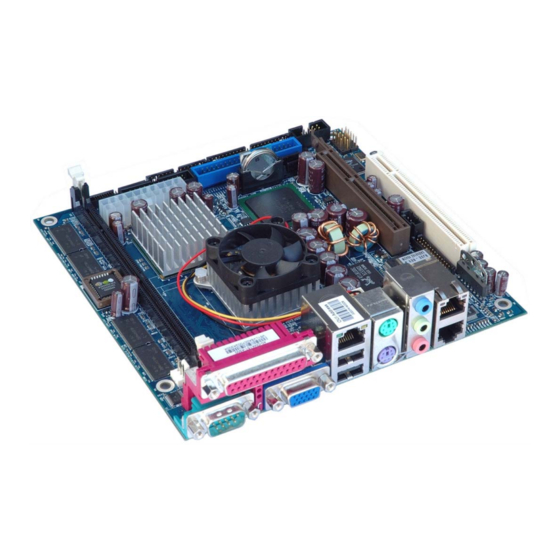

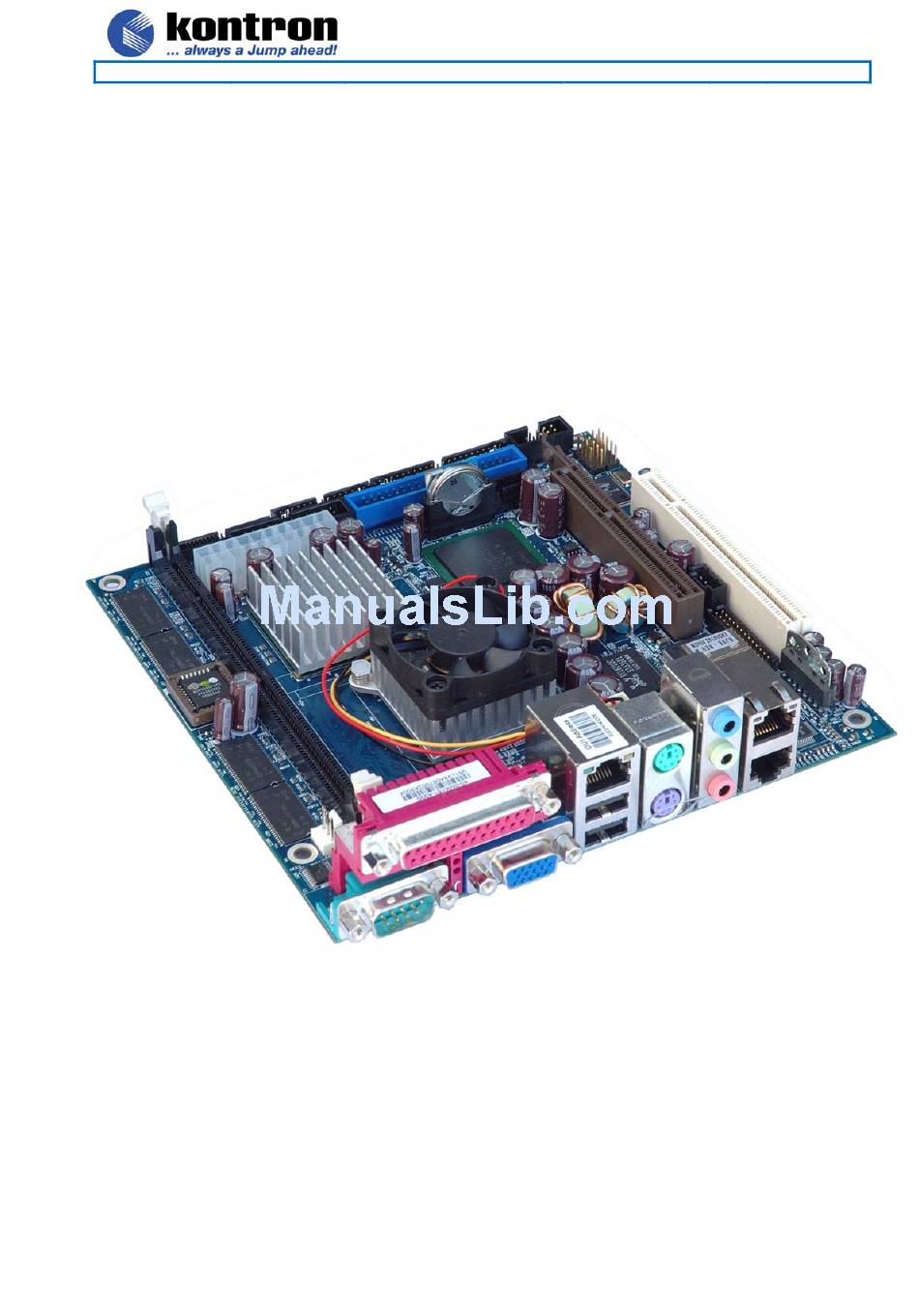

    7 of 74 1. Introduction This manual describes the 786LCD/mITX board made by KONTRON Technology A/S. The boards will also be denoted 786LCD family if no differentiation is required. All boards are to be used with the Intel® Celeron® LV and ULV Processors.

  • Page 8: Installation Procedure

    2. Installation procedure 2.1 Installing the board To get the board running, follow these steps. In some cases the board shipped from KONTRON Technology has SDRAM mounted. In this case Step 2 can be skipped. 1. Turn off the power supply.

  • Page 9: Requirement According To En60950

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 9 of 74 2.2 Requirement according to EN60950 Users of 786LCD boards should take care when designing chassis interface connectors in order to fulfill the EN60950 standard: When an interface/connector has a VCC (or other power) pin, which is directly connected to a power...

  • Page 10: System Specification

    Page 10 of 74 3. System specification 3.1 Component main data The table below summarises the features of the 786LCD/mITX embedded motherboard. 786LCD/mITX: mini ITX (170.18millimeters by 170.18millimeters) Form factor • Support for Intel Celeron LV and Celeron ULV Processors in mPGA478 socket Processor with 400MHz system bus.
  • Page 11 1x 10/100Mbits/s LAN subsystem using the Realtek RTL8100C LAN controllers depending on board configuration. PXE and RPL netboot supported. Wake On LAN (WOL) supported. • Kontron Technology / AMI BIOS (core version) BIOS • Support for Advanced Configuration and Power Interface (ACPI 1.0, 2.0), Plug...
  • Page 12 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 12 of 74 Environmental Operating: Conditions 0°C – 60°C operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range.

  • Page 13: Configuration Overview

    Public User Manual Date: 2006-03-17 Page 13 of 74 3.2 Configuration overview Feature 810045-4500, 786LCD/mITX LV Plus 810046-4500, 786LCD/mITX ULV Standard Intel Celeron LV 733MHz Intel Celeron ULV 400 MHz 256MB SDRAM, PC133 Onboard Memory Yes (Max. 1280x1024) Yes (Max. 1024x768)

  • Page 14: System Memory Support

    Date: 2006-03-17 Page 14 of 74 3.3 System Memory support The 786LCD/mITX board has one onboard DIMM sockets and support the following memory features: • 168-pin PC133 SDRAM DIMMs with gold-plated contacts • Supports up to 2 double sided DIMMs at 133 MHz system memory bus. 32 MB to 512 MB using 16Mb/64Mb/128Mb/256Mb technology •...

  • Page 15: System Overview

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 15 of 74 3.4 System overview The block diagram below shows the architecture and main components of the 786LCD boards. The two key ® ® components on the board are the Intel 815E and Intel ICH4 Embedded Chipsets.

  • Page 16: 786Lcd Clock Distribution

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 16 of 74 3.5 786LCD Clock Distribution...

  • Page 17: Connector Definitions

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 17 of 74 4. Connector Definitions The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation: Column Description name Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors.

  • Page 18: Connector Layout

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 18 of 74 4.1 Connector layout 4.1.1 786LCD/mITX Clr-CMOS CF (backside of 786LCD/mITX) FRONTPNL IDE_S2 USB45 SATA1 DVI IFC LVDS IDE_P SATA0 FEATURE IEEE1394x2 ATXPWR SDRAM CDROM KBDMSE AUDIO COM3 SYSTEM COM4...

  • Page 19: Power Connector (Atxpwr)

    Active high signal from the power supply indicating that the 5V and 3V3 supplies are within operating limits. It is strongly recommended to use an ATX supply with the 786LCD/mITX boards, in order to implement the supervision of the 5V and 3V3 supplies. These supplies are not supervised onboard the 786LCD/mITX boards.

  • Page 20: Keyboard And Ps/2 Mouse Connectors

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 20 of 74 4.3 Keyboard and PS/2 mouse connectors Attachment of a keyboard or PS/2 mouse adapter can be done through the stacked PS/2 mouse and keyboard connector (MSE & KBD). Both interfaces utilize open-drain signaling with on-board pull-up.

  • Page 21: Display Connectors

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 21 of 74 4.4 Display Connectors The 786LCD board family provides onboard two basic types of interfaces to a display: Analog CRT interface and a digital interface available as either LVDS dual channel interface or DVI (analogue/ digital) depending on the board configuration.

  • Page 22: Lvds Flat Panel Connector (Lvds)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 22 of 74 4.4.2 LVDS Flat Panel Connector (LVDS) Note Type Signal Signal Type Note +12V +12V +12V +12V +12V LCDVCC LCDVCC 4K7Ω, 3.3V DDC CLK DDC DATA 4K7Ω, 3.3V 3.3V level...

  • Page 23: Dvi Interface Connector (Dvi Ifc)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 23 of 74 4.4.3 DVI Interface Connector (DVI IFC) Note Type Signal Signal Type Note LCDCK LCDDA HPDET TDC0 TDC0# TDC1 TDC1# TDC2 TDC2# TLC# GREEN BLUE VSYNC HSYNC Signal Description – DVI Interface Connector:...

  • Page 24: Agp Connector - Tbd

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 24 of 74 4.4.4 AGP connector - TBD Note Type Signal Signal Type Note OVRCNT +12V TYPEDET RSVD USB+ USB- INTB INTA AGPCLK RST- GREQ GGNT +3.3V +3.3V RSVD PIPE RSVD SBA(0) SBA(1) +3.3V...
  • Page 25 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 25 of 74 Signal Description – AGP Connector: Signal Description Address PIPE# Pipeline. During PIPE# Operation. This signal is asserted by the AGP master to indicate a full-width address is to be enqueued on by the target using the AD bus.
  • Page 26 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 26 of 74 During FRAME# Operation: G_FRAME# is an output when the GMCH acts as an initiator on the AGP Interface. G_FRAME# is asserted by the GMCH to indicate the beginning and duration of an access.
  • Page 27 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 27 of 74 CBE#[3:0] Command/Byte Enable. During FRAME# Operation: During the address phase of a transaction, the G_CBE[3:0]# signals define the bus command. During the data phase, the G_CBE[3:0]# signals are used as byte enables.

  • Page 28: Parallel Ata Harddisk Interface

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 28 of 74 4.5 Parallel ATA harddisk interface Two parallel ATA harddisk controllers are available on the board – a primary and a secondary controller. Standard 3½” harddisks or CD-ROM drives may be attached to the primary controller board by means of the 40 pin IDC connectors, IDE_P.

  • Page 29: Ide Hard Disk Connector (Ide_P)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 29 of 74 4.5.1 IDE Hard Disk Connector (IDE_P) This connector can be used for connection of two primary IDE drives. Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note RESETA#...

  • Page 30: Cf Connector (Cf)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 30 of 74 4.5.3 CF Connector (CF) This connector is mounted on the backside of the 786LCD-M/mITX. If a Compact Flash Disk is used, then no IDE drive can be connected to the IDE_S2 connector. The socket support DMA/UDMA modules.

  • Page 31: Serial Ata Harddisk Interface

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 31 of 74 4.6 Serial ATA harddisk interface Two serial ATA harddisk controllers are available on the board – a primary controller (SATA0) and a secondary controller (SATAB). 4.6.1 SATA Hard Disk Connector (SATA0, SATA1)

  • Page 32: Firewire / Ieee1394 Connector

    Page 32 of 74 4.7 Firewire / IEEE1394 connector The 786LCD/mITX supports two IEEE Std 1394a-2000 fully compliant cable ports at 100M bits/s, 200M bits/s, and 400M bits/s. 4.7.1 IEEE1394 Connector (IEEE1394_0 and IEEE1394_1) The pinout of the Firewire / IEEE1394 connector IEEE1394_0 and IEEE1394_1 is as follows:...

  • Page 33: Printer Port Connector (Printer)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 33 of 74 4.8 Printer Port Connector (PRINTER). The printer port connector is provided in a standard DB25 pinout. The signal definition in standard printer port mode is as follows: Pull Pull...

  • Page 34: Serial Ports

    Date: 2006-03-17 Page 34 of 74 4.9 Serial Ports Four RS232C serial ports are available on the 786LCD/mITX. The typical interpretation of the signals in the Serial Ports is as follows: Signal Description Transmitte Data, sends serial data to the communication link. The signal is set to a marking state on hardware reset when the transmitter is empty or when loop mode operation is initiated.

  • Page 35: Ethernet Connectors

    Page 35 of 74 4.10 Ethernet connectors. The 786LCD/mITX boards supports 3 channels of 10/100Mb Ethernet. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB LAN networks. 4.10.1 Ethernet connector 1 (ETHER1) Ethernet connector 1 is mounted together with USB Ports 0 and 2.

  • Page 36: Ethernet Connector 2/3 (Ether2/3)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 36 of 74 4.10.2 Ethernet connector 2/3 (ETHER2/3) The two Ethernet channels in ETHER2/3 are supported by two discrete Ethernet controllers (RTL8100C) connected to the onboard PCI bus. The pinout of the RJ45’s connector are as follows:...

  • Page 37: Usb Connector (Usb)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 37 of 74 4.11 USB Connector (USB) The ICH4 contains an Enhanced Host Controller Interface (EHCI) compliant host controller that supports USB high-speed signaling. High-speed USB 2.0 allows data transfers up to 480 Mb/s which is 40 times faster than full-speed USB.

  • Page 38: Audio Connector

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 38 of 74 4.12 Audio Connector 4.12.1 Audio Line-in, Line-out and Microphone Audio Line-in, Line-out and Microphone are available in the stacked audio jack connector. Signal Type Note Line in – Left RING Line in –...

  • Page 39: Audio Header (Audio Header)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 39 of 74 4.12.3 AUDIO Header (AUDIO HEADER) Pull Ioh/ Ioh/ Pull Note Type Signal Signal Type Note LFE-OUT CEN-OUT AAGND AAGND SPKR_OUT_L SPKR_OUT_R AAGND AAGND SURR-OUT-L SURR-OUT-R 11 12 AAGND 13 14...

  • Page 40: Fan Connectors , Cpu Fan And System Fan

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 40 of 74 4.13 Fan connectors , CPU FAN and SYSTEM FAN. The CPU FAN is used for connection of the active cooler for the CPU. The SYSTEM FAN can be used to power, control and monitor a fan for chassis ventilation etc.

  • Page 41: Front Panel Connector (Frontpnl)

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 41 of 74 4.16 Front Panel connector (FRONTPNL). Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note USB13_5V USB13_5V USB1- USB3- USB1+ USB3+ 11 12 HD_LED 13 14 SUS_LED 15 16...

  • Page 42: Feature Connector (Feature)

    The external battery voltage shall be in the range: 2.5 - 4.0 V DC. General Purpose Inputs / Output. These Signals may be controlled or monitored through GPIO0..7 the use of the KONTRON API (Application Programming Interface) available for Win98, WinXP, WinNT, and Win2000. FAN3OUT FAN 3 speed control OUTput.

  • Page 43: Pci Slot Connector

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 43 of 74 4.17.1 PCI Slot Connector Terminal Note Type Signal Signal Type Note -12V TRST# +12V INTA# INTB# INTC# INTD# REQ2# CLKC REQ3# +5V (I/O) GNT2# CLKD CLKA GNT3# RST# CLKB...

  • Page 44: Signal Description -Pci Slot Connector

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 44 of 74 4.17.2 Signal Description –PCI Slot Connector SYSTEM PINS Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the rising edge of CLK and all other timing parameters are defined with respect to this edge.

  • Page 45: 786Lcd Pci Irq & Int Routing

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 45 of 74 ARBITRATION PINS (BUS MASTERS ONLY) Request indicates to the arbiter that this agent desires use of the bus. This is a point to point signal. Every REQ# master has its own REQ# which must be tri-stated while RST# is asserted.

  • Page 46: Onboard Connectors

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 46 of 74 5. Onboard Connectors Connector Onboard Connectors Mating Connectors Manufacturer Type no. Manufacturer Type no. SYSTEM FAN Molex 22-23-2031 1375820-3 CPU FAN KBDMSE Molex 22-23-2061 Molex 22-01-2065 CDROM Foxconn HF1104E...

  • Page 47: System Ressources

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 47 of 74 6. System Ressources 6.1 Memory map The table below lists the system memory map. Address range (hex) Size Description 00000000- 0007FFFF 512 Kbytes Conventional memory 00080000- 0009FBFF 127 Kbyte...

  • Page 48: Interrupt Usage

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 48 of 74 6.3 Interrupt Usage Notes • • IRQ0 • IRQ1 • IRQ2 • • • • • 1, 2 IRQ3 • • • • • 1, 2 IRQ4 • •...

  • Page 49: I/O Map

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 49 of 74 6.4 I/O Map Address (hex) Size Description 0020- 0021 Programmable interrupt controller 0040- 0043 System Timer 0060- 0060 Standard keyboard 0061- 0061 System speaker 0070- 0071 System CMOS/Real time clock...

  • Page 50: Overview Of Bios Features

    7. Overview of BIOS features This Manual section details specific BIOS features for the 786LCD/mITX boards. The 786LCD/mITX boards are based on the AMI BIOS core version 8.10 with Kontron BIOS extensions. 7.1.1 System Management BIOS (SMBIOS / DMI) SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

  • Page 51: Bios Configuration / Setup

    8. BIOS Configuration / Setup 8.1 Introduction The BIOS Setup is used to view and configure BIOS settings for the 786LCD/mITX board. The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

  • Page 52: Advanced Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 52 of 74 8.3 Advanced Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Configure CPU. Advanced Settings Warning: Setting wrong values in below sections May cause system to malfunction.

  • Page 53: Advanced Settings - Ide Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 53 of 74 8.3.2 Advanced settings – IDE Configuration BIOS SETUP UTILITY Advanced DISABLED: disables the IDE Configuration integrated IDE OnBoard PCI IDE Controller [Both] controller. PRIMARY: enables only > Primary IDE Master...
  • Page 54 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 54 of 74 BIOS SETUP UTILITY Advanced Select the type of Primary IDE Master devices connected to Device :Hard Disk the system. Vendor :ST340014A Size :40.0GB LBA Mode :Supported Block Mode :16Sectors PIO Mode S.M.A.R.T.

  • Page 55: Advanced Settings - Lan Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 55 of 74 Feature Options Description Hard Disk Write Protect Enable write protection on HDDs, only works Disable, Enabled when it is accessed through the BIOS IDE Detect Time Out (Sec) Select the time out value when the BIOS is...

  • Page 56: Advanced Settings - Sata/Raid Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 56 of 74 8.3.4 Advanced settings – SATA/RAID Configuration BIOS SETUP UTILITY Advanced Configure the Serial SATA/RAID Configuration ATA Device. SATA/RAID Configuration [Enabled] <- Select Screen Select Item change option General Help...

  • Page 57: Advanced Settings - Superio Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 57 of 74 8.3.6 Advanced settings – SuperIO Configuration BIOS SETUP UTILITY Advanced Allows BIOS to Select Configure Win627THF Super IO Chipset Serial Port1 Base Serial Port1 Address [3F8/IRQ4] Addresses. Serial Port2 Address...

  • Page 58: Advanced Settings - Voltage Monitor

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 58 of 74 8.3.7 Advanced settings – Voltage Monitor BIOS SETUP UTILITY Advanced Voltage Monitor Requested Core :1.150 V VcoreA :1.031 V VcoreB :1.516 V +3.3Vin :3.290 V +5Vin :5.012 V +12Vin :12.016 V...

  • Page 59: Advanced Settings - Hardware Health Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 59 of 74 8.3.8 Advanced settings – Hardware Health Configuration BIOS SETUP UTILITY Advanced IF exceeded, throttle Hardware Health Event Monitoring event will be engaged System Temperature :47ºC/116ºF CPU Temperature :48ºC/118ºF Choose impact via...

  • Page 60: Advanced Settings - Remote Access Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 60 of 74 8.3.9 Advanced settings – Remote Access Configuration BIOS SETUP UTILITY Advanced Select Remote Access Configure Remote Access type and parameters type. Remote Access [Enabled] Serial port number [COM1] Serial Port Mode...

  • Page 61: Advanced Settings - Usb Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 61 of 74 8.3.10 Advanced settings – USB Configuration BIOS SETUP UTILITY Advanced Enables support for USB Configuration legacy USB. Auto Module Version – 2.23.2-9.4 option disables legacy support if no USB USB Devices Enabled : devices are connected.

  • Page 62: Advanced Settings - Acpi Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 62 of 74 8.3.12 Advanced settings – ACPI Configuration BIOS SETUP UTILITY Advanced Enable Hardware Health ACPI Settings Monitoring Device. ACPI Aware O/S [Yes] > General ACPI Configuration > Advanced ACPI Configuration <-...

  • Page 63: Advanced Settings - General Acpi Configuration

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 63 of 74 8.3.13 Advanced settings – General ACPI Configuration BIOS SETUP UTILITY Advanced Select the ACPI state General ACPI Configuration used for System Suspend mode [S1 & S3 (STR)] Suspend. Repost Video on S3 Resume [No] <-...

  • Page 64: Pcipnp Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 64 of 74 8.4 PCIPnP Menu BIOS SETUP UTILITY PCIPnP NO: lets the BIOS Advanced PCI/PnP Settings configure all the Warning: Setting wrong values in below sections devices in the system. May cause system to malfunction.

  • Page 65: Boot Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 65 of 74 8.5 Boot Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Configure Settings Boot Settings during System Boot. > Boot Settings Configuration > Boot Device Priority...

  • Page 66: Boot - Boot Device Priority

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 66 of 74 * List of errors: <INS> Pressed Timer Error Interrupt Controller-1 error Keyboard/Interface Error Primary Master Hard Disk Error S.M.A.R.T HDD Error Cache Memory Error DMA Controller Error Resource Conflict...

  • Page 67: Security Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 67 of 74 8.6 Security Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Install or Change the Security Settings password. Supervisor Password :Installed User Password :Installed Change Supervisor Password...

  • Page 68: Chipset Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 68 of 74 8.7 Chipset Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Advanced Chipset Settings Intel ICH4 SouthBridge chipset configuration options. Warning: Setting wrong values in below sections may cause system to malfunction.
  • Page 69 786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 69 of 74 Feature Options Description ICH4 Dev31 Func1, IDE Disabled, Enabled Enable / Disable ICH4 IDE Controller function. ICH4 Dev31 Func3, Disabled, Enabled Enable / Disable ICH4 SMBUS Controller function. SMBUS ICH4 Dev31 Func5, AC’97...

  • Page 70: Power Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 70 of 74 8.8 Power Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Enable or Disable APM. APM Configuration Power Management/APM [Enabled] Power Button Mode [On/Off] Force Throttle...

  • Page 71: Exit Menu

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 71 of 74 8.9 Exit Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Exit system setup Exit Options after saving the changes. Save Changes and Exit Discard Changes and Exit...

  • Page 72: Ami Bios Beep Codes

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 72 of 74 8.10 AMI BIOS Beep Codes Boot Block Beep Codes: Number of Description Beeps Insert diskette in floppy drive A: ‘AMIBOOT.ROM’ file not found in root directory of diskette in A:...

  • Page 73: Os Setup

    786LCD/mITX KTD-00629-B Public User Manual Date: 2006-03-17 Page 73 of 74 9. OS setup Use the Setup.exe files for all relevant drivers. The drivers can be found on the 786LCD-M Driver CD or they can be downloaded from the homepage...

  • Page 74: Warranty

    74 of 74 10. Warranty KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product.
