POWER INTERFACE

19.
In some applications, the speedMOPSlcdCE is intended for use as a stand-alone module without a
backplane. You need to have a power connector available on the board for direct power supply. The
speedMOPSlcdCE is a +5V-only board. Peripherals can obtain additional voltage from the power
connectors next to the PC/104 bus. The additional voltages (+3.3V, +12V, -5V and -12V) are not
generated onboard the speedMOPSlcdCE.
Two connectors provide power to the speedMOPSlcdCE and it is strictly recommended that both
connectors are used. To find the location of the power connectors on the board, please see the
Appendix E: Connector Layout chapter.

Main Power Connector

19.1

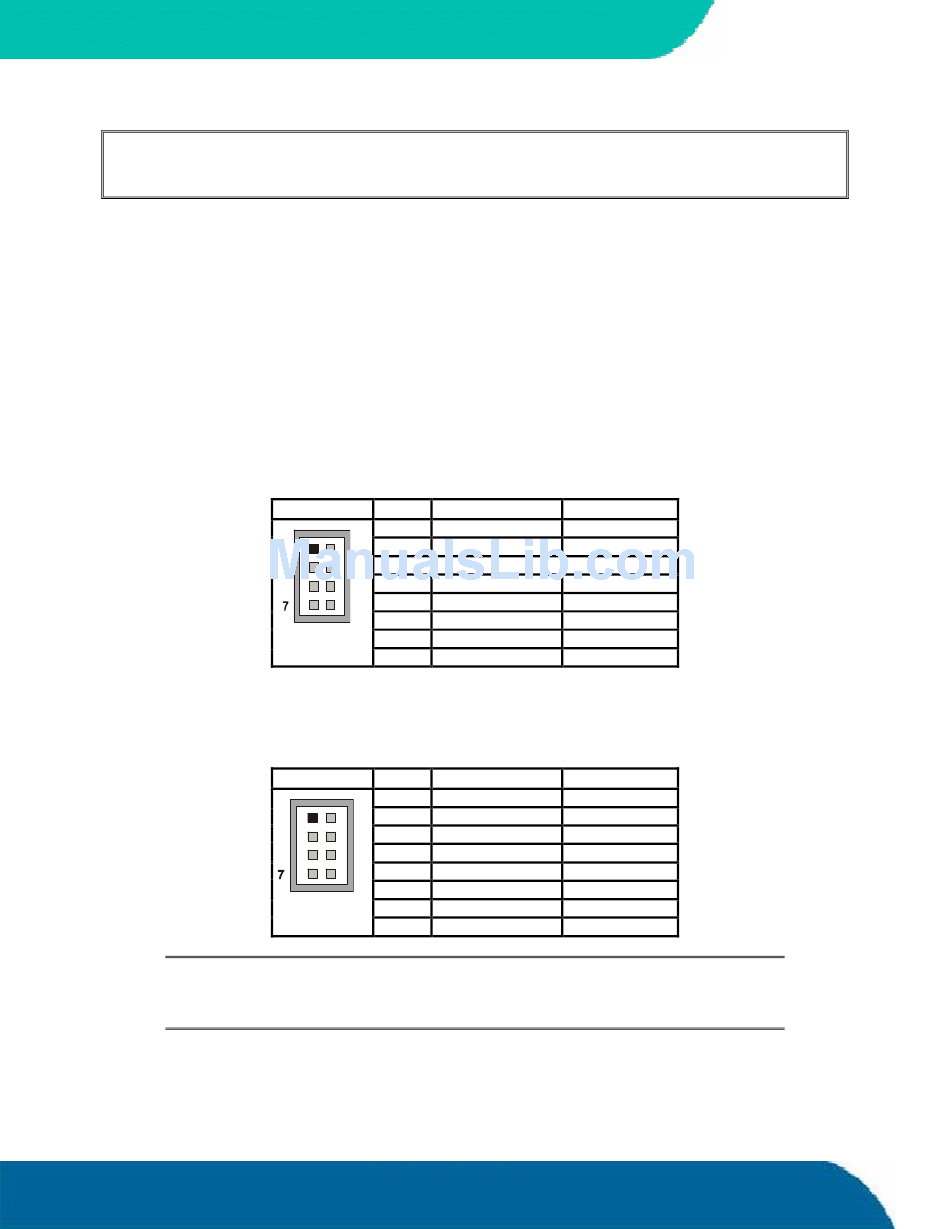

The main power connector is available as J6A (8 pins). The following table shows the pinout.
1

Auxiliary Power Connector

19.2
The auxiliary power connector is available as X5 (8 pins). The following table shows the pinout.
1
Notes: (
*) To protect the external power lines of peripheral devices, make sure that:
-- the wires have the right diameter to withstand the maximum available current
-- the enclosure of the peripheral device fulfils the fire-protecting requirements of
-- IEC/EN 60950.
Power Interface
Header Pin Signal Name
1
2
2
3
4
5
8
6
7
8
Header Pin Signal Name
1
2
2
3
4
5
8
6
7
8
44
Function
GND Ground
VCC +5V
BATT Battery
+12V +12V
- 5V -5V
-12V -12V
GND Ground
VCC +5V
Function
GND Ground
VCC +5V
VCC +5V
GND Ground
GND Ground
VCC +5V
VCC +5V
GND Ground
