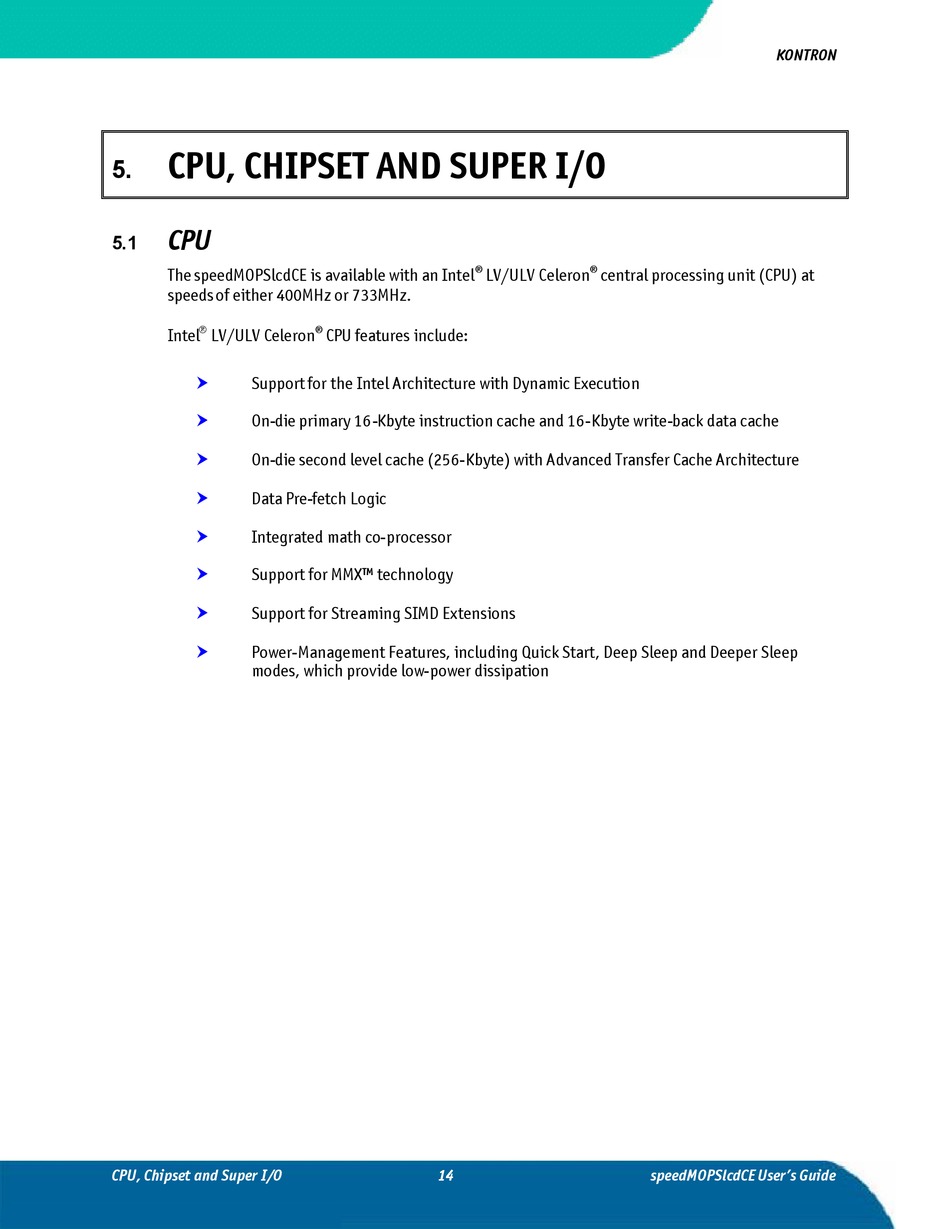

CPU, CHIPSET AND SUPER I/O

5.

CPU

5.1
The speedMOPSlcdCE is available with an Intel
speeds of either 400MHz or 733MHz.

Intel LV/ULV Celeron
 Support for the Intel Architecture with Dynamic Execution

On-die primary 16-Kbyte instruction cache and 16-Kbyte write-back data cache

On-die second level cache (256-Kbyte) with Advanced Transfer Cache Architecture
 Data Pre-fetch Logic
 Integrated math co-processor
 Support for MMX™technology
 Support for Streaming SIMD Extensions
 Power-Management Features, including Quick Start, Deep Sleep and Deeper Sleep
modes, which provide low-power dissipation
CPU, Chipset and Super I/O
®
LV/ULV Celeron
®
CPU features include:
14
®
central processing unit (CPU) at
speedMOPSlcdCE User's Guide
KONTRON
