KONTRON

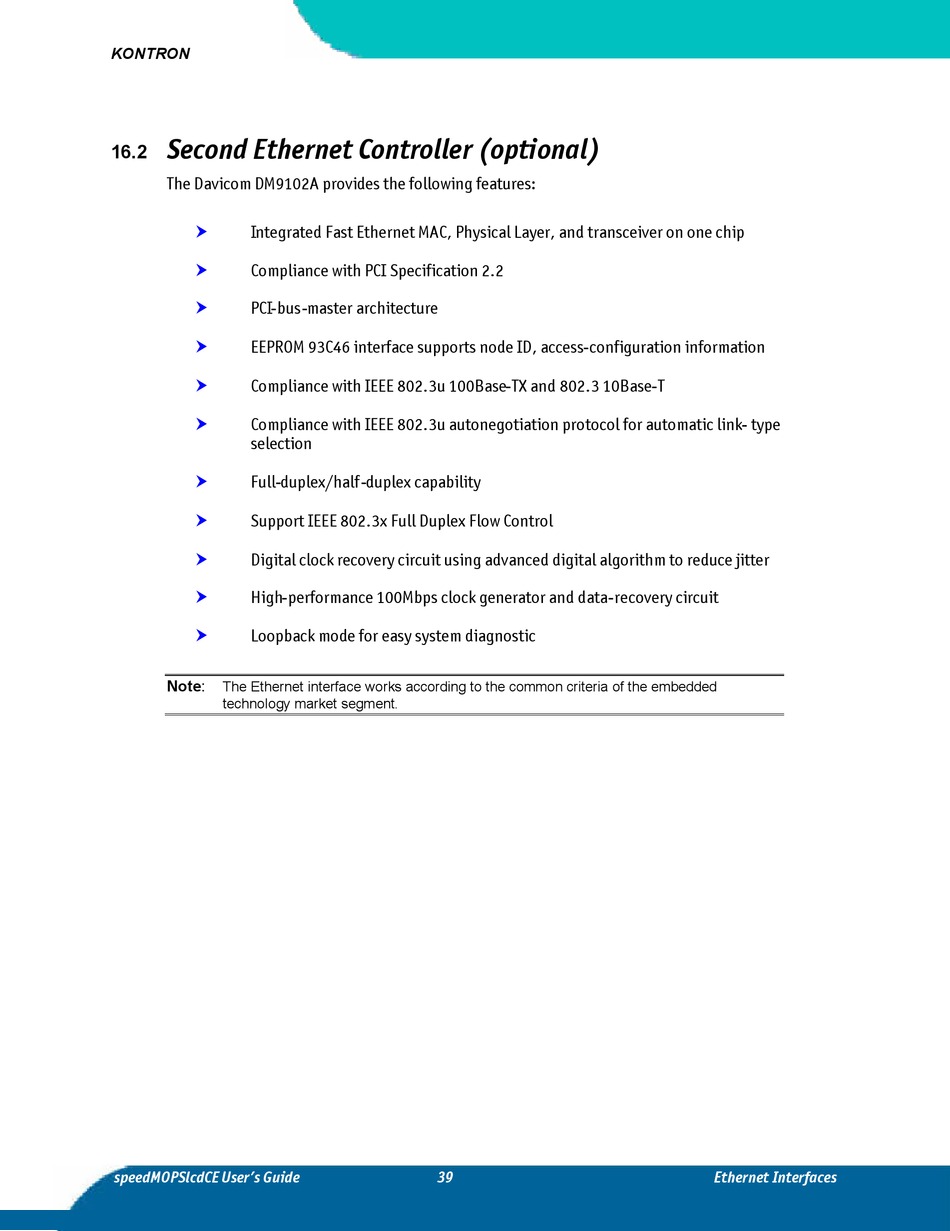

Second Ethernet Controller (optional)

16.2
The Davicom DM9102A provides the following features:
Integrated Fast Ethernet MAC, Physical Layer, and transceiver on one chip
Compliance with PCI Specification 2.2
PCI-bus-master architecture
EEPROM 93C46 interface supports node ID, access-configuration information
Compliance with IEEE 802.3u 100Base-TX and 802.3 10Base-T
Compliance with IEEE 802.3u autonegotiation protocol for automatic link- type
selection
Full-duplex/half-duplex capability
Support IEEE 802.3x Full Duplex Flow Control
Digital clock recovery circuit using advanced digital algorithm to reduce jitter
High-performance 100Mbps clock generator and data-recovery circuit
Loopback mode for easy system diagnostic
Note:
The Ethernet interface works according to the common criteria of the embedded
technology market segment.
speedMOPSlcdCE User's Guide
39
Ethernet Interfaces
