Summary of Contents for Kontron KT690/mITX
-

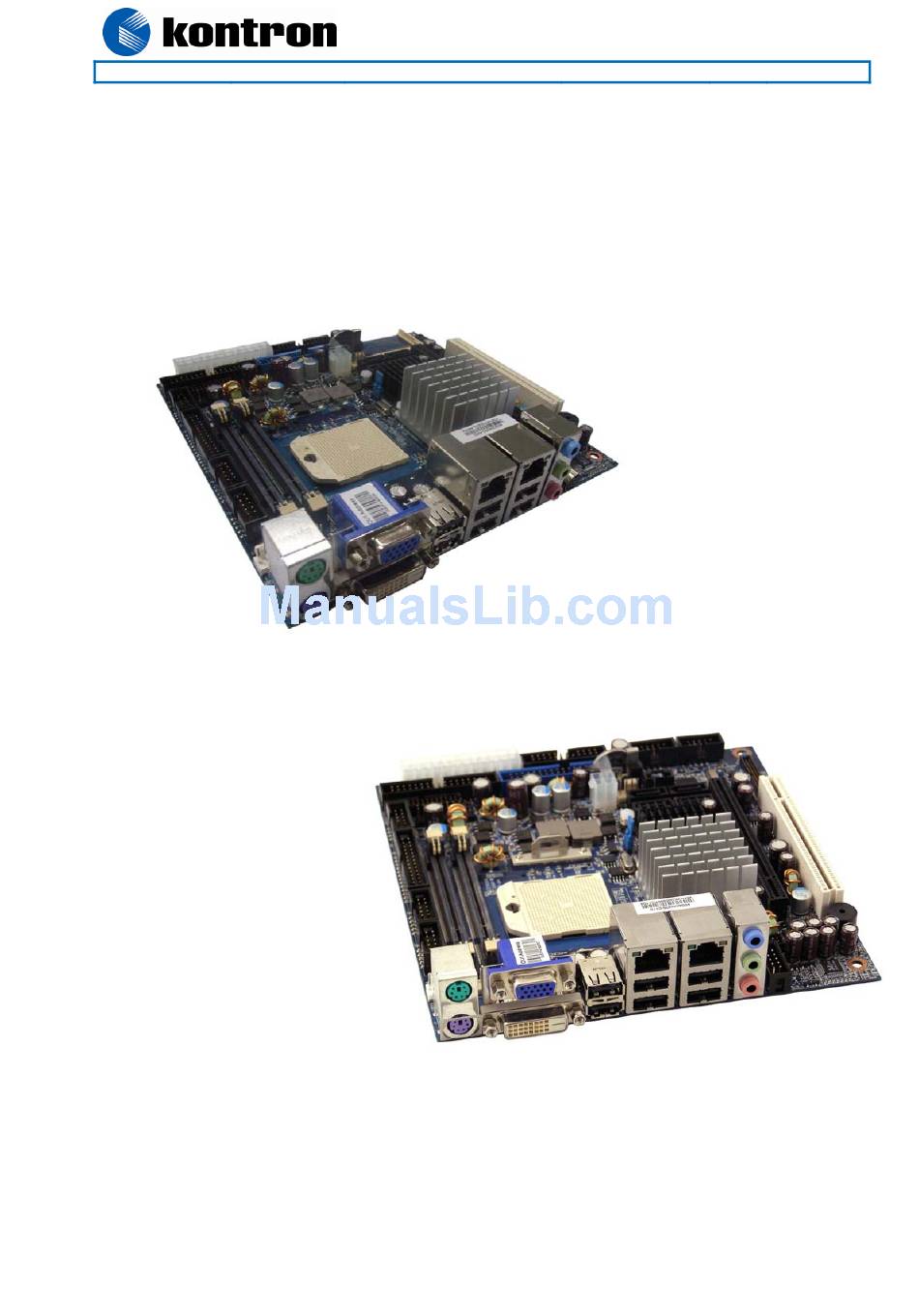

Page 1: User Manual
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 1 of 91 User Manual for the Motherboards: KT690/mITX KT690-FW/mITX... -
Page 2: Document Revision History
Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer: KONTRON Technology A/S reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. -
Page 3: Life Support Policy
KONTRON Technology Technical Support and Services If you have questions about installing or using your KONTRON Technology Product, check this User’s Manual first – you will find answers to most questions here. To obtain support, please contact your local Distributor or Field Application Engineer (FAE). -
Page 4: Table Of Contents
INTRODUCTION .............................7 INSTALLATION PROCEDURE ......................8 Installing the board..........................8 Requirement according to EN60950 ....................10 SYSTEM SPECIFICATION ........................11 Component main data ........................11 KT690/mITX System overview ......................14 KT690-FW/mITX System overview ....................15 Processor support table........................16 System Memory..........................17 3.5.1 Memory Configuration ........................17 KT690 Fan / Heatsinks........................18 KT690 Power State Map ........................19... - Page 5 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 5 of 91 Firewire/ IEEE-1394 connectors.....................42 4.8.1 IEEE1394 Connector (IEEE1394_1 and IEEE1394_2)..............42 Printer Port Connector (PRINTER)....................43 4.10 Floppy connector (FLOPPY).......................44 4.11 Serial Ports............................45 4.11.1 Com1 Pin Header Connector.....................45 4.11.2 Com2 Pin Header Connector.
- Page 6 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 6 of 91 Introduction ............................65 Main Menu............................65 Advanced Menu..........................66 8.3.1 Advanced settings – CPU Configuration ..................66 8.3.2 Advanced settings – IDE Configuration..................67 8.3.3 Advanced settings – LAN Configuration..................70 8.3.4 Advanced settings – Floppy Configuration .................70 8.3.5 Advanced settings –...
-
Page 7: Introduction
7 of 91 1. Introduction This manual describes the KT690/mITX and KT690-FW boards made by KONTRON Technology A/S. The boards will also be denoted KT690 family if no differentiation is required. All boards are to be used with the Mobile AMD Sempron™ and AMD Turion™ 64 X2 Mobile Processors for S1 socket. -
Page 8: Installation Procedure
2. Installation procedure Installing the board To get the board running, follow these steps. In some cases the board shipped from KONTRON Technology has CPU, DDR2 DRAM and Cooler mounted. In this case Step 2-4 can be skipped. Warning: Do not use Power Supply without 3.3V monitoring watchdog, which is standard feature in ATX Power Supplies. - Page 9 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 9 of 91 5. Connecting Interfaces Insert all external cables for hard disk, keyboard etc. A CRT monitor must be connected in order to change CMOS settings to flat panel support. 6.
-
Page 10: Requirement According To En60950
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 10 of 91 Requirement according to EN60950 Users of KT690 and KT690-FW boards should take care when designing chassis interface connectors in order to fulfill the EN60950 standard: When an interface/connector has a VCC (or other power) pin, which is directly connected to a power plane like the VCC plane: To protect the external power lines of peripheral devices the customer has to take care about: •... -
Page 11: System Specification
3. System specification Component main data The table below summarises the features of the KT690 and KT690-FW embedded motherboards. KT690/mITX and KT690-FW/mITX: mini ITX (170.18millimeters by 170.18millimeters) Form factor • Support for Mobile AMD Sempron™, AMD Turion™ 64 and AMD Turion™ 64 X2... - Page 12 One PATA 66/100/133 interface with support for 2 devices • CF (Compact Flash) interface (KT690/mITX only) supporting CF type I and II. (UDMA2 max.). Note that only one PATA device is supported when CF is used and only by use of 40-wire cable (not 80-wire cable). Optionally use SATA devices.
- Page 13 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 13 of 91 Environmental Operating: Conditions 0°C – 60°C operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range.
-
Page 14: Kt690/Mitx System Overview
Date: 2008-09-16 Page 14 of 91 3.2 KT690/mITX System overview The block diagram below shows the architecture and main components of the KT690/mITX board. The two ® ® key components on the board are the AMD M690T and AMD SB600 Embedded Chipsets. -
Page 15: Kt690-Fw/Mitx System Overview
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 15 of 91 3.3 KT690-FW/mITX System overview The block diagram below shows the architecture and main components of the KT690-FW/mITX board. The ® ® two key components on the board are the AMD M690T and AMD SB600 Embedded Chipsets. -
Page 16: Processor Support Table
Public User Manual Date: 2008-09-16 Page 16 of 91 Processor support table. The KT690/mITX and KT690-FW/mITX is designed to support the following socket S1 processors: Mobile AMD Sempron™ AMD Turion™ 64 X2 Mobile Technology Processors Clock Thermal Number Processor Brand... -
Page 17: System Memory
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 17 of 91 System Memory The motherboard provides two 200-pin DDR2 Small Outline Dual Inline Memory Module (SO-DIMM) sockets. Each slot can be populated with up to 2 GB of unbuffered DDR2 SO-DIMM modules resulting in a maximum of 4 GB system memory. -
Page 18: Kt690 Fan / Heatsinks
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 18 of 91 KT690 Fan / Heatsinks P/N 1022-1521 - Passive S1 cooler 35mm Supports CPUs with Thermal Design Power (TDP) up to: 9W @60 degrees C ambient. Customer must ensure proper airflow in system P/N 823139 - AMD S1 cooler Supports CPUs with Thermal Design Power (TDP) up to: 30W @60 degrees C ambient and... -
Page 19: Kt690 Power State Map
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 19 of 91 KT690 Power State Map... -
Page 20: Power Consumption
– refer to the hardware manual for actual power specification. The KT690/mITX and KT690-FW/mITX board is powered through the ATX connector and the additional 12V separate supply for CPU as specified in the ATX specification; besides this the power supplied to the board must be within the ATX specification. - Page 21 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 21 of 91 KT690/mITX w/1.6GHz Turion 64 X2 2GB DDR2 Windows XP, 3DMARK2001 & CPUBURN, mean Supply Current draw Power consumption +12V 2.0A 2.6A +3V3 1.1A 3.63W -12V 5VSB Total 40.63W Windows XP, 3DMARK2001 &...
- Page 22 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 22 of 91 KT690/mITX w/1.00GHz Sempron 2100+ 256MB DDR2 Windows XP, 3DMARK2001 & CPUBURN, mean Supply Current draw Power consumption +12V 0.65A 7.8W 1.9A 9.5W +3V3 1.1A 3.63W -12V 5VSB Total 20.93W...
-
Page 23: Kt690 Clock Distribution
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 23 of 91 KT690 Clock Distribution... -
Page 24: Connector Definitions
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 24 of 91 4. Connector Definitions The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation: Column Description name Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors. -
Page 25: Connector Layout
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 25 of 91 Connector layout 4.1.1 KT690/mITX SATA1 SATA3 Topside, KT690/mITX: PATA ATX+12V SATA0 SATA2 ATX/ BTXPWR FRONTPNL FAN_SYS COMPACT FLASH RESET FLOPPY FEATURE LVDS USB6 USB7 PCI Slot 1 PRINTER... - Page 26 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 26 of 91 Front, KT690/mITX AUDIO USB2 STACK DVI-D USB0 ETHER1 ETHER2 TV-OUT* USB9 USB4 USB8 USB5 * Mounted optionally Backside, KT690/mITX: Mini-PCI express slot...
-
Page 27: Kt690-Fw/Mitx
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 27 of 91 4.1.2 KT690-FW/mITX SATA1 SATA3 Topside, KT690-FW/mITX: PATA ATX+12V IEEE1394_2 SATA0 SATA2 FRONTPNL FAN_SYS ATX/ BTXPWR IEEE1394_1 FLOPPY RESET FEATURE LVDS CDROM USB6 USB7 PCI Slot 1 PRINTER Clr-CMOS DDR2 SLOT 2 DDR2 SLOT 1 PCIe x8... -
Page 28: Power Connector (Atxpwr)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 28 of 91 Power Connector (ATXPWR) The KT690 boards are designed to be supplied from a standard ATX or BTX power supply. ATX/ BTX Power Connector: Pull Pull Note Ioh/Iol Type Signal Signal Type... -
Page 29: Keyboard And Ps/2 Mouse Connectors
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 29 of 91 Keyboard and PS/2 mouse connectors Attachment of a keyboard or PS/2 mouse adapter can be done through the stacked PS/2 mouse and keyboard connector (MSE & KBD). Both interfaces utilize open-drain signaling with on-board pull-up. The PS/2 mouse and keyboard is supplied from SB5V when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. -
Page 30: Display Connectors
2. Digital DVI (DVI-D) (Front panel) 3. LVDS connector (internal connector) 4. TV-Out (KT690/mITX Front, KT690-FW/mITX Internal pin header) The KT690 board does not support ADD2 / SDVO cards on the PCI Express x16 connector. The KT690 integrates the ATI Radeon™ X1250 Graphics Core with support for Dual Clone display and Dual independent display. -
Page 31: Crt Connector (Crt)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 31 of 91 4.4.1 CRT Connector (CRT) Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note /75R /75R GREEN DDCDAT 6K81 /75R BLUE HSYNC VSYNC DDCCLK 6K81 Note 1: The 5V supply in the CRT connector is fused by a 1.1A reset-able fuse. Note 2: Pull-up to +5V. -
Page 32: Dvi Connector (Dvi-D, Digital Only)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 32 of 91 4.4.2 DVI Connector (DVI-D, digital only) Female socket, front view Note: DVI analogue signals are not supported Signal Description - DVI Connector: Pin No. Signal Description Type Pull Up TMDS Data 2- Digital Red –... -
Page 33: Lvds Flat Panel Connector (Lvds)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 33 of 91 4.4.3 LVDS Flat Panel Connector (LVDS) Note Type Signal Signal Type Note Max. 0.5A +12V +12V Max. 0.5A Max. 0.5A +12V +12V Max. 0.5A Max. 0.5A +12V Max. 0.5A Max. -
Page 34: Tv-Out (Not Supported)
34 of 91 4.4.4 TV-Out (Not supported) The KT690/mITX boards include TV-Out connector with support for Component, S-Video and Composite Output interfaces and NTSC/ PAL output format. The KT690 board includes Macrovision support. : If the TV-Out option is available then you must make agreement with Macrovision IMPORTANT (http://www.macrovision.com/) about licence fee. -
Page 35: Pci-Express Connectors
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 35 of 91 PCI-Express Connectors The KT690 board contains one 8-lane (x8) PCI Express port on a PCI Express x16 connector. The PCI Express port is compliant to the PCI Express Specification revision 1.1a. The x8 port operates at a frequency of 2.5 Gb/s on each lane;... - Page 36 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 36 of 91 PRSNT#2 PEG_RXN[7]...
-
Page 37: Minipci-Express Connector
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 37 of 91 4.5.2 miniPCI-Express connector The KT690 board supports one miniPCI Express port compliant to the Mini PCI Specification, Revision 1.0. This allows for implementation for small form factor PCI cards also referred to as Mini PCI Cards. Note Type Signal... -
Page 38: Parallel Ata Harddisk Interface
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 38 of 91 Parallel ATA harddisk interface One parallel ATA harddisk controllers is available on the board – a primary controller. Standard 3½” harddisks or CD-ROM drives may be attached to the primary controller by means of the 40 pin IDC connector, PATA. -
Page 39: Ide Hard Disk Connector (Pata)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 39 of 91 4.6.1 IDE Hard Disk Connector (PATA) This connector can be used for connection of two primary IDE drives. Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note RESET_P# DA10 DA11... -
Page 40: Cf Connector (Cf)
4.6.2 CF Connector (CF) This connector is mounted on the topside of the KT690/mITX (CF is not available on KT690-FW/mITX). The CF socket support DMA/UDMA modules up to UDMA2. NOTE: If the CF connector is used then only one PATA device is supported and only by use of 40-wire cable (not 80-wire cable). -
Page 41: Serial Ata Harddisk Interface
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 41 of 91 Serial ATA harddisk interface The KT690 boards have an integrated SATA Host controller that supports independent operation on four ports and data transfer rates of up to 3.0Gb/s (300MB/s). The SATA controller supports AHCI mode and has integrated RAID functionality with support for RAID modes 0, 1 and 10. -
Page 42: Firewire/ Ieee-1394 Connectors
Firewire/ IEEE-1394 connectors. The KT690-FW/mITX board supports two IEEE Std 1394a-2000 fully compliant cable ports at 100M bits/s, 200Mbits/s, and 400M bits/s. Note: Firewire interface is not available on the KT690/mITX board. 4.8.1 IEEE1394 Connector (IEEE1394_1 and IEEE1394_2) The pinout of the Firewire / IEEE1394 connectors are as follows:... -
Page 43: Printer Port Connector (Printer)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 43 of 91 Printer Port Connector (PRINTER). The signal definition in standard printer port mode is as follows: Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note (24)/24 OC(O) STB# AFD# OC(O) (24)/24... -
Page 44: Floppy Connector (Floppy)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 44 of 91 4.10 Floppy connector (FLOPPY). The KT690 supports connection of one standard 1.44M Floppy Disk Drive. The Floppy Drive shall be connected as A: (The “last” connector on a standard Floppy Disk cable kit). Pull Pull Note... -
Page 45: Serial Ports
Page 45 of 91 4.11 Serial Ports Two RS232 serial ports are available on the KT690/mITX boards The typical interpretation of the signals in the COM ports is as follows: Signal Description Transmitte Data, sends serial data to the communication link. The signal is set to a marking state on hardware reset when the transmitter is empty or when loop mode operation is initiated. -
Page 46: Ethernet Connectors
4.12 Ethernet connectors. The KT690/mITX boards supports 2 channels of 10/100/1000Mb Ethernet RTL8111B LAN controllers. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks. -
Page 47: Usb Connector (Usb)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 47 of 91 4.13 USB Connector (USB) The KT690 boards contains one Enhanced Host Controller Interface (EHCI) host controllers that supports USB 2.0 allowing data transfers up to 480Mb/s. The KT690 boards also contains five Open Host Controller Interface (OHCI) controllers that support USB full-speed and low-speed signaling (USB 1.1). -
Page 48: Usb Connector 4/5 (Usb4/5)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 48 of 91 4.13.2 USB Connector 4/5 (USB4/5) USB Ports 4 and 5 are are supplied on the combined ETHER2, USB4, USB5 connector. Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note 5V/SB5V... -
Page 49: Usb Connector 8/9 (Usb8/9)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 49 of 91 4.13.4 USB Connector 8/9 (USB8/9) USB Ports 8 and 9 are supplied on the combined ETHER1, USB8, USB9 connector. Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note 5V/SB5V /15K... -
Page 50: Audio Connector
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 50 of 91 4.14 Audio Connector The onboard Audio circuit implements 7.1+2 Channel High Definition Audio, featuring ten 24-bit stereo DACs and two 20-bit stereo ADCs. Thew Audio signals are made available on the Frontpanel stacked connector (Line in / Line out / MIC) and the onboard AUDIO_HEAD and CDROM Audioinput connectors. -
Page 51: Audio Header (Audio_Head)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 51 of 91 4.14.3 AUDIO Header (AUDIO_HEAD) Pull Ioh/ Ioh/ Pull Note Type Signal Signal Type Note LFE-OUT CEN-OUT AAGND AAGND FRONT-OUT-L FRONT-OUT-R AAGND AAGND REAR-OUT-L REAR-OUT-R SIDE-OUT-L 11 12 SIDE-OUT-R AAGND 13 14 AAGND... -
Page 52: Fan Connectors , Fan_Cpu And Fan_Sys
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 52 of 91 4.15 Fan connectors , FAN_CPU and FAN_SYS. The FAN_CPU is used for connection of the active cooler for the CPU. The FAN_SYS can be used to power, control and monitor a fan for chassis ventilation etc. The 4pin header supports connection of 3-pin FANs, but it is recommended to use the 4-pin type for optimized FAN speed control. -
Page 53: The Clear Cmos Jumper, Clr-Cmos
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 53 of 91 4.16 The Clear CMOS Jumper, Clr-CMOS. The Clr-CMOS Jumper is used to clear the CMOS content. ↑ CPU location ↑ No Jumper installed (Pin numbers) Jumper normal position •... -
Page 54: Front Panel Connector (Frontpnl)
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 54 of 91 4.18 Front Panel connector (FRONTPNL). Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note USB13_5V USB13_5V USB1- USB3- USB1+ USB3+ LINE2-IN-L 11 12 HD_LED 13 14 SUS_LED 15 16 PWRBTN_IN# RSTIN#... -
Page 55: Feature Connector (Feature)
General Purpose Inputs / Output. These Signals may be controlled or monitored through GPIO0..7 the use of the KONTRON API (Application Programming Interface) available for WinXP and Win2000. FAN 3 speed control OUTput. This analogue voltage output signal can be set to output FAN3OUT voltages from 0 –... -
Page 56: Pci Slot Connector
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 56 of 91 4.20 PCI Slot Connector Terminal Note Type Signal Signal Type Note -12V TRST# +12V INTA# INTB# INTC# INTD# +5V (I/O) RST# PCICLK +5V (I/O) GNT0# REQ0# +5V (I/O) PME# AD31 AD30... -
Page 57: Signal Description -Pci Slot Connector
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 57 of 91 4.20.1 Signal Description –PCI Slot Connector SYSTEM PINS Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the rising edge of CLK and all other timing parameters are defined with respect to this edge. -
Page 58: Kt690 Pci Irq & Int Routing
INTB INTC INTD AD16 INT_PIRQ#A INT_PIRQ#B INT_PIRQ#C INT_PIRQ#D KT690/mITX AD16 INT_PIRQ#A INT_PIRQ#B INT_PIRQ#C INT_PIRQ#D KT690-FW/mITX When using the 820982 “PCI Riser - Flex - 2slot w. arbiter” the lower slot has IDSEL / IRQs routed straight through and the top slot has the routing: IDSEL=AD22, INT_PIRQ#F, INT_PIRQ#G, INT_PIRQ#H,... -
Page 59: Onboard Connectors
Molex 22-23-2061 Molex 22-01-2065 CDROM Foxconn HF1104E Molex 50-57-9404 Molex 70543-0038 SATA0-3 Molex 67491-0020 Molex 67489-8005 Kontron KT 821035 (cable kit) IEEE1394_0 Foxconn HC11051-P9 Kontron KT 821040 (cable kit) IEEE1394_1 ATXPWR Foxconn HM2510E Molex 39-01-2205 COM1 + COM2 Foxconn HL20051... -
Page 60: System Ressources
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 60 of 91 6. System Ressources Memory map Address range (hex) Size (bytes) Description 00000000 0009FFFF 655359 System board 000A0000 000BFFFF 131071 ATI Radeon X1200 Series 000A0000 000BFFFF 131071 PCI bus 000A0000 000BFFFF 131071... -
Page 61: Pci Devices
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 61 of 91 PCI devices Device Function Vendor Device IDSEL Chip Device Function 1002h 7910h SB600 Host brigde 1002h 7912h SB600 Pci to Pci Brigde 1002h 7916h SB600 Pci to Pci Brigde 1002h 7917h SB600... -
Page 62: Interrupt Usage
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 62 of 91 Interrupt Usage Notes • • IRQ0 • IRQ1 • IRQ2 • 1, 2 IRQ3 • 1, 2 IRQ4 • 1, 2 IRQ5 1, 2 IRQ6 • • 1, 2 IRQ7 •... -
Page 63: I/O Map
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 63 of 91 6.4 I/O Map Address (hex) Size Description 0020 0021 Programmable interupt controller 0040 0043 System timer 0060 0060 Standard Keyboard 0061 0061 System speaker 0064 0064 Standard Keyboard 0070 0071 System CMOS/Real time clock... -
Page 64: Overview Of Bios Features
7. Overview of BIOS features This Manual section details specific BIOS features for the KT690 boards. The KT690 boards are based on the AMI BIOS core version 8.10 with Kontron BIOS extensions. System Management BIOS (SMBIOS / DMI) SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network. -
Page 65: Bios Configuration / Setup
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 65 of 91 8. BIOS Configuration / Setup Introduction The BIOS Setup is used to view and configure BIOS settings for the KT690 board. The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins. -
Page 66: Advanced Menu
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 66 of 91 Advanced Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Advanced Settings Configure CPU. Warning: Setting wrong values in below sections may cause system to malfunction. >... -
Page 67: Advanced Settings - Ide Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 67 of 91 8.3.2 Advanced settings – IDE Configuration BIOS SETUP UTILITY Advanced Options IDE Configuration Controls the 40Pin OnBoard PCI IDE Controller [Primary] PATA connector and OnChip SATA Type [Enabled] CF interface. - Page 68 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 68 of 91 BIOS SETUP UTILITY Advanced Primary IDE Master Select the type of devices connected to Device :Hard Disk the system Vendor :ST340014A Size :40.0GB LBA Mode :Supported Block Mode :16Sectors PIO Mode Async DMA...
- Page 69 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 69 of 91 Feature Options Description Hard Disk Write Protect Enable write protection on HDDs, only works when Disabled Enabled it is accessed through the BIOS IDE Detect Time Out (Sec) Select the time out value when the BIOS is detecting ATA/ATAPI Devices ATA(PI) 80Pin Cable...
-
Page 70: Advanced Settings - Lan Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 70 of 91 8.3.3 Advanced settings – LAN Configuration BIOS SETUP UTILITY Advanced Control of Ethernet LAN Configuration Devices and PXE boot ETH1 Configuration (Left) [Enabled] MAC Address : 00E0F4000001 ETH2 Configuration (Right) [Enabled] MAC Address : 00E0F4000002... -
Page 71: Advanced Settings - Super Io Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 71 of 91 8.3.5 Advanced settings – Super IO Configuration BIOS SETUP UTILITY Advanced Allows BIOS to Enable Configure Win627DHG Super IO Chipset or Disable Floppy OnBoard Floppy Controller [Enabled] Controller. Serial Port1 Address [3F8/IRQ4] Serial Port2 Address... -
Page 72: Advanced Settings - Hardware Health Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 72 of 91 8.3.6 Advanced settings – Hardware Health Configuration BIOS SETUP UTILITY Advanced Disable = Full Speed Hardware Health Configuration System Temperature :37ºC/98ºF Thermal: Does regulate CPU Temperature :43ºC/109ºF fan speed according to External Temperature Sensor :N/A specified temperature... -
Page 73: Advanced Settings - Voltage Monitor
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 73 of 91 8.3.7 Advanced settings – Voltage Monitor BIOS SETUP UTILITY Advanced Enable Hardware Health Voltage Monitor Monitoring Device. Requested Core :1.100 V Vcore :1.088 V AVCC :3.248 V 3VCC :3.248 V +12Vin :12.029 V... -
Page 74: Advanced Settings - Remote Access Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 74 of 91 8.3.9 Advanced settings – Remote Access Configuration BIOS SETUP UTILITY Advanced Select Remote Access Configure Remote Access type and parameters type. Remote Access [Enabled] Serial port number [COM1] Base Address, IRQ [3F8h, 4] Serial Port Mode... -
Page 75: Advanced Settings - Trusted Support
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 75 of 91 8.3.10 Advanced settings – Trusted Support BIOS SETUP UTILITY Advanced Enables/Disable TPM Trusted Computing TCG (Tpm 1.1/1.2) TCG/TPM Support [No] Support in Bios <- Select Screen Select Item change option General Help Save and Exit... -
Page 76: Advanced Settings - Usb Mass Storage Device Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 76 of 91 8.3.12 Advanced settings – USB Mass Storage Device Configuration BIOS SETUP UTILITY Advanced Number of seconds POST USB Mass Storage Device Configuration waits for the USB mass USB Mass Storage Reset Delay [20 Sec] storage device after start unit command. -
Page 77: Pcipnp Menu
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 77 of 91 PCIPnP Menu BIOS SETUP UTILITY PCIPnP Advanced PCI/PnP Settings NO: lets the BIOS configure all the Warning: Setting wrong values in below sections devices in the system. May cause system to malfunction. YES: lets the operating system Plug &... -
Page 78: Boot Menu
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 78 of 91 Boot Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Boot Settings Configure Settings during System Boot. > Boot Settings Configuration > Boot Device Priority <- Select Screen Select Item Enter Go to Sub Screen... -
Page 79: Boot - Boot Settings Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 79 of 91 8.5.1 Boot – Boot Settings Configuration BIOS SETUP UTILITY Boot Configure Settings Boot Settings during System Boot. Quick Boot [Enabled] Quiet Boot [Disabled] AddOn ROM Display Mode [Force BIOS] Bootup Num-Lock [On] <-... -
Page 80: Boot - Boot Device Priority
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 80 of 91 8.5.2 Boot – Boot Device Priority BIOS SETUP UTILITY Boot Specifies the boot Boot Device Priority sequence from the available devices. 1st Boot Device [ESS-ST380811AS] A device enclosed in paranthesis has been disabled in the corresponding type... -
Page 81: Security Menu
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 81 of 91 Security Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Install or Change the Security Settings password. Supervisor Password :Installed User Password :Installed Change Supervisor Password Change User Password Boot Sector Virus Protection [Disabled]... -
Page 82: Chipset Menu
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 82 of 91 Chipset Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Advanced Chipset Settings Configures North Bridge features. Warning: Setting wrong values in below sections may cause system to malfunction. >... -
Page 83: Advanced Chipset Settings - Southbridge Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 83 of 91 8.7.2 Advanced Chipset Settings – SouthBridge Configuration BIOS SETUP UTILITY Chipset Disabled South Bridge Chipset Configuration 2 USB Ports > SB HD Azalia Configuration 4 USB Ports 6 USB Ports USB 1.1 OHCI Controllers [Enabled] 8 USB Ports... -
Page 84: Advanced Chipset Settings - Amd 690G Configuration
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 84 of 91 8.7.3 Advanced Chipset Settings - AMD 690G Configuration BIOS SETUP UTILITY Chipset Internal Graphics AMD 690G Configuration Configuration > Internal Graphics Configuration > Display Configuration <- Select Screen Select Item Enter Go to Sub Screen General Help... - Page 85 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 85 of 91 Internal Graphics Configuration: BIOS SETUP UTILITY Chipset Disabled Internal Graphics Configuration Internal Graphics Mode [UMA] UMA Frame Buffer Size [Auto] Current UMA Size [128MB] Primary Video Controller [PCIE/IGFX/PCI] <- Select Screen Select Item...
- Page 86 KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 86 of 91 Displays Configuration: BIOS SETUP UTILITY Chipset Display module V0.04 Displays Configuration LVDS [None] Backlight Signal Inversion [Disabled] LCDVCC Voltage [3.3V] TMDS Support [Auto] <- Select Screen Select Item Enter Go to Sub Screen General Help Save and Exit...
-
Page 87: Power
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 87 of 91 8.8 Power BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Enable/Disable SMI Exit Options based power management and APM support Power Management/APM [Enabled] Power Button Mode [On/Off] Restore on AC Power Loss [Power On]... -
Page 88: Exit Menu
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 88 of 91 8.9 Exit Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Exit system setup Exit Options after saving the changes. Save Changes and Exit Discard Changes and Exit F10 Key can be used Discard Changes for this operation. -
Page 89: Ami Bios Beep Codes
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 89 of 91 9. AMI BIOS Beep Codes Boot Block Beep Codes: Number of Description Beeps Insert diskette in floppy drive A: ‘AMIBOOT.ROM’ file not found in root directory of diskette in A: Base Memory error Flash Programming successful Floppy read error... -
Page 90: Os Setup
KT690 Family KTD-00738-C Public User Manual Date: 2008-09-16 Page 90 of 91 10. OS setup Use the Setup.exe files for all relevant drivers. The drivers can be found on KT690 Driver CD or they can be downloaded from the homepage www.kontron.com... -
Page 91: Ktd-00738-C Public User Manual Date: 2008-09-16
91 of 91 11. Warranty KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product.
