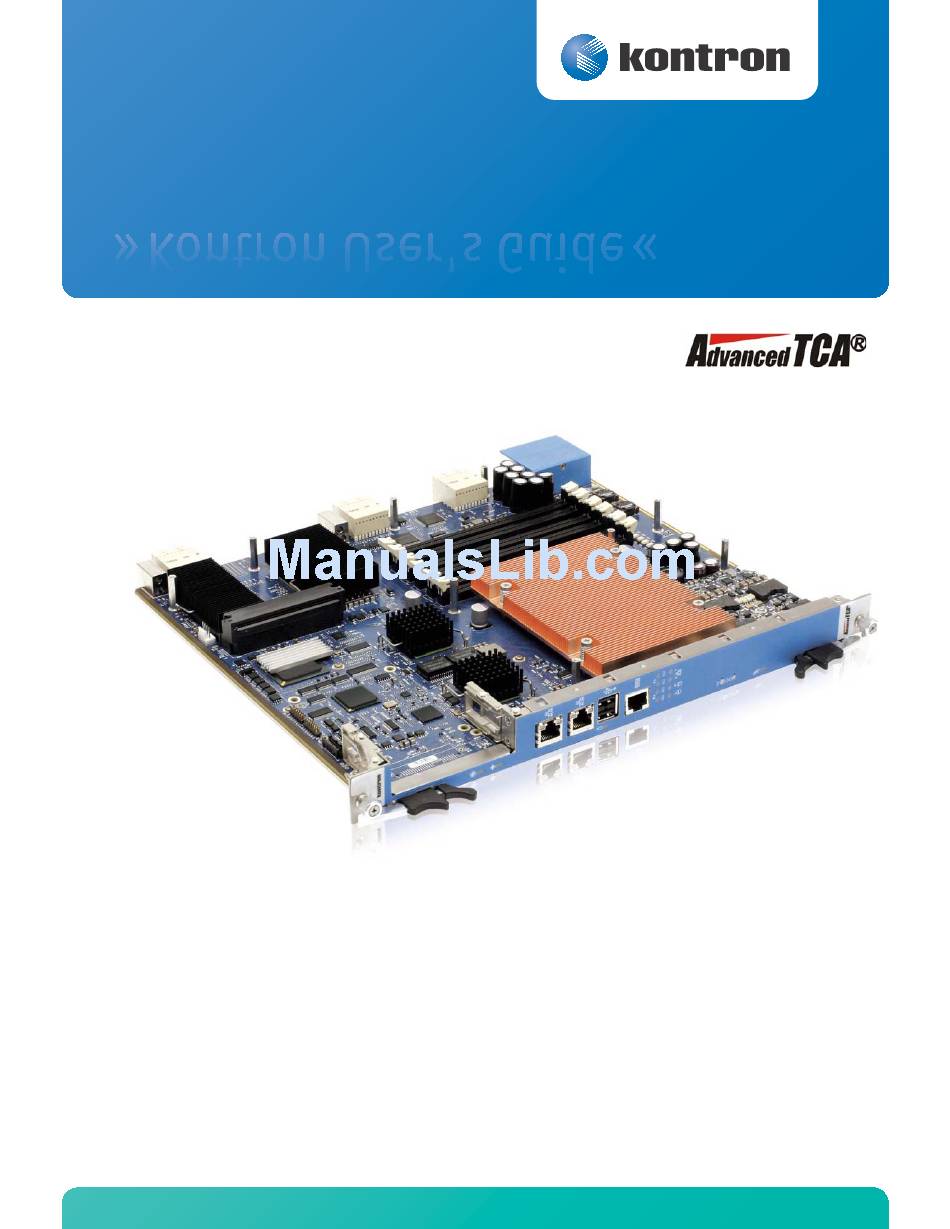

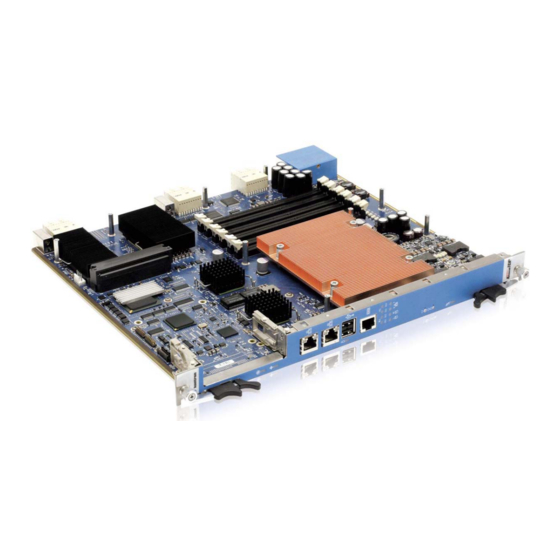

» Kontron User's Guide «
AT8050
Document Revision 1.5
January 2014
If it's embedded, it's Kontron.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AdvancedTCA AT8050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron AdvancedTCA AT8050

Summary of Contents for Kontron AdvancedTCA AT8050

  • Page 1 » Kontron User's Guide « AT8050 Document Revision 1.5 January 2014 If it's embedded, it's Kontron.

  • Page 2: Revision History

    © 2011 Kontron, an International Corporation. All rights reserved. The information in this user's guide is provided for reference only. Kontron does not assume any liability arising out of the application or use of the information or products described herein. This user's guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Kontron, nor the rights of others.

  • Page 3: Table Of Contents

    USB Flash Module ............12 AT8050...
  • Page 4 Removing the RTM8050 ...........36 AT8050...
  • Page 5 Thermal Profile ............120 AT8050...
  • Page 6 Kontron I/O Mapping........
  • Page 7 Figure 6-3: CPU Thermal Profile ............120 AT8050...
  • Page 8 Table 4-26 AMC connectivity details for "Intel IOH PCI-Express Root Complex Port 3" ....66 Table 4-27 AMC connectivity details for "Intel IOH PCI-Express Root Complex Port 8" ....68 AT8050 www.kontron.com...
  • Page 9 Table 6-2 Pressure curve AT8050 with AMC Filler........

  • Page 10: Safety Instructions

    • Use extreme caution when installing or removing components. Refer to the installation instructions in this user's guide for precautions and procedures. If you have any questions, please contact Kontron Technical Support WARNING High voltages are present inside the chassis when the unit's power cord is plugged into an electrical outlet.

  • Page 11: Preventing Electrostatic Discharge

    Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Kontron strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment.

  • Page 12: Preface

    This user's guide is designed to be used as step-by-step instructions for installation, and as a reference for operation, troubleshooting, and upgrades. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned.

  • Page 13: Customer Comments

    Disclaimer: We have tried to identify all situations that may pose a warning or a caution condition in this user's guide. However, Kontron does not claim to have covered all situations that might require the use of a Caution or a Warning.

  • Page 14: Unpacking

    Unpacking Follow these recommendations while unpacking: •Remove all items from the box. If any items listed on the purchase order are missing, notify Kontron customer service immediately. •Inspect the product for damage. If there is damage, notify Kontron customer service immediately.

  • Page 15: Regulatory Compliance Statements

    Testing and reports when required are performed under the international IECEE CB Scheme. Please consult the "Kontron Safety Conformity Policy Guide" for more information. For Canada and USA input voltage must not exceed -60Vdc for safety compliance.

  • Page 16: Limited Warranty

    In the event of repair, refunding or replacement of any part, the ownership of the removed or replaced parts reverts to Kontron, and the remaining part of the original guarantee, or any new guarantee to cover the repaired or replaced items, will be transferred to cover the new or repaired items.
  • Page 17 Chapter 1 Product Description 1.1 Product Overview ..........2 1.2 What’s Included ..........2 1.3 Board Specifications .......... 3 1.4 Compliance ............5 1.5 Hot-Plug Capability..........5 1.6 Interfacing with the Environment ......5 AT8050 www.kontron.com...

  • Page 18: Product Description

    The AT8050 is a single-socket design with two featurerich processor options: an Intel Xeon Quad-Core L5518 (45nm) processor; or an Intel Xeon Six-Core L5638 (32nm) processor (BIOS 3.00 and highier). Both feature an Integrated Memory Controller, Turbo Boost Technology, Intel®...

  • Page 19: Board Specifications

    Field updateable BIOS • Advanced Configuration and Power Interface (ACPI 1.0, 2.0 & 3.0) • Console redirection to serial port (VT100)with CMOS setup access, and SOL (Serial over LAN) • Event (correctable/uncorrectable ECC, POST errors); log support to IPMC AT8050 www.kontron.com...
  • Page 20 Safety / EMC • Safety: UL 60950-1; CSA C22.2 No 60950-1-03; EN 60950-1:2001; IEC60950-1 • EMI/EMC: FCC 47 CFR Part 15, Class B; CE Mark to EN55022/EN55024/EN300386 Warranty Two years limited warranty * Designed to meet or exceed AT8050 www.kontron.com...

  • Page 21: Compliance

    Hot-Plug Capability The AT8050 supports Full Hot Swap capability as per PICMG3.0R3.0 for the board itself and AMC bay. It can be removed from or installed in the system while it is on (without powering-down the system). Please refer to the PICMG3.0R3.0 specification for additional details about Hot Swap.
  • Page 22 OFF the payload +12V power. When it is safe to remove the RTM blade from the slot, the IPMC turns the Blue / Hot Swap LED ON. Front Blade IPMC turns OFF the management power only when there is no RTM detected. (RTM8050 removed from the slot) AT8050 www.kontron.com...

  • Page 23: Advanced Mezzanine Card

    Product Description 1.6.2 Advanced Mezzanine Card The AT8050 has one AMC bay. Using a mezzanine allows to add storage or I/O not provided on board. 1.6.2.1 AMC Expansion The AMC slot provides an AMC.1 type 4, AMC.2 Type E2 and 4, AMC.3 Dual Port SAS. This means that the following signaling are supported: •...
  • Page 24 2.8 Redundant BIOS Flash ........13 2.9 Ethernet Interfaces..........14 2.10 Serial Interfaces..........24 2.11 AMC Mezzanine ..........24 2.12 FPGA............... 26 2.13 Telecom Clock Option ......... 26 2.14 Redundant IPMC Firmware & BootBlock....26 2.15 LEDs Description ..........27 www.kontron.com...

  • Page 25: Board Features

    (* %? % )5  *< = * .B 4 /    %% % 4$ &% '&(    ))  ) )&% '&(  A )5   173 (*  *<   AT8050 www.kontron.com...

  • Page 26: System Core

    • Direct Media Interface (DMI, ESI) x4 lanes for communicating with the Intel IOH • Real Time Clock • Serial ATA controller • Advanced Host Controller Interface • Intel Matrix Storage Technology • Low Pin Count (LPC) Interface • Serial Peripheral Interface AT8050 www.kontron.com...

  • Page 27: Usb 2.0 Interfaces

    Table 2-1:USB Connector Pinout Signal DATA- DATA+ Signal Path: - 2 USB 2.0 on front panel (J10) - 2 USB 2.0 on the RTM front panel BIOS Settings: Advanced --> USB Configuration AT8050 www.kontron.com...

  • Page 28: Usb Flash Module

    PCI Express connection or through the Update Channel Interface such as the Kontron carrier AMC AT8402. If the RTM controller is used, a SAS or SATA hard drive can be located in the AT8050 AMC bay or...

  • Page 29: Serial Ata (Ich10R)

    Redundant BIOS Flash Two BIOS SPI flash are present on the AT8050. If for some reason a BIOS update corrupts a flash and it prevents the CPU from completing the boot sequence, the IPMC will swap the active SPI flash and force a reboot.

  • Page 30: Ethernet Interfaces

    The fabric interface can be either 10GbE or 1GbE. An E-Keying configuration is required to properly route the desired connection speed. The AT8050 has boot from LAN capability (PXE) or iSCSI support on these ports. Enable the option from the BIOS Setup Program. Please refer to Section 5.1, AMI BIOS Set-up Program.

  • Page 31: Base Interface

    • AMC (port 0-1) • RTM • The Fabric Interface (disables 10GbE connectivity) Signal Path: The front panel, or on the AMC, or on the RTM. BIOS Settings: Advanced --> Expansion ROM Configuration System Management --> OEM E-Keying Configuration AT8050 www.kontron.com...

  • Page 32: Ethernet Interfaces Configuration

    82576EB Paths are configurable in BIOS Note: - The AMC must be able to support GbE on ports 8-11 - Connection from AMC to the Fabric Interface is either PICMG3.1 option 2 (2x1GbE) or PICMG3.1 option 1 (1xGbE). AT8050 www.kontron.com...

  • Page 33: Figure 2-3: 10Gbe And Management To Front Panel

    Channel 1 Front Copper 2x RJ-45 Base Interface Channel 2 Copper 82576EB BIOS Settings: 1) System Management --> OEM E-Keying Configuration --> Management LAN Setting: Front Panel 2) System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Disabled AT8050 www.kontron.com...

  • Page 34: Figure 2-4: 10Gbe And Management To Amc

    Base Interface Channel 1 Front 2x RJ-45 Base Interface Channel 2 Copper 82576EB BIOS Settings: 1)System Management --> OEM E-Keying Configuration --> Management LAN Setting: AMC.2 Module 2)System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Disabled AT8050 www.kontron.com...

  • Page 35: Figure 2-5: 10Gbe And Management To Rtm

    Base Interface Channel 1 Front 2x RJ-45 Base Interface Channel 2 Copper 82576EB BIOS Settings: 1) System Management --> OEM E-Keying Configuration --> Management LAN Setting: RTM 2) System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Disabled AT8050 www.kontron.com...

  • Page 36: Figure 2-6: Amc To Fabric Interface And Management To Front Panel

    1) System Management --> OEM E-Keying Configuration --> Management LAN Setting: Front Panel 2) System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Fabric Interface In this configuration, it is not possible to boot from the Fabric Interface AT8050 www.kontron.com...

  • Page 37: Figure 2-7: Amc To Fabric Interface And Management To Amc

    1) System Management --> OEM E-Keying Configuration --> Management LAN Setting: AMC.2 Module 2) System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Fabric Interface In this configuration, it is not possible to boot from the Fabric Interface AT8050 www.kontron.com...

  • Page 38: Figure 2-8: Amc To Fabric Interface And Management To Rtm

    1) System Management --> OEM E-Keying Configuration --> Management LAN Setting: RTM 2) System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Fabric Interface In this configuration, it is not possible to boot from the Fabric Interface AT8050 www.kontron.com...

  • Page 39: Figure 2-9: Management To Fabric Interface

    Base Interface Channel 1 Front 2x RJ-45 Base Interface Channel 2 Copper 82576EB BIOS Settings: 1)System Management --> OEM E-Keying Configuration --> Management LAN Setting: Fabric Interface System Management --> OEM E-Keying Configuration --> AMC P8-11 Setting: Disabled AT8050 www.kontron.com...

  • Page 40: 2.10 Serial Interfaces

    2.10 Serial Interfaces The AT8050 uses serial interfaces to manage the CPU. Since no video interface is provided on board, the only way to get visual information on the board is the serial console. Serial ports are provided on the faceplate and on the RTM faceplate for asynchronous serial communications.

  • Page 41: Bios Settings

    AMC port 3 is supplied by the RTM for SAS connectivity. The telco clock signals allow the AT8050 to provide clocks to the AMC on TCLKA and TCLKC. It also allows an AMC to retrieve a clock and to provide it to the system through TCLKB and TCLKD. For possible clock frequency and connection with the backplane, refer to section Telecom Clock Option.

  • Page 42: 2.12 Fpga

    IPMC firmware image in dedicated SPI flash memory. The Boot Block manages the IPMC reprogramation and can rollback to the previous firmware image in the IPMC internal flash in case of update problem. Note: The IPMC has an external hardware watchdog AT8050 www.kontron.com...

  • Page 43: 2.15 Leds Description

    The AdvancedTCA LED2 is green or amber and indicates a healthy condition. The healthy LED indicates if the blade is powered up and all voltages and temperatures are within specifications. During normal operation, this LED is ON (green). This LED is also ON (amber) when one of the RTM8050 voltage or temperature fails. AT8050 www.kontron.com...

  • Page 44: Figure 2-10: Faceplate Leds

    Disk activity is obtained directly from the ICH for SATA and from RTM-Link for SAS links of the SAS controller located on the RTM. If the SAS controller is accessed through the Update Channel it doesn't provide any activity status. AT8050 www.kontron.com...
  • Page 45 Chapter 3 Installing the Board 3.1 Setting Jumpers..........30 3.2 Processor............31 3.3 Memory ............31 3.4 Onboard Connectors and Headers ......34 3.5 Board Hot Swap and Installation ......35 www.kontron.com...

  • Page 46: Installing The Board

    Reserved Reserved JP2 (9-10) Reserved Reserved JP2 (11-12) Reserved Reserved JP2 (13-14) 3.1.2 Setting Jumper & Locations Figure 3-1: Jumper Settings and Locations Note: More details about the jumper settings can be found on the Quick Reference Sheet. AT8050 www.kontron.com...

  • Page 47: Processor

    Kontron facility. Do not attempt any heat sink removal. Memory The AT8050 has 3 memory channels connected to the main CPU. There are 2 DIMMs per memory channels for a total of 6. The AT8050 accepts DDR3, VLP(very low-profile) (0.72 inch; 18.29mm), 1.5V typical, registered, ECC, x4 or x8 memory with up to 4 ranks per DIMM.

  • Page 48: Memory List And Characteristics

    Keep the board in its anti-static package, until you are ready to install memory. Wear a grounding wrist strap before removing the board from its package; this will discharge any static electricity that may have built up in your body. Handle the board by the faceplate or its edges. AT8050 www.kontron.com...

  • Page 49: Installing Memory

    Repeat these steps to populate the other socket. To remove a memory module from a socket, push sideway the retaining clips on each side of the socket, to release the module. Pull out the memory from the socket. AT8050 www.kontron.com...

  • Page 50: Onboard Connectors And Headers

    RJ-45 Serial Port connector DDR3 Memory Sokcets J13-J18 Memory Sockets Synchronisation Clcocks, Update Channel USB Flash Drive 9 pins header for the USB Flash Drive Mezzanine Base Interface & Fabric Interface Power & IPMB Figure 3-2:Onboard Connectors and Headers Locations AT8050 www.kontron.com...

  • Page 51: Board Hot Swap And Installation

    3 Wait until the blue LED is fully ON, this mean that the hot swap sequence is ready for board removal. 4 Use both ejectors to disengage the board from the backplane. 5 Pull the board out of the chassis. AT8050 www.kontron.com...

  • Page 52: Installing An Amc

    3 Wait until the blue LED is fully ON, this mean that the hot swap sequence is ready for board removal. 4 Use both ejectors to disengage the board from the CPU board. 5 Pull the board out of the chassis. AT8050 www.kontron.com...
  • Page 53 Chapter 4 Hardware Management 4.1 Hardware Management Overview ......38 4.2 Hardware Management Functionality ....38 4.3 IPMC ............... 40 www.kontron.com...

  • Page 54: Hardware Management

    If an IPM Controller is unable to transmit on the desired IPMB then it tries to send the message on the alternate IPMB. By using this approach, an IPMB can become unavailable and then available without the IPM Controller needing to take specific action. AT8050 www.kontron.com...

  • Page 55: Sensors

    IPMC - System Event Log The Kontron IPMC implementation includes a Local System Event Log device as specified in the Section 31 of [IPMI 2.0]. The local System Event Log is a nonvolatile repository for the front board and all managed FRU events (AMC/RTM).

  • Page 56: Ipmc

    The table below lists the IPMI commands supported by the IPMC. This table is identical as the one provided by AMC.0 and PICMG 3.0. The last column states the Kontron support for the specific command. Table 4-1:IPM Device Supported Commands for IPMC IPMI Spec.
  • Page 57 IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC Get Message Flags Enable Message Channel 22.5 Receive Get Message 22.6 Send Message 22.7 Read Event Message 22.8 Buffer Get BT Interface 22.10 Capabilities Get System GUID 22.14...

  • Page 58: Table 4-4 Chassis Device Supported Commands For Ipmc

    IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC Get Channel Cipher 22.15 Suites Suspend/Resume 24.3 Payload Encryption Set Channel Security 22.25 Keys Get System Interface 22.9 Capabilities Table 4-4:Chassis Device Supported Commands for IPMC IPMI Spec.

  • Page 59: Table 4-6 Pef And Alerting Supported Commands For Ipmc

    Table 4-6:PEF and Alerting Supported Commands for IPMC IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC PEF and Alerting Commands Get PEF Capabilities 30.1 Arm PEF Postpone Timer 30.2 Set PEF Configuration 30.3 Parameters Get PEF Configuration 30.4...

  • Page 60: Table 4-8 Fru Device Supported Commands For Ipmc

    Table 4-8:FRU Device Supported Commands for IPMC IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC FRU Device Commands Get FRU Inventory Area 34.1 Storage Info Read FRU Data 34.2 Storage Write FRU Data 34.3...

  • Page 61: Table 4-11 Lan Device Supported Commands For Ipmc

    Storage Set Auxiliary Log Status 31.13 Storage Table 4-11:LAN Device Supported Commands for IPMC IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC LAN Device Commands Set LAN Configuration 23.1 Transport Parameters Get LAN Configuration 23.2...

  • Page 62: Table 4-13 Sol Commands

    IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC Serial/Modem 25.9 Transport Connection Active Callback 25.10 Transport Set User Callback 25.11 Transport Options Get User Callback 25.12 Transport Options Table 4-13:SOL Commands IPMI Spec. section NetFn IPMI BMC req.

  • Page 63: Table 4-15 Amc.0 Carrier Commands For Ipmc

    IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC Compute Power 3-82 PICMG Properties Set Power Level 3-84 PICMG Get Power Level 3-83 PICMG Renegotiate Power 3-91 PICMG Get Fan Speed Properties 3-86 PICMG if controls Shelf...

  • Page 64: Sensor Data Records

    Table 4-16:HPM Commands IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC Get Target Upgrade Capabilities Get Component Properties Abort Firmware Upgrade Initiate Upgrade Action Upload Firmware Block Finish Firmware Upload Get Upgrade Status Activate Firmware...

  • Page 65: Table 4-17 Ipmc Sensors

    IPMI v1.5 section 29.13.3 for threshold based event I/O Hub (IOH) Chipset Temperature (Degrees) Sensor type = 01h temperature Temp IOH Threshold Event Reading type code = 01h threshold based see IPMI v1.5 section 29.13.3 for threshold based event AT8050 www.kontron.com...
  • Page 66 Power consumption in watts of the complete blade (including managed FRU) Sensor type = 0Bh Other Unit-Based Sensor (Watt) Brd Input Power Threshold Event Reading type code = 01h threshold base see IPMI v1.5 section 29.13.3 for threshold based event AT8050 www.kontron.com...
  • Page 67 IPMI v1.5 section 29.13.3 for threshold based event Voltage on board Vcore payload power supply (Volts) Sensor type = 02h voltage Vcc Vcore Threshold Event Reading type code = 01h threshold based see IPMI v1.5 section 29.13.3 for threshold based event AT8050 www.kontron.com...
  • Page 68 DIMM#3 Temperature Sensor Presence Sensor type = 25h Entity Presence, Event DIMM#3 SPD Pres Discrete Reading type code = 6Fh Sensor specific, only offset 0,1 are used, -see IPMI v1.5 table 36.3, Sensor type code 25h (Entity Presence) for sensor definition AT8050 www.kontron.com...
  • Page 69 Power Supply, Event Reading type code = 6Fh Sensor specific, only offset 0,1 are used, -see IPMI v1.5 table 36.3, Sensor type code 08h for sensor definition Board Power State Sensor type = D0h Kontron OEM Power State Sensor Event Power State...
  • Page 70 (Kontron OEM IPMB-L link state), Event Reading type code = 6Fh Sensor FRU0 IPMBL State Discrete specific, offset 2 and 3 are used, -see OEM table, Sensor type code C3h (Kontron OEM IPMB-L Link State) for sensor definition IPMB-L branch from FRU1 fault detection sensor. Sensor type = C3h OEM...
  • Page 71 Sensor Name Sensor Class Description (Sensor Type, Event trigger) FRU Over Current Sensor Sensor type = CBh OEM (Kontron OEM FRU Over Current) Event Reading type code = 03h Digital Discrete offset 0,1 are used, -see OEM FRU Over Icc...

  • Page 72: Table 4-18 Ipmc Health Indicator Sensor Aggregation Table

    Jumper Status Discrete Event Reading type code = 6Fh Sensor specific, offsets 0 to 14 are used -see OEM table, Sensor type code D3h (Kontron OEM Jumper Status) for sensor definition Internal Management Controller firmware diagnostic Sensor type = C0h Kontron...
  • Page 73 Feed A/B Status Fuse-Pres A Feed Fuse-Pres B Feed Fuse-RTN A Feed Fuse-RTN B Feed Fuse-Earl A Feed Fuse-Earl B Feed Power Good Power Good Event Board Reset POST Error Critical Int Memory CMOS Mem Size CMOS Passwd AT8050 www.kontron.com...

  • Page 74: Fru Information

    *Calculated Language code 0x19 Manufacturing Date / *Based on mfg. date Time Board Manufacturer *Calculated type/length Board Manufacturer "KONTRON " Board Name type/length *Calculated Board Name “AT8050” Board Serial Number *Calculated type/length Board Serial Number *10 digits serial number Board Part Number...

  • Page 75: Table 4-20 Product Information Area

    Value (hex) Format Version 0x01 Product Area Length *Calculated Language code 0x19 Product Manufacturer *Calculated type/length Product Manufacturer "KONTRON " Product Name type/ *Calculated length Product Name “AT8050” Product Part Number *Calculated type/length T5007AA#_R-ZZZZZ Product Part Number (R= Board revision) (Z=config.

  • Page 76: Table 4-21 E-Keying Capabilities Of The Board

    02h : PICMG 3.1 Ethernet Fabric Interface Link Designator (Bits 11-0) 141h : Fabric Interface, Channel 1, Port 0 Link Descriptor 00102F42h Link Grouping ID (Bits 31-24) 0h : Single-Channel link Link Type Extension (Bits 23-20) 1h : Fixed 10GBASE-BX4 [XAUI] AT8050 www.kontron.com...

  • Page 77: Table 4-22 Amc Carrier Activation And Carrier Information Table

    Carrier Activation and Power Descriptors. 7Ah, 22h, FFh Local IPMB Address Maximum Module Current 29h (4.1 A @ 12 V ) => 49.2 Watts Reserved The Carrier Information Table gives the Carrier AMC.0 specification version and the Carrier's AMC sites list. AT8050 www.kontron.com...

  • Page 78: Table 4-23 Carrier Amc.0

    The Carrier Point-To-Point Connectivity record gives the list of available point-to-point link paths between On-Carrier Devices and AMC Sites. The record's content is given by the following table. Table 4-25:Record's content Field Value Record Type ID Record format version Record Length *Calculated Record Checksum *Calculated Header Checksum *Calculated AT8050 www.kontron.com...
  • Page 79 Point-to-Point Port Descriptor 008001h Reserved (Bits 23-18) Local Port (Bits 13-17) Remote Port (Bit 12-8) 01h ->Carrier, Device 1 Remote Resource ID (Bits 7-0) (Intel IOH PCI-Express Root Complex Port 7) Point-to-Point Port Descriptor 00a101h Reserved (Bits 23-18) AT8050 www.kontron.com...
  • Page 80 Local Port (Bits 13-17) Remote Port (Bit 12-8) 05h ->Carrier, Device 5 Remote Resource ID (Bits 7-0) (Fabric Channel 2 via OnBoard Switch) Point-to-Point Port Descriptor 01ed07h Reserved (Bits 23-18) Local Port (Bits 13-17) Remote Port (Bit 12-8) AT8050 www.kontron.com...
  • Page 81 Reserved (Bits 23-18) Local Port (Bits 13-17) Remote Port (Bit 12-8) 00h ->Carrier, Device 0 Remote Resource ID (Bits 7-0) (Intel IOH PCI-Express Root Complex Port 3) Point-to-Point Port Descriptor 00c200h Reserved (Bits 23-18) Local Port (Bits 13-17) AT8050 www.kontron.com...

  • Page 82: Table 4-26 Amc Connectivity Details For "Intel Ioh Pci-Express Root Complex Port 3

    Table 4-26:AMC connectivity details for "Intel IOH PCI-Express Root Complex Port 3" Field Value Record Type ID Record format version Record Length *Calculated Record Checksum *Calculated Header Checksum *Calculated Manufacturer ID 00315Ah PICMG Record ID 19h (AMC Point-To-Point Connectivity Record) Record Format Version AT8050 www.kontron.com...
  • Page 83 AMC Link Type Extension (Bits 23-20) 00h (Gen1 NO SSC) AMC Link Type (Bits 19-12) 02h (AMC.1 PCI Express) The following table gives AMC connectivity details for "Intel IOH PCI-Express Root Complex Port 8" (On- Carrier Device 1). AT8050 www.kontron.com...

  • Page 84: Table 4-27 Amc Connectivity Details For "Intel Ioh Pci-Express Root Complex Port 8

    Link Grouping ID (Bits 31-24) 00h (Single-Channel Link) AMC Link Type Extension (Bits 23-20) 01h (Gen1 SSC) AMC Link Type (Bits 19-12) 02h (AMC.1 PCI Express) AMC Link Designator (Bits 11-0) F01h: AMC Channel 1,Lane0,1,2,3 AMC Link Descriptor FE00002f01h Reserved (Bits 39-34) AT8050 www.kontron.com...
  • Page 85 AMC Link Type Extension (Bits 23-20) 00h (Gen1 NO SSC) AMC Link Type (Bits 19-12) 02h (AMC.1 PCI Express) AMC Link Designator (Bits 11-0) 101h: AMC Channel 1,Lane0 The following table gives AMC connectivity details for "Intel ICH10 SATA Controller" (On-Carrier Device 2). AT8050 www.kontron.com...

  • Page 86: Table 4-28 Amc Connectivity Details For "Intel Ich10 Sata Controller

    AMC Link Type Extension (Bits 23-20) 01h (Serial ATA) AMC Link Type (Bits 19-12) 07h (AMC.3 Storage) AMC Link Designator (Bits 11-0) 103h: AMC Channel 3,Lane0 The following table gives AMC connectivity details for "Intel 82576EB (front/rear)" (On-Carrier Device 3). AT8050 www.kontron.com...

  • Page 87: Table 4-29 Amc Connectivity Details For "Intel 82576Eb Nc (Front/Rear)

    AMC Asymmetric Match (Bits 33-32) 00h (Exact match) Link Grouping ID (Bits 31-24) 00h (Single-Channel Link) AMC Link Type Extension (Bits 23-20) 00h (1000 BaseBX) AMC Link Type (Bits 19-12) 05h (AMC.2 Ethernet) AMC Link Designator (Bits 11-0) 105h: AMC Channel 5,Lane0 AT8050 www.kontron.com...

  • Page 88: Table 4-30 Amc Connectivity Details For "Onboard Fabric Channel 1 Switch

    AMC Asymmetric Match (Bits 33-32) 00h (Exact match) Link Grouping ID (Bits 31-24) 00h (Single-Channel Link) AMC Link Type Extension (Bits 23-20) 00h (1000 BaseBX) AMC Link Type (Bits 19-12) 05h (AMC.2 Ethernet) AMC Link Designator (Bits 11-0) 107h: AMC Channel 7,Lane0 AT8050 www.kontron.com...

  • Page 89: Table 4-31 Amc Connectivity Details For "Onboard Fabric Channel 2 Switch

    AMC Link Type Extension (Bits 23-20) 00h (1000 BaseBX) AMC Link Type (Bits 19-12) 05h (AMC.2 Ethernet) AMC Link Designator (Bits 11-0) 108h: AMC Channel 8,Lane0 AMC Link Descriptor FC00005109h Reserved (Bits 39-34) AMC Asymmetric Match (Bits 33-32) 00h (Exact match) AT8050 www.kontron.com...

  • Page 90: Table 4-32 Amc Connectivity Details For "Fpga Based Uart

    AMC Link Type Extension (Bits 23-20) 00h (None) AMC Link Type (Bits 19-12) F0h (OEM Module Serial Console Interconnect) AMC Link Designator (Bits 11-0) 10Ah: AMC Channel 10,Lane0 The AMC connectivity details for "On-Carrier Virtual RTM Device" is embedded on the RTM itself. AT8050 www.kontron.com...

  • Page 91: Clock E-Keying Information

    0x00 On-Carrier Clock Id 0 Remote Clock Id 0x05 AMC.0 R2.0 FCLKA clock 7:6 01b = AMC Remote Clock Resource Id 0x45 5:4 0h (reserved) 3:0 AMC Site Number ( 5 = AMC B1) Clock Point-To-Point Resource Descriptor AT8050 www.kontron.com...
  • Page 92 Local Clock Id 0x06 On-Carrier Clock Id 6 Remote Clock Id 0x01 TCLKA 7:6 01b = AMC Remote Clock Resource Id 0x45 5:4 0h (reserved) 3:0 AMC Site Number ( 5 = AMC B1) Point-to-Point Clock Connection descriptor AT8050 www.kontron.com...

  • Page 93: Table 4-35 Pcie Clock Generator

    7:1 0h (reserved) [0] 0b = Activated by Carrier IPMC Indirect Clock Descriptors Count(m) 0x00 Direct Clock Descriptors Count(n) 0x01 Indirect clock Descriptor None Direct clock Descriptor 7:2 0h (reserved) [1] 0b = Not connected through PLL [0] 1b = Features 0x01 Clock source AT8050 www.kontron.com...

  • Page 94: Table 4-36 Onboard Clock Multiplexer

    7:1 0h (reserved) [0] 1b = Activated by Application Indirect Clock Descriptors Count(m) 0x02 Direct Clock Descriptors Count(n) 0x00 Indirect clock Descriptor 7:2 0h (reserved) [1] 1b = Connected through PLL [0] 0b = Features 0x02 Clock Receiver AT8050 www.kontron.com...
  • Page 95 7:2 0h (reserved) [1] 0b = Not Connected through PLL [0] 1b = Features 0x01 Clock Source Dependent ClockId Direct clock Descriptor none Clock Id 0x05 Source output to CLK3B Clock Control 0x01 7:1 0h (reserved) [0] 1b = Activated by Application Indirect Clock Descriptors Count(m) 0x02 AT8050 www.kontron.com...
  • Page 96 7:2 0h (reserved) [1] 1b = Connected through PLL [0] 1b = Features 0x03 Clock Source Dependent ClockId 7:2 0h (reserved) [1] 1b = Connected through PLL [0] 1b = Features 0x03 Clock Source Dependent ClockId Direct clock Descriptor none AT8050 www.kontron.com...
  • Page 97 7:2 0h (reserved) [1] 1b = Connected through PLL [0] 0b = Features 0x02 Clock Receiver Dependent ClockId 7:2 0h (reserved) [1] 1b = Connected through PLL [0] 0b = Features 0x02 Clock Receiver Dependent ClockId Direct clock Descriptor none AT8050 www.kontron.com...

  • Page 98: Component Upgrade Support

    HPM.1 Hardware Platform Management IPM Controller Firmware Upgrade Specification revision 1.0. Kontron's IPMC firmware already complies to PICMG HPM.1 R1.0. HPM commands are available from any of the MC messaging interfaces. The images of the different components can be packaged in the same HPM image (They can also be separated).
  • Page 99 Chapter 5 Chapter 5 Software Setup 5.1 AMI BIOS Setup Program........84 5.2 Boot Utilities............ 113 5.3 Console Redirection (VT100 Mode)......114 AT8050 www.kontron.com...

  • Page 100: Software Setup

    The system BIOS (Basic Input Output System) provides an interface between the operating system and the hardware of the AT8050. It uses the AMI Setup program, a setup utility in flash memory that is accessed by pressing the <DEL> (or <F4> from a console redirection terminal) key at the appropriate time during system boot.
  • Page 101 Note: All options in Bold are the default settings. WARNING BIOS V3.00 and highier is required to operate the board with a 5600 series processor. AT8050 www.kontron.com...

  • Page 102: Menu Bar

    To display a submenu, use the arrow keys to move the cursor to the submenu you want. Then press <Enter>. 5.1.2.2 Field Help Window The help window on the right side of each menu displays the help text for the selected field. It updates as you move the cursor to each field. AT8050 www.kontron.com...

  • Page 103: Main Menu

    Select sub-menu. memory configuration Configuration of each DIMM. Use [+] or [-] to System Time HH:MM:SS Set the system time. configure system time. Use [+] or [-] to System Date MM/DD/YYYY Set the system date. configure system date. AT8050 www.kontron.com...

  • Page 104: Advanced Menu

    Memory Size Configuration menu Feature Option Description Help text Displays Channel 0, DIMM 0 memory size. AT8050: DIMM electrically farthest to CPU Channel 0, DIMM 0 (filled first). DIMMs within a channel must be X GB N/A, display only. Memory Size populated starting with the DIMMs farthest from the processor in a "fill-farthest"...
  • Page 105 This allows Geyserville 3 to be enabled. Disabled Enable: Enable GV3 Turbo Mode allows processor cores to run Enabled This allows processor to increase spped when Intel® TurboMode™ tech faster than marked CPU are not used. Disabled frequency in specifica condition. AT8050 www.kontron.com...
  • Page 106 Selects sub-menu. Only shows if "Configure presence of IDE devices. SATA Port 2 (PS) SATA#1 as" is set to "IDE" This displays the satus of auto detection of IDE devices. Section for AHCI AHCI Configuration Selects sub-menu. Configuration. AT8050 www.kontron.com...
  • Page 107 Display the status of the Self-Monitoring, S.M.A.R.T. Display only Analysis, and Reporting Technology. Select the type of device Auto Auto will detect the device. Not installed will Type connected to the not detect the device. Not Installed system. AT8050 www.kontron.com...
  • Page 108 Device: Show device type Vendor: Show HDD name and brand Size Show HDD size Select the type of device Auto When using "Not Installed" the controller will SATA Port1 connected to the disable the device. Not Installed system. AT8050 www.kontron.com...
  • Page 109 DRAM Data Integrity Mode Non-ECC Non-ECC: Use only for testing purposes. Correctable: ECC for testing purposes. Disabled Uncorrestable: ECC Correctable errors reported. ECC Error Reporting Uncorrectable Both: ECC errors for testing purposes. both Disabled: ECC errors not reported. AT8050 www.kontron.com...
  • Page 110 POST. used. Enables or disables Update Channel Expansion Enabled: Initializes Enabled Update Channel Expansion ROM(s), if any detected. If disabled, Update Update Channel Channel Expansion ROM(s) code will not be expansion ROM. Disabled executed during POST Disabled: Update AT8050 www.kontron.com...
  • Page 111 L0s state and when in the Recovery state. This generation of Extended Extended Synch Disabled mode provides external devices (e.g., logic Synchronization analyzers) monitoring the Link time to achieve Enabled patterns. bit and Symbol lock before the Link enters the L0 state and resumes communication. AT8050 www.kontron.com...
  • Page 112 Enabled: Allows setting of Clock Spread Spectrum for EMI Enabled Spread Spectrum Clocking Allows BIOS to set Clock Spread Spectrum for control. Disabled: Mode EMI (electromagnetic interference) control. Disabled Denies setting of Clock Spread Spectrum for EMI control. AT8050 www.kontron.com...
  • Page 113 DMAR table in ACPI to allows supporting OS to Intel VT-d virtualization. take advantage of the Virtualization Disabled Technology for Directed I/O. Disabled: DMAR table is not present. 5.1.4.11 I/O Virtualization Sub-Menu Feature Option Description Help text Options Disabled SR-IOV Supported Disabled Enabled Enabled AT8050 www.kontron.com...

  • Page 114: Security Menu

    Needs supporting Execute Disable Bit preventing certain classes of malicious buffer OS. Disabled: No Disabled overflow attacks when combined with a restrictions to supporting operating system. application code memory area access by processor. AT8050 www.kontron.com...

  • Page 115: Boot Menu

    Selects sub-menu. drives in priority order. Lists available USB USB Drives Selects sub-menu. drives in priority order. Lists available network Network Drives Selects sub-menu. drives in priority order. Lists available other Other Drives Selects sub-menu. drives in priority order. AT8050 www.kontron.com...
  • Page 116 Specifies the boot priority of the available Specifies the priority of boot sources. The list includes USB CD ROM, Nth Boot Device Type: Boot device the available boot USB Hard Drive, SAS Hard Drive and PXE. Other sources. supported devices might be dynamically added AT8050 www.kontron.com...
  • Page 117 Specifies the boot priority of the available devices. Select the boot Specifies the boot priority of the available device with UpArrow or Nth Drive Varies Removable devices. DownArrow key. Press Enter to set the selection as the intended boot device. AT8050 www.kontron.com...
  • Page 118 Select the boot Specifies the boot priority of the available USB device with UpArrow or Nth Drive Varies Disk devices. DownArrow key. Press Enter to set the selection as the intended boot device. AT8050 www.kontron.com...
  • Page 119 Specifies the boot priority of any other device with UpArrow or Nth Drive Varies available devices (other than Hard Disk, DownArrow key. Press Removable, CD/DVD, USB disk or Network). Enter to set the selection as the intended boot device. AT8050 www.kontron.com...

  • Page 120: System Management Menu

    None ANSI Configures the type of console emulation used Select the typeof Terminal Type VT100 for both serial ports. console emulation used. VTUTF8 Terminal Size 80x24 Displays terminal size. N/A, display only. AT8050 www.kontron.com...
  • Page 121 This allows setting an IP Address for LAN decimal in the form of configuration when IP Address Source is set to IP Address xxx.xxx.xxx.xxx XXX.XXX.XXX.XXX (XXX static. This option is hiden when DHCP source less than 256 and in is selected. decimal only). AT8050 www.kontron.com...
  • Page 122 This allows setting of a Subnet Mask for LAN decimal in the form of configuration when IP Address Source is set to Subnet Mask xxx.xxx.xxx.xxx XXX.XXX.XXX.XXX (XXX static. This option is hiden when DHCP source less than 256 and in is selected. decimal only). AT8050 www.kontron.com...
  • Page 123 Packets are to be added Packets added. Disabled or not. Display the current status of the 801.1q VLAN VLAN Tagged Packets Enabled or Disabled tagged packets configuration stored in IPMI N/A, display only. Status: NVRAM for IPMI LAN. AT8050 www.kontron.com...
  • Page 124 0. No Action Select which action to Warm Reset Configures which action to take when the OS take when the OS Load OS Load Action Load IPMI HW watchdog expires. IPMI HW watchdog Power Down expires. Power Cycle AT8050 www.kontron.com...
  • Page 125 Software Setup 5.1.7.10 System Information sub-menu Feature Option Description Help text Board Product Name AT8050 Displays the CPU blade product name. N/A, display only. Board Vendor Kontron Displays CPU blade vendor. N/A, display only. Board Serial Number Varies Displays the CPU blade serial number.
  • Page 126 Displays IPMI Specification version. N/A, display only. Displays IPMI device ID. OEM defined, IPMI Device ID has been assigned like this: Renesas H8S2148 = 1 Kontron PMM = 2 Renesas IPMI Device ID Varies N/A, display only. H8S2145 = 3 Renesas H8S2166 = 4 Renesas...
  • Page 127 CPU COM2 required between the RTM Serial Port Setting Route AMC port 15 to RTM or disable. AMC and the RTM for the AMC P15 serial link to work. Warning! Re-insert the blade after chaning settings. AT8050 www.kontron.com...
  • Page 128 Gracefull Shutdown Front Board RTM. Select FRU0 to shutdown Deactivate FRU0 On RTM Disk Deactivation RTM Disk Deactivation Policy. Deactivate RTM the board or FRU3 for (FRU3) Deactivate FRU3 Disk only or Gracefull Shutdown Front Board. RTM disk. AT8050 www.kontron.com...

  • Page 129: Exit Menu

    To access the SAS Option ROM, follow the procedure listed below. 1 Option ROM for SAS needs to be enabled and the RTM must be present. 2 Press "F3" to select the boot device. 3 Press "CTRL-C" during the execution of the option ROM. AT8050 www.kontron.com...

  • Page 130: Boot Menu Pop-Up

    The terminal should emulate a VT100 or an ANSI terminal. Terminal emulation programs such as Telix©, HyperTherminal(Windows), minicom(Linux) or ProComm©(Windows) can also be used. 5.3.2 ANSI and VT100 Keystroke Mapping <ESC>[A Down <ESC>[B Right <ESC>[C Left <ESC>[D Home <ESC>[H <ESC>[K <ESC>OP <ESC>OQ <ESC>OR <ESC>OT AT8050 www.kontron.com...

  • Page 131: Vt-Utf8 Keystroke Mapping

    AMIBIOS8 Serial Redirection supports these key sequences under two configurations: • "Terminal Type" setup question is set to "VT-UTF8" • "Terminal Type" setup question is set to "VT100" or "ANSI" and "VTUTF8 Combo Key Support" setup question is set to "Enabled" AT8050 www.kontron.com...
  • Page 132 Chapter 6 Thermal Considerations 6.1 Thermal Monitoring ........... 117 AT8050 www.kontron.com...

  • Page 133: Thermal Considerations

    All sensors available on the AT8050, its RTM and the AMC can carry are listed into the Sensor Data Repository with their thresholds as defined by the PICMG 3.0 specification. The following extract (from the PICMG 3.0 Base Specification) details naming convention for thresholds as well as the meaning of each threshold level.

  • Page 134: Table 6-1 Temperature Sensors Thresholds

    +75°C +85°C +95°C (Channel1, Dimm0) Temp DIMM#4 +5°C 0°C -10°C +75°C +85°C +95°C (Channel 1, Dimm1) Temp DIMM#5 +5°C 0°C -10°C +75°C +85°C +95°C (Channel 2, Dimm0) Temp DIMM#6 +5°C 0°C -10°C +75°C +85°C +95°C (Channel 2, Dimm1) AT8050 www.kontron.com...

  • Page 135: Airflow Blockers

    AMC slot) to block any slot open to exterior air. Failure to do so would go against forced air principles applied on ATCA components, reducing system's cooling efficiency. Moreover, airflow blockers offer a higher impedance to forced air than typical board, who tend to let more air into slots filled with AT8050 or other ATCA boards.

  • Page 136: Thermal Profile

    It is important to follow the thermal profile to make sure the MTBF values are respected. The CPU usage will influence the temperature that the case can handle. Refer to the figure below for more details. Figure 6-3:CPU Thermal Profile AT8050 www.kontron.com...

  • Page 137: Memory & I/O Maps

    622KB - 640 KB XBDA; USB Legacy / BIOS Stack A0000-BFFFF Video DRAM Optional ROM (Free) C0000-DBFFF LAN BIOS around 30KB if activated, address may vary External Fiber Channel BIOS 18KB-64KB , address may vary E0000-FFFFF System BIOS 100000-PCI Memory DRAM available AT8050 www.kontron.com...

  • Page 138: Kontron I/O Mapping

    Kontron I/O Mapping Address Optional Address Function 000-01F DMA Controller 1 020-03F Interrupt Controller 1 040-05F Timer 060-06F Keyboard 070-07F Real-time clock 080-09F DMA Page Register 0A0-0BF Interrupt Controller 2 0C0-0DF DMA Controller 2 0F0-0F1, 0F8-0FF Math Coprocessor 1F0-1F7, 3F6...

  • Page 139: Pci Idsel And Device Numbers

    Intel Corporation DMA Engine (rev 10) 8086 342c Intel Corporation DMA Engine (rev 10) 8086 3a34 Intel Corporation ICH10 USB UHCI Controller #1 8086 3a35 Intel Corporation ICH10 USB UHCI Controller #2 8086 3a36 Intel Corporation ICH10 USB UHCI Controller #3 AT8050 www.kontron.com...
  • Page 140 I82599 on Fabric 8086 10d8 Intel Corporation 82599 Gigabit Network Connection Interface I82576 on 8086 10c9 Intel Corporation 82576 Gigabit Network Connection Management LAN I82576 on 8086 10c9 Intel Corporation 82576 Gigabit Network Connection Management LAN Update Channel AT8050 www.kontron.com...

  • Page 141: Telco Clock

    Telco Clock Clock Circuit Overview AT8050 www.kontron.com...
  • Page 142 Coarse monitoring status. A1 indicate that the corresponding backplane clock is present. A0, that it is CLK1A/B absent. Those statuses are valid only if CLK1A/B is 8kHz and CLK2A/B is 19.44MHz. If other CLK2A/B frequencies are used, those bits should be ignored. AT8050 www.kontron.com...
  • Page 143 1: 64 - 83ppm. 0: 40 - 52ppm. Note: This register needs to be reprogrammed every time the blade is resetted. Those are direct pin control and status. See the ZL30108 datasheet for a detailed explanation of the functionality. AT8050 www.kontron.com...
  • Page 144 0000. If the PLD is abscent or not programmed, this field will return 0000. Code version of the PLD for the above configuration. If the PLD is absent or not programmed, this field VERSION will return 0000. AT8050 www.kontron.com...
  • Page 145 Same as CLK3AE but to CLK3B Backplane CLK3A Enable. CLK3AE 0: don’t drive this clock 1: drive this clock Note: The FPGA will automatically clear bits CLK3BE and CLK3AE when the AMC is removed since the clock source is not valid anymore. AT8050 www.kontron.com...
  • Page 146 * unpredictable: need to be cleared by IPMC on power up. Events and alarms are implemented in the FPGA. The FPGA build them using the raw signals from the first three registers. Note that this register is only available on the IPMC side of the interface. A-10 AT8050 www.kontron.com...

  • Page 147: Connector Pinouts

    Connectors and Headers Summary Connector Description PostCodes Ethernet Port 0 Ethernet Port 1 USB (2x Stacked) Serial Port, COM1 Synchronisation Clocks, Update Channel USB Flash Drive Base Interface & Fabric Intercface Power & IPMB Post Codes (J2) Signal VCC3 POST:DATA POST:CLOCK AT8050 www.kontron.com...

  • Page 148: Amc B1(J5

    TxD20+ TxD2- CLK1- B118 TxD13+ B161 B119 B162 RxD20- RxD3+ CLK2+ B120 RxD13- B163 RxD20+ RxD3- CLK2- B121 RxD13+ B164 B122 B165 TCLK (N.C.) TxD3+ CLK3+ B123 TxD14- B166 TMS (N.C.) TxD3- CLK3- B124 TxD14+ B167 TRST# (N.C.) AT8050 www.kontron.com...

  • Page 149: Ethernet(J8 & J9

    B168 TDO (N.C.) ENABLE# PS0#(GND) B126 RxD14- B169 TDI (N.C.) B127 RxD14+ B170 B128 Ethernet(J8 & J9) Signal Signal BI_DA+ BI_DC- BI_DA- BI_DB- BI_DB+ BI_DD+ BI_DC+ BI_DD- USB Port (J10) Signal DATA- DATA+ Serial Port, COM1(J12) Signal Signal AT8050 www.kontron.com...

  • Page 150: Synchronisation Clocks, Update Channel (J20

    ROW AB ROW CD ROW EF ROW GH CLK2B+ CLK2B- CLK3B+ CLK3B- Rx3(UP)+ Rx3(UP)- Rx1(UP)+ Rx1(UP)- Rx3[15]+(N.C.) Rx3[15]-(N.C.) Rx1[15]+(N.C.) Rx1[15]-(N.C.) Rx3[14]+(N.C.) Rx3[14]-(N.C.) Rx1[14]+(N.C.) Rx1[14]-(N.C.) Rx3[13]+(N.C.) Rx3[13]-(N.C.) Rx1[13]+(N.C.) Rx1[13]-(N.C.) USB Flash Drive(J22) Signal Signal N.C. N.C. USB_DATA- N.C. N.C. USB_DATA+ AT8050 www.kontron.com...

  • Page 151: Base Interface & Fabric Intercface (J23

    N.C. N.C. N.C. N.C. N.C. N.C. ROW G ROW H ROW AB ROW CD ROW EF ROW GH Rx3[2]+ Rx3[2]- Rx1[2]+ Rx1[2]- Rx3[1]+ Rx3[1]- Rx1[1]+ Rx1[1]- BI_DD1+ BI_DD1- BI_DD2+ DI_DD2- N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. AT8050 www.kontron.com...

  • Page 152: Rtm Connector (J30

    PE4_TX- PE4_TX+ PE5_RX+ PE5_RX- PE7_TX+ PE7_TX- ROW G ROW H ROW AB ROW CD ROW EF ROW GH FPGA_IO_1 RTM_EN# USB0_D+ USB0_D- JTAG_TRST FPGA_IO_2 RTML_CLK PROG RSVD_G5 JTAG_SEL SFP0_SCL SFP0_SDA SAS_1_RX+ SAS_1_RX- GBE_RX2+ GBE_RX2- PE6_RX+ PE6_RX- PE4_RX- PE4_RX+ AT8050 www.kontron.com...

  • Page 153: Power (P10

    B.11 Power (P10) Signal Signal N.P. N.P. N.P. N.P. HA7/P SCL_A SDA_A SCL_B SDA_B MT1_TIP(N.C.) MT2_TIP(N.C.) RING_A(N.C.) RING_B(N.C.) MT1_RING(N.C.) MT2_RING(N.C.) RRTN_A(N.C.) RRTN_B(N.C.) SHELF_GND LOGIC_GND ENABLE_B VRTN_A VRTN_B EARLY_A EARLY_B ENABLE_A -48V_A -48V_B AT8050 www.kontron.com...

  • Page 154: Bios Setup Error Codes

    E1-E8 OEM memory detection/configuration error. This range is reserved for chipset vendors & EC-EE system manufacturers. The error associated with this value may be different from one platform to the next. Refer to memory initialization ERROR CODE D.5 AT8050 www.kontron.com...

  • Page 155: Post Code Checkpoints

    Initializes the silent boot module. Set the window for displaying text information. Displaying sign-on message, CPU information, setup key message, and any OEM specific information. Initializes different devices through DIM. See DIM Code Checkpoints section of document for more information. Initializes DMAC-1 & DMAC-2. AT8050 www.kontron.com...
  • Page 156 OEM POST Error. This range is reserved for chipset vendors & system manufacturers. The 61-70 error associated with this value may be different from one platform to the next. OEM PCI init debug POST code during DIMM init, See DIM Code Checkpoints section of DD-DE document for more information. AT8050 www.kontron.com...

  • Page 157: Dim Code Checkpoints

    7 = func#7, add-on ROM initialization for all BUSes. 8 = func#8, BBS ROM initialization for all BUSes. The lower nibble 'Y' indicates the BUS on which the different routines are being executed. 'Y' can be from 0 to 5. AT8050 www.kontron.com...

  • Page 158: Memory Initialization Error Code

    Checkpoint Description Memory Error - No memory installed. Memory Error - DDR3 Initialisation Memory Error - Memory test Memory Error - RDIMMs and UDIMMs are mixed Memory Error - Invalid Memory Population Memory Error - Memory structure problem AT8050 www.kontron.com...

  • Page 159: Software Update

    D. Software Update To update the board software, it is recommended to use the Kontron update CD. A version of this CD can be found on the CD/DVD provided with your board or on the Kontron Canada’s site. Updating your board with this Update CD will have a payload impact on your board.

  • Page 160: Getting Help

    Tel.: +49 (0) 8341 803 333 Fax: (450) 437-8053 Fax: +49 (0) 8341 803 339 If you have any questions about Kontron, our products, or services, visit our Web site at: www.kontron.com You also can contact us by E-mail at: North America: support@ca.kontron.com...

  • Page 161: When Returning A Unit

    •Clearly write or mark the RMA number on the outside of the package you are returning. •Ship prepaid. We take care of insuring incoming units. North America EMEA Kontron Canada, Inc. Kontron Modular Computers GmbH 4555, Ambroise-Lafortune Sudetenstrasse 7 Boisbriand, Québec 87600 Kaufbeuren...

  • Page 162: Glossary

    CMOS powered CMOS memory to hold the date, time, and system setup parameters. CPLD Complex Programmable Logic Device CP-TA Communications Platforms Trade Association Central Processing Unit. This sometimes refers to a whole blade, not just a processor component. AT8050 www.kontron.com...
  • Page 163 Intel Mobile Voltage Positioning. The Intel Mobile Voltage Positioning specification for the Intel® IMVP-6 Core™ Duo Processor. It is a DC-DC converter module that supplies the required voltage and current to a single processor. (Same as I/O). Input Output I/O Hub IPMI-Over-LAN Internet Protocol AT8050 www.kontron.com...
  • Page 164 Restriction of the Use of Certain Hazardous Substances RS-232 (Same as RS232). Recommended Standard 232. RS232 (Same as RS-232). Recommended Standard 232. Real Time Clock Rear Transition Module RTM-Link Rear Transition Module Link. Kontron 3-wire protocol. Request To Send AT8050 www.kontron.com...
  • Page 165 Telecom CLocK D. AMC Clock Interface. Transmit Transmit UART Universal Asynchronous Receiver Transmitter Universal Serial Bus Power supply VLAN Virtual Local Area Network X (meaning ten) Attachement Unit Interface. A standard for connecting 10 Gigabit Ethernet (10GbE) XAUI ports. AT8050 www.kontron.com...

Table of Contents
