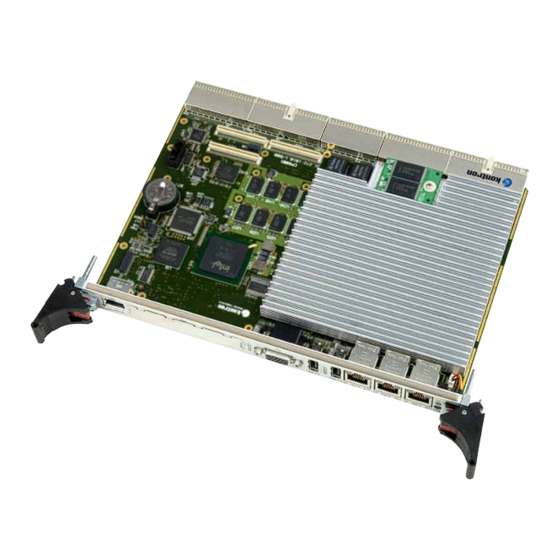

- Page 1 CP6001-R3 Ruggedized 6U CompactPCI Processor Board Based on the Intel® Core™ Duo Processor and the Intel® Core™2 Duo Processor with the Intel® 945GM Express Chipset Doc. ID: 1027-2047, Rev. 1.0 December 2, 2008 User Guide...
-
Page 2: Imprint
Disclaimer Copyright © 2008 Kontron AG. All rights reserved. All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Kontron and the Kontron logo and all other trademarks or registered trademarks are the property of their respective own- ers and are recognized. -
Page 3: Table Of Contents
1.4.2 Board Layout .................. 1 - 6 1.5 Technical Specification ................1 - 8 1.6 Kontron Software Support ..............1 - 12 1.7 Standards ....................1 - 12 1.8 Related Publications ................1 - 13 Functional Description ............2 - 3 2.1 CPU, Memory and Chipset .............. - Page 4 Technical Background of IPMI ............2 - 25 2.4.2 IPMI Glossary ..................2 - 26 2.4.3 IPMI Implementation on the CP6001-R3 ........2 - 27 2.4.4 Sensors Implemented on the CP6001-R3 ........2 - 28 2.4.5 Data Repositories ................2 - 29 Installation ................3 - 3 3.1 Safety Requirements ................3 - 3...
- Page 5 3.4.1 System Master Hot Swap ............... 3 - 7 3.4.2 CP6001-R3 Hot Swap Procedure ........... 3 - 7 3.5 Installation of CP6001-R3 Peripheral Devices ........3 - 9 3.5.1 USB Device Installation ..............3 - 9 3.5.2 Rear I/O Device Installation ............3 - 9 3.6 CCPMC Module Installation ..............
- Page 6 Power Supply Units .................5 - 4 5.2 Power Consumption ................5 - 6 5.2.1 Power Consumption of the CP6001-R3 Accessories ......5 - 8 5.2.2 Power Consumption of the Gigabit Ethernet Controller ....5 - 8 5.3 Start-Up Currents of the CP6001-R3 ............5 - 9 5.4 Power Available for CCPMC Devices ............5 - 9...
-
Page 7: List Of Tables
Standards for the R3 Version ..............1 - 12 Related Publications ................1 - 13 Processors Supported on the CP6001-R3 ..........2 - 4 Maximum Power Dissipation of the Processors (CPU only) ...... 2 - 4 CPU Frequency in the Various SpeedStep® Modes ......... 2 - 4 Supported Memory Configurations ............ - Page 8 Input Voltage Characteristics ..............5 - 5 Power Consumption: CP6001-R3 with DOS ..........5 - 7 Power Consumption: CP6001-R3 with Linux/Win. XP in IDLE Mode ..5 - 7 Power Consumption: CP6001-R3 at 75% TDP .......... 5 - 7 Power Consumption: CP6001-R3 at 100% TDP ........5 - 8 Power Consumption of CP6001-R3 Accessories ........
-
Page 9: List Of Figures
CCPMC Connectors J7, J8 and J9 ............2 - 11 CPCI Connectors J1-J5 ................. 2 - 16 Temperature Sensor Placement (CP6001-R3 Top View) ......6 - 3 Position of the Reference Point on the CP6001-R3 ......... 6 - 6 ID 1027-2047, Rev. 1.0 Page ix... - Page 10 Preface CP6001-R3 This page has been intentionally left blank. Page x ID 1027-2047, Rev. 1.0...
-
Page 11: Proprietary Note
Kontron without further notice. Trademarks Kontron, the PEP logo and, if occurring in this manual, “CXM” are trademarks owned by Kon- tron, Kaufbeuren (Germany). In addition, this document may include names, company logos and trademarks, which are registered trademarks and, therefore, proprietary to their respective owners. -
Page 12: Explanation Of Symbols
Preface CP6001-R3 Explanation of Symbols Caution, Electric Shock! This symbol and title warn of hazards due to electrical shocks (> 60V) when touching products or parts of them. Failure to observe the pre- cautions indicated and/or prescribed by the law may endanger your life/health and/or result in damage to your material. -
Page 13: For Your Safety
However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 14: General Instructions On Usage
CP6001-R3 General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the device, which are not explicitly approved by Kontron and described in this manual or received from Kontron’s Technical Support as a special handling instruction, will void your warranty. -
Page 15: Two Year Warranty
As a result, the products are sold “as is,” and the responsibility to ensure their suitability for any given task remains that of the purchaser. In no event will Kontron be liable for direct, indirect or consequential damages resulting from the use of our hardware or software products, or documentation, even if Kontron were advised of the possibility of such claims prior to the purchase of the product or during any period since the date of its purchase. - Page 16 Preface CP6001-R3 This page has been intentionally left blank. Page xvi ID 1027-2047, Rev. 1.0...
-
Page 17: Introduction
CP6001-R3 Introduction Chapter Introduction ID 1027-2047, Rev. 1.0 Page 1 - 1... - Page 18 Introduction CP6001-R3 This page has been intentionally left blank. Page 1 - 2 ID 1027-2047, Rev. 1.0...
-
Page 19: Board Overview
In addition, four USB 2.0 ports are available and two COM ports, one RS-232 port and one RS- 422 port all on rear I/O. The CP6001-R3 provides safety and security via a Trusted Platform Module (TPM) 1.2, two re- dundant firmware hubs (FWH) and Intelligent Platform Management Interface (IPMI) support. -
Page 20: Board-Specific Information
CP6001-R3 Board-Specific Information The CP6001-R3 is a CompactPCI single-board computer based on the Intel® Core™ Duo and the Intel® Core™2 Duo processors and specifically designed for use in highly integrated platforms with solid mechanical interfacing (VITA 30.1) for a wide range of industrial environment applications. -
Page 21: System Expansion Capabilities
The CP6001-R3 has one PCI/PCI-X, 32-bit/66 MHz, rear I/O capable, conduction cooled PMC (CCPMC) mezzanine interface. This interface supports a wide range of available CCPMC mod- ules with PCI interfacing and provides an easy and flexible way to configure the CP6001-R3 for various application requirements. -
Page 22: Board Layout
Introduction CP6001-R3 1.4.2 Board Layout Figure 1-2: CP6001-R3 Board Layout (Front View) Wedge Lock HDMI Bridge Bridge Soldered Soldered DDR2 Memory DDR2 Memory (ICH7R) (ICH7R) CCPMC SITE CCPMC SITE Ch. B Ch. A MAGN. GMCH MAGN. (945GM) DC/DC Coil Bridge... -
Page 23: Cp6001-R3 Board Layout (Reverse View)
CP6001-R3 Introduction Figure 1-3: CP6001-R3 Board Layout (Reverse View) BIOS BIOS Super Channel A Channel B Soldered DDR2 Memory Channel A Channel B ID 1027-2047, Rev. 1.0 Page 1 - 7... -
Page 24: Technical Specification
USB 2.0 host interface with up to four USB ports • SATA Host Controller with four ports, 3 Gbit/s transfer rate • Four of the six x1 PCI Express ports are used on the CP6001-R3: • Two x1 PCI Express ports are used for Gigabit Ethernet •... -
Page 25: Peripherals
• 3.3V or 5V signaling levels (universal signaling support) Compliant with Packet Switching Specification PICMG 2.16 R1.0 When the CP6001-R3 is operated in a peripheral slot, the CompactPCI bus is electrically isolated (passive mode). Rear I/O The following interfaces are routed to the rear I/O connector J3, J4 and J5: •... -
Page 26: Reset
Introduction CP6001-R3 Table 1-1: CP6001-R3 Main Specifications (Continued) CP6001-R3 SPECIFICATIONS CCPMC CMC / PMC P1386 / Draft 2.4a and CCPMC VITA 20-2001 (R2005) compliant mezzanine interface: • CCPMC module support • Jn1, Jn2 and Jn4 PCI mezzanine connectors for standard CCPMC modules •... -
Page 27: Flash Memory
• Microsoft® Windows® XP Embedded • Linux • VxWorks Please contact Kontron for further information concerning the operation of the CP6001-R3 with other operating systems. Mechanical 6U, 4HP, CompactPCI compliant form factor Power Consumption See Chapter 5 for details Temperature Ranges Operational: -40°C to +85°C... - Page 28 CP6001-R3 Kontron Software Support Kontron is one of the few CompactPCI and VME manufacturers providing inhouse support for most of the industry-proven real-time operating systems that are currently available. Due to its close relationship with the software manufacturers, Kontron is able to produce and support BSPs and drivers for the latest operating system revisions thereby taking advantage of the changes in technology.
- Page 29 CompactPCI Hot Swap Specification PICMG 2.1 Rev. 2.0 (LEDs and hot swap handle switch are not supported) IPMI - Intelligent Platform Management Interface Specification v1.5 Kontron CompactPCI Backplane Manual, ID 24229 CompactFlash Cards CF+ and CompactFlash Specification Revision 2.1 PMC Modules Draft Standard for a Common Mezzanine Card Family: CMC, P1386/Draft 2.4a,...
- Page 30 Introduction CP6001-R3 This page has been intentionally left blank. Page 1 - 14 ID 1027-2047, Rev. 1.0...
