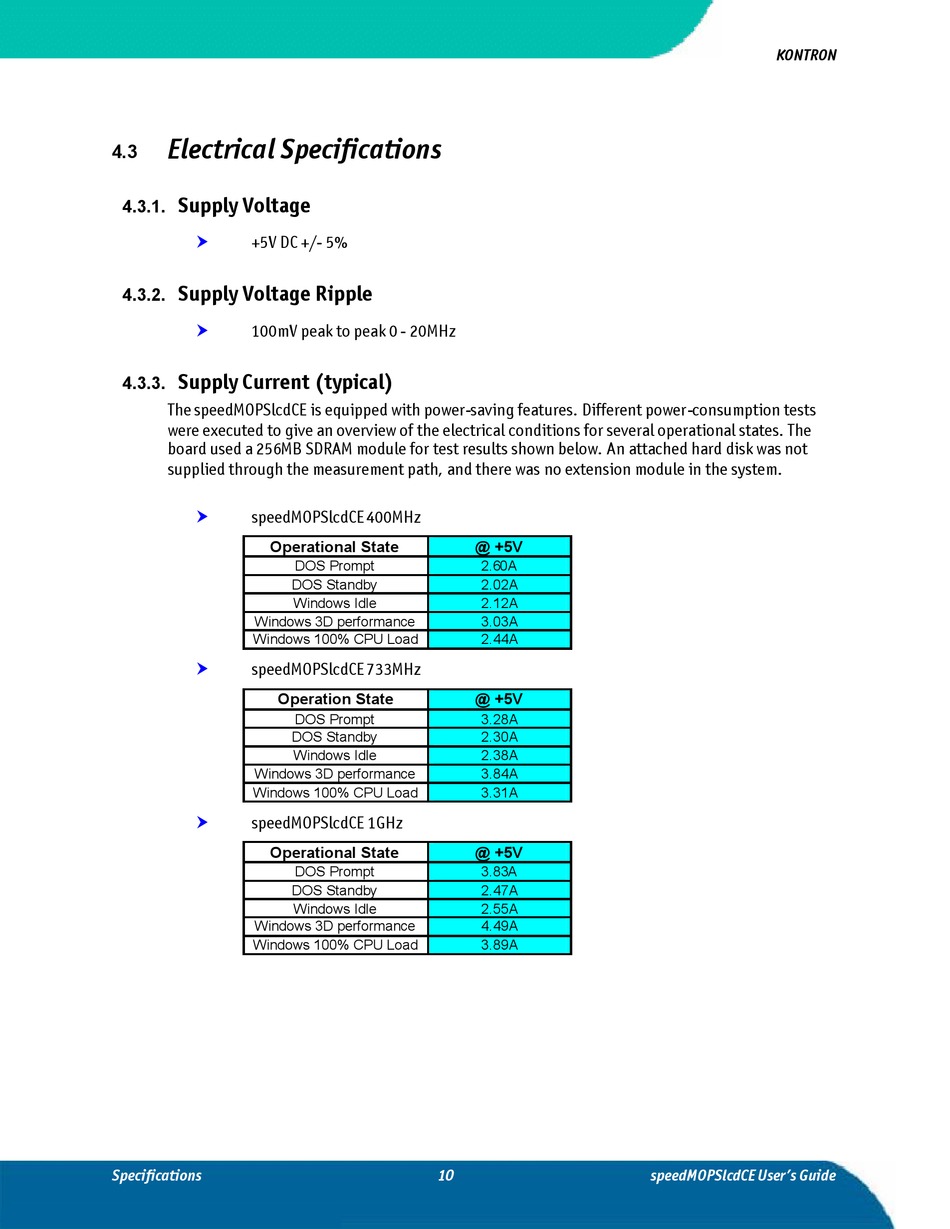

Electrical Specifications

4.3

Supply Voltage

4.3.1.
 +5V DC +/- 5%

Supply Voltage Ripple

4.3.2.

100mV peak to peak 0 - 20MHz

Supply Current (typical)

4.3.3.
The speedMOPSlcdCE is equipped with power-saving features. Different power-consumption tests
were executed to give an overview of the electrical conditions for several operational states. The
board used a 256MB SDRAM module for test results shown below. An attached hard disk was not
supplied through the measurement path, and there was no extension module in the system.
 speedMOPSlcdCE 400MHz
Operational State
Windows 3D performance
Windows 100% CPU Load
 speedMOPSlcdCE 733MHz
Operation State
Windows 3D performance
Windows 100% CPU Load
 speedMOPSlcdCE 1GHz
Operational State
Windows 3D performance
Windows 100% CPU Load
Specifications
DOS Prompt
DOS Standby
Windows Idle
DOS Prompt
DOS Standby
Windows Idle
DOS Prompt
DOS Standby
Windows Idle
10
@ +5V
2.60A
2.02A
2.12A
3.03A
2.44A
@ +5V
3.28A
2.30A
2.38A
3.84A
3.31A
@ +5V
3.83A
2.47A
2.55A
4.49A
3.89A
