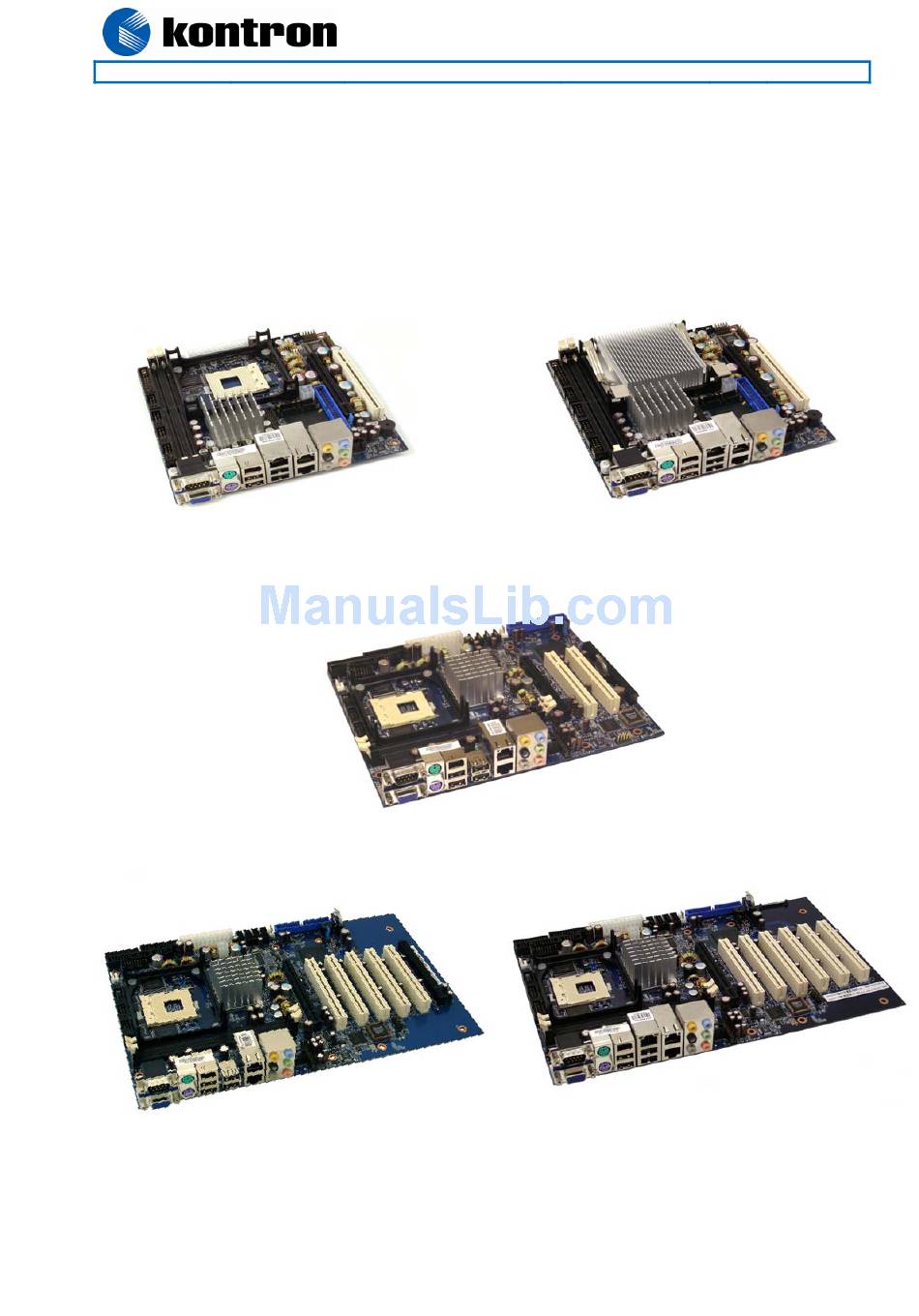

986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 1 of 92 User Manual for the Motherboards: 986LCD-M/mITX 986LCD-M/mITX BGA 986LCD-M/Flex 986LCD-M/ATXE 986LCD-M/ATXP...
Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer: KONTRON Technology A/S reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance.
KONTRON Technology Technical Support and Services If you have questions about installing or using your KONTRON Technology Product, check this User’s Manual first – you will find answers to most questions here. To obtain support, please contact your local Distributor or Field Application Engineer (FAE).
System Memory support .........................13 System overview ..........................14 986LCD-M Power Distribution & Power State Map ..............15 Power Consumption ........................17 986LCD-M Clock Distribution ......................20 CONNECTOR DEFINITIONS........................21 Connector layout..........................22 4.1.1 986LCD-M/mITX.........................22 4.1.2 986LCD-M/Flex...........................24 4.1.3 986LCD-M/ATXP ........................25 4.1.4 986LCD-M/ATXE ........................26 Power Connector (ATXPWR) ......................27 Keyboard and PS/2 mouse connectors ..................28...
1. Introduction This manual describes the 986LCD-M/Flex, 986LCD-M/ATXP, 986LCD-M/ATXE and 986LCD-M/mITX boards made by KONTRON Technology A/S. The boards will also be denoted 986LCD family if no differentiation is required. All boards are to be used with the Intel® Core™Duo, Intel® Core™ 2 Duo, Intel® Core™Solo and Celeron®...
2. Installation procedure 2.1 Installing the board To get the board running, follow these steps. In some cases the board shipped from KONTRON Technology has CPU, DDR DRAM and Cooler mounted. In this case Step 2-4 can be skipped. 1. Turn off the power supply.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 9 of 92 2.2 Requirement according to EN60950 Users of 986LCD boards should take care when designing chassis interface connectors in order to fulfill the EN60950 standard: When an interface/connector has a VCC (or other power) pin, which is directly connected to a power plane like the VCC plane: To protect the external power lines of peripheral devices the customer has to take care about: •...
Date: 2008-04-22 Page 10 of 92 3. System specification 3.1 Component main data The table below summarises the features of the 986LCD-M/mITX, 986LCD-M/Flex, 986LCD-M/ATXP and 986LCD-M/ATXE embedded motherboards. 986LCD-M/mITX: mini ITX (170.18millimeters by 170.18millimeters) Form factor 986LCD-M/Flex: Flex-ATX (190,50millimeters by 228,60millimeters)
Page 11
• Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support • PS/2 keyboard and mouse ports • 986LCD-M/mITX: 3x 10/100/1000Mbits/s LAN using Realtek RTL8111B controllers • 986LCD-M/Flex: 2x 10/100/1000Mbits/s LAN using Realtek RTL8111B controllers Support • 3x 10/100/1000Mbits/s LAN using Realtek RTL8111B controllers 986LCD-M/ATXP: •...
Page 12
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 12 of 92 Environmental Operating: Conditions 0°C – 60°C operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range.
13 of 92 3.2 Processor support table. The 986LCD-M/mITX, /Flex, /ATXP and /ATXE are designed to support the PGA (478 pins) processors: Intel® Core™ 2 Duo Mobile Processor, Merom 65 nm process, FSB 667MHz with 4 MB L2 cache Intel® Core™ Duo Processor, Yonah 65 nm process, FSB 667MHz with 2 MB L2 cache Intel®...
The block diagram below shows the architecture and main components of the 986LCD boards. The two key ® ® components on the board are the Intel 945GM and Intel ICH7R Embedded Chipsets. Components shown shaded are optional depending on board type (986LCD-M/mITX, /Flex, /ATXP or /ATXE) and variants of the board.
–12V –13.2V –10.8V Should be ±10% for compliance with the ATX specification -5,50V -4.5V Not required for the 986LCD-M/mITX board Should be ±5% for compliance with the ATX specification 5VSB 4.75V –5.25V Test system configuration The following items are used in the test setup: 1.
Page 18
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 18 of 92 986LCD-M/mITX with Core Duo (T2500) & 1GB DDR2 Ram test results: Test Supply Current draw Power consumption +12V 0.88A 10.56W DOS, Idle, mean 1.48A 7.4W +3V3 1.22A 4.03W -12V 0.05A...
Page 19
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 19 of 92 986LCD-M/mITX with w/1.06GHz Celeron M 512MB test results: Test Supply Current draw Power consumption +12V 0.36A 4.32W DOS, Idle, mean 1.37A 6.85W +3V3 1.31A 4.323W -12V 5VSB Total 15.493W...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 21 of 92 4. Connector Definitions The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation: Column Description name Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors.
Public User Manual Date: 2008-04-22 Page 22 of 92 4.1 Connector layout 4.1.1 986LCD-M/mITX Mini-PCIe (backside of 986LCD-M/mITX) (Support for modules with no components mounted on backside). CF (backside of FAN_CPU 986LCD-M/mITX) SATA3 SATA1 SATA2 SATA0 DDR2 SLOT 1 IEEE1394 1...
Page 23
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 23 of 92 986LCD-M/mITX BGA Same connectors available as on the standard 986LCD-M/mITX, except that CPU socket is replaced with BGA version of CPU. (Passive cooler included).
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 27 of 92 4.2 Power Connector (ATXPWR) The 986LCD-M boards are designed to be supplied from a standard ATX or BTX power supply. ATX/ BTX Power Connector: Pull Pull Note Ioh/Iol Type Signal Signal...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 28 of 92 4.3 Keyboard and PS/2 mouse connectors Attachment of a keyboard or PS/2 mouse adapter can be done through the stacked PS/2 mouse and keyboard connector (MSE & KBD). Both interfaces utilize open-drain signaling with on-board pull-up.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 29 of 92 4.4 Display Connectors The 986LCD-M board family provides onboard two basic types of interfaces to a display: Analog CRT interface and a digital interface typically used with flat panels. The digital interface to flat panels can be achieved through the onboard LVDS dual channel interface and/or the SDVO port available on the PCI Express connector.
The Intel® 945GM chipset include Macrovision support. : If the TV-Out option is available then you must make agreement with Macrovision IMPORTANT (http://www.macrovision.com/) about lincence fee. Only Macrovision (not Kontron) can determine the actual licence fee which depends on the application. Pull...
Note 1: Support of 24bit OpenLDI/ SPWG panels is not officially supported by Intel®, but is supported by the 986LCD series boards by Kontron. Kontron intends to continue to provide 24bit OpenLDI/ SPWG panel support even if Intel® withdraws this from the chipset, by an external converter module.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 32 of 92 PCI-Express Connectors 4.5.1 PCI-Express x16/ SDVO connector The 986LCD-M boards supports one 16-lane (x16) PCI Express port for external PCI Express based graphics boards or ADD2 devices. Note Type Signal Signal...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 35 of 92 4.5.3 miniPCI-Express connector The 986LCD-M/mITX and the 986LCD-M/ATXP supports one miniPCI Express port. Note Type Signal Signal Type Note WAKE# +3V3 +1.5V PCIE_mini CLK# PCIE_mini CLK W_Disable RST#...
The primary controller is shared between the IDE_P connector and the backside Compact Flash connector (986LCD-M/mITX only). In case CF is utilized, only one IDE device is supported on the IDE_P connector. The harddisk controllers support Bus master IDE, ultra DMA 33/66/100 MHz and standard operation modes.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 37 of 92 4.6.1 IDE Hard Disk Connector (IDE_P) This connector can be used for connection of two primary IDE drives. If Compact Flash connector (986LCD- M/mITX only) is utilized, only one IDE device is supported. Pull Pull Note...
4.6.2 CF Connector (CF) This connector is mounted on the backside of the 986LCD-M/mITX only. If a Compact Flash Disk is used, only one IDE device is supported on the IDE_P connector. The CF socket support DMA/UDMA CF modules. Pull...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 39 of 92 4.7 Serial ATA harddisk interface The 986LCD-M boards have an intergrated SATA Host controller that supports independent DMA operation on four ports and data transfer rates of up to 3.0Gb/s (300MB/s). The SATA controller supports AHCI mode and has integrated RAID functionality with support for RAID modes 0, 1, 5 and 10 (Linux O/S only support for RAID 0 and 1).
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 40 of 92 4.8 Printer Port Connector (PRINTER). The signal definition in standard printer port mode is as follows: Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note (24)/24 OC(O) STB# AFD# OC(O)
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 41 of 92 4.9 Serial Ports Four RS232 serial ports are available on the 986LCD-M boards The typical interpretation of the signals in the COM ports is as follows: Signal Description Transmitte Data, sends serial data to the device.
Date: 2008-04-22 Page 42 of 92 4.10 Ethernet connectors. The 986LCD-M/mITX and 986LCD-M/ATXP boards supports 3 channels of 10/100/1000Mb Ethernet RTL8111B LAN controllers. The 986LCD-M/Flex and 986LCD-M/ATXE boards supports 2 channels of 10/100/1000Mb Ethernet RTL8111B LAN controllers. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 43 of 92 4.10.2 Ethernet connector 2/3 (ETHER2/3) The two Ethernet channels in ETHER2/3 are supported by two discrete Ethernet controllers (RTL8111B) connected to the onboard PCI bus. The pinout of the RJ45’s connector are as follows: Signal Type Ioh/Iol...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 44 of 92 4.11 Firewire/ IEEE-1394 connectors. The 986LCD-M boards supports two IEEE Std 1394a-2000 fully compliant cable ports at 100M bits/s, 200M bits/s, and 400M bits/s. 4.11.1 IEEE1394 Connector (IEEE1394_0) The pinout of the Firewire / IEEE1394 connector IEEE1394_0 (stacked together with USB Ports 4 and 5) is as follows: Pull...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 45 of 92 4.12 USB Connector (USB) The 986LCD-M boards contains an Enhanced Host Controller Interface (EHCI) host controller that supports USB 2.0 allowing data transfers up to 480Mb/s. The 986LCD-M boards also contains four Universal Host Controller Interface (UHCI Revision 1.1) controllers that support USB full-speed and low-speed signaling.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 46 of 92 4.12.2 USB Connector 4/5 (USB4/5) USB Ports 4 and 5 are mounted together with IEEE1394_0 port. Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note 5V/SB5V /15K 0.25/2 USB5- USB5+...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 47 of 92 4.13 Audio Connector 4.13.1 Audio Line-in, Line-out and Microphone Audio Line-in, Line-out and Microphone are available in the stacked audio jack connector. Below is shown audio stack configuration when configured for 8-channel audio. Note Type Signal...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 48 of 92 4.13.2 CD-ROM Audio input (CDROM) CD-ROM audio input may be connected to this connector. It may also be used as a secondary line-in signal. Signal Type Ioh/Iol Pull Note CD_Left CD_GND...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 50 of 92 4.14 Fan connectors , FAN_CPU and FAN_SYS. The FAN_CPU is used for connection of the active cooler for the CPU. The FAN_SYS can be used to power, control and monitor a fan for chassis ventilation etc. Pull Signal Type...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 52 of 92 4.18 Front Panel connector (FRONTPNL). Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note USB13_5V USB13_5V USB1- USB3- USB1+ USB3+ LINE2-IN-L 11 12 HD_LED 13 14 SUS_LED 15 16 PWRBTN_IN# RSTIN#...
General Purpose Inputs / Output. These Signals may be controlled or monitored through GPIO0..7 the use of the KONTRON API (Application Programming Interface) available for Win98, WinXP and Win2000. FAN 3 speed control OUTput. This analogue voltage output signal can be used to FAN3OUT control the Fan’s speed.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 55 of 92 4.20.2 Signal Description –PCI Slot Connector SYSTEM PINS Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the rising edge of CLK and all other timing parameters are defined with respect to this edge.
Page 56
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 56 of 92 ARBITRATION PINS (BUS MASTERS ONLY) Request indicates to the arbiter that this agent desires use of the bus. This is a point to point signal. Every REQ# master has its own REQ# which must be tri-stated while RST# is asserted. Grant indicates to the agent that access to the bus has been granted.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 59 of 92 6. System Ressources 6.1 Memory map Address range (hex) Size Description 00000000 0009FFFF 655360 System board 000A0000 000BFFFF 131072 Mobile Intel 945GM Express Chipset Family 000A0000 000BFFFF 131072 PCI bus 000C0000 000CFFFF...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 62 of 92 6.4 I/O Map Address (hex) Size Description 0020- 0021 Programmable interrupt controller 0040- 0043 System Timer 0060- 0060 Standard keyboard 0061- 0061 System speaker 0064- 0064 Standard keyboard 0070- 0071 System CMOS/Real time clock...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 63 of 92 6.5 DMA Channel Usage DMA Channel Number Data Width System Ressources 8 or 16 bits Available 8 or 16 bits Available 8 or 16 bits Available 8 or 16 bits Available 8 or 16 bits DMA Controller...
7. Overview of BIOS features This Manual section details specific BIOS features for the 986LCD-M boards. The 986LCD-M boards are based on the AMI BIOS core version 8.10 with Kontron BIOS extensions. 7.1 System Management BIOS (SMBIOS / DMI) SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 65 of 92 8. BIOS Configuration / Setup 8.1 Introduction The BIOS Setup is used to view and configure BIOS settings for the 986LCD-M board. The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 66 of 92 8.3 Advanced Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Configure CPU. Advanced Settings Warning: Setting wrong values in below sections may cause system to malfunction. >...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 67 of 92 8.3.1 Advanced settings – CPU Configuration BIOS SETUP UTILITY Advanced Maximum: CPU Speed is Configure advanced CPU settings set to maximum. Module Version –13.04 Minimum: CPU Speed is set to minimum.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 68 of 92 8.3.2 Advanced settings – IDE Configuration BIOS SETUP UTILITY Advanced Options IDE Configuration ATA/IDE Configuration [Compatible] Disabled Legacy IDE Channels [SATA Pri, Pata Sec] Compatible Enhanced Primary IDE Master : [Hard Disk] Primary IDE Slave : [Not Detected]...
Page 69
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 69 of 92 BIOS SETUP UTILITY Advanced Select the type of Primary IDE Master devices connected to Device :Hard Disk the system Vendor :ST340014A Size :40.0GB LBA Mode :Supported Block Mode :16Sectors PIO Mode Async DMA...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 70 of 92 Feature Options Description Hard Disk Write Protect Enable write protection on HDDs, only works Disable Enabled when it is accessed through the BIOS IDE Detect Time Out (Sec) 0, 5, 10, 15, 20, 25, 30, 35 Select the time out value when the BIOS is detecting ATA/ATAPI Devices...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 71 of 92 8.3.4 FW/IEEE 1394 Configuration BIOS SETUP UTILITY Advanced Configure the Firewire FW/IEEE 1394 Configuration Device. FW/IEEE 1394 Configuration [Enabled] <- Select Screen Select Item change option General Help Save and Exit Exit V02.59+ (C)Copyright 1985-2005, American Megatrends, Inc.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 72 of 92 8.3.5 Advanced settings – Super IO Configuration BIOS SETUP UTILITY Advanced Allows BIOS to Select Configure Win627THF Super IO Chipset Serial Port1 Base Serial Port1 Address [3F8/IRQ4] Addresses. Serial Port2 Address [2F8/IRQ3] Serial Port2 Mode...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 73 of 92 8.3.6 Advanced settings – Hardware Health Configuration BIOS SETUP UTILITY Advanced Disable = Full Speed Hardware Health Configuration System Temperature :37ºC/98ºF Thermal: Does regulate CPU Temperature :43ºC/109ºF fan speed according to External Temperature Sensor :N/A specified temperature...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 74 of 92 8.3.7 Advanced settings – Voltage Monitor BIOS SETUP UTILITY Advanced Enable Hardware Health Voltage Monitor Monitoring Device. Requested Core :0.950 V VcoreA :0.934 V VcoreB :1.467 V +3.3Vin :3.387 V +5Vin :5.067 V...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 75 of 92 8.3.9 Advanced settings – APM Configuration BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Enable or Disable APM . APM Configuration Power Management/APM [Enabled] Video Power Down Mode [Suspend] Hard Disk Power Down Mode [Suspend]...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 76 of 92 Note on “Resume On PME#” (When using PCI LAN WOL function): BIOS version must be 986LCD27 or higher. The LAN card must have a Standby Voltage input to make it possible to implement WOL.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 77 of 92 8.3.11 Advanced settings – Remote Access Configuration BIOS SETUP UTILITY Advanced Select Remote Access Configure Remote Access type and parameters type. Remote Access [Enabled] Serial port number [COM1] Base Address, IRQ [3F8h, 4] Serial Port Mode...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 78 of 92 8.3.12 Advanced settings – USB Configuration BIOS SETUP UTILITY Advanced Enables support for USB Configuration legacy USB. AUTO Module Version – 2.24.0-11.4 option disables if no USB Devices are USB Devices Enabled : connected.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 79 of 92 8.3.13 Advanced settings – USB Mass Storage Device Configuration BIOS SETUP UTILITY Advanced Number of seconds POST USB Mass Storage Device Configuration waits for the USB mass USB Mass Storage Reset Delay [20 Sec] storage device after start unit command.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 80 of 92 8.4 PCIPnP Menu BIOS SETUP UTILITY PCIPnP NO: lets the BIOS Advanced PCI/PnP Settings configure all the Warning: Setting wrong values in below sections devices in the system. May cause system to malfunction.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 81 of 92 8.5 Boot Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Configure Settings Boot Settings during System Boot. > Boot Settings Configuration > Boot Device Priority <- Select Screen Select Item...
Page 82
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 82 of 92 Feature Options Description Quick Boot Allows BIOS to skip certain test while booting in Enabled Disabled order to decrease boot time. Quiet Boot Disabled: Displays normal POST messages. Disabled Enabled Enabled: Displays OEM Logo.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 84 of 92 8.6 Security Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Install or Change the Security Settings password. Supervisor Password :Not Installed User Password :Not Installed Change Supervisor Password Change User Password <-...
Page 85
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 85 of 92 Supervisor Password protection (setup Supervisor before User) Super- visor BIOS User Access control Full Date&Time * Supervisor PSW CMOS (most) View User Limit None * = also: Quick Boot Quiet Boot Repost Video on S3 Resume Active State Power-Management...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 86 of 92 8.7 Chipset Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Configures North Advanced Chipset Settings Bridge features. Warning: Setting wrong values in below sections may cause system to malfunction. >...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 88 of 92 8.7.3 Advanced Chipset Settings – SouthBridge Configuration BIOS SETUP UTILITY Chipset South Bridge Chipset Configuration Disabled 2 USB Ports 4 USB Ports USB Functions [8 USB Ports] 6 USB Ports USB 2.0 Controller [Enabled] 8 USB Ports...
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 89 of 92 8.8 Exit Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Exit Exit system setup Exit Options after saving the changes. Save Changes and Exit Discard Changes and Exit F10 Key can be used Discard Changes for this operation.
986LCD-M Family KTD-00691-Q Public User Manual Date: 2008-04-22 Page 90 of 92 8.9 AMI BIOS Beep Codes Boot Block Beep Codes: Number of Description Beeps Insert diskette in floppy drive A: ‘AMIBOOT.ROM’ file not found in root directory of diskette in A: Base Memory error Flash Programming successful Floppy read error...
Use the Setup.exe files for all relevant drivers. The drivers can be found on the 986LCD-M Driver CD or they can be downloaded from the homepage www.kontron.com Note: When installing/using ADD cards like ADD-DVI or ADD-LVDS it's possible that the OS start up without any connected display(s) active.
92 of 92 10. Warranty KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product.
