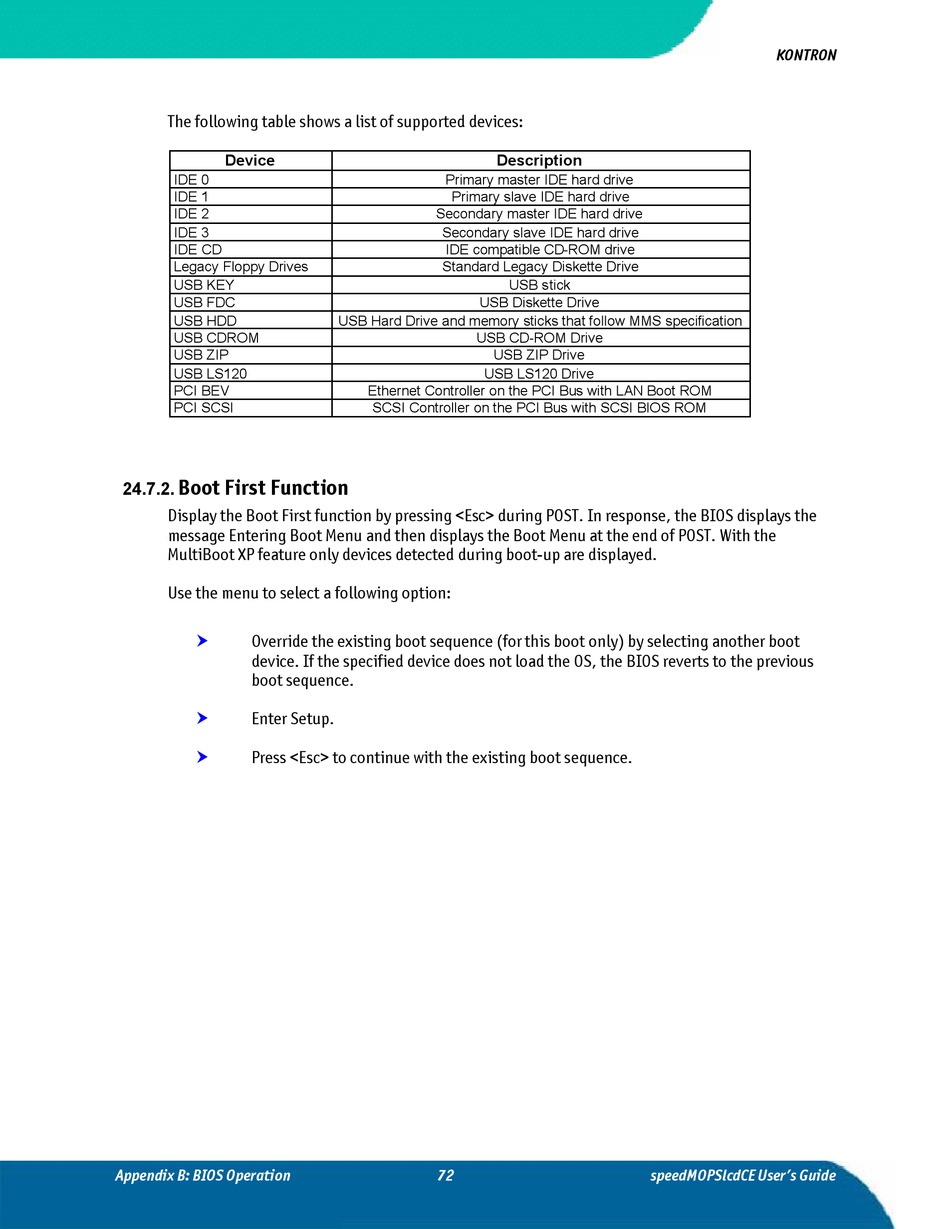

Boot First Function - Kontron speedMOPSlcdCE User Manual

The following table shows a list of supported devices:
Device
IDE 0
IDE 1
IDE 2
IDE 3
IDE CD
Legacy Floppy Drives
USB KEY
USB FDC
USB HDD
USB CDROM
USB ZIP
USB LS120
PCI BEV
PCI SCSI

Boot First Function

24.7.2.
Display the Boot First function by pressing <Esc> during POST. In response, the BIOS displays the
message Entering Boot Menu and then displays the Boot Menu at the end of POST. With the
MultiBoot XP feature only devices detected during boot-up are displayed.
Use the menu to select a following option:
 Override the existing boot sequence (for this boot only) by selecting another boot
device. If the specified device does not load the OS, the BIOS reverts to the previous
boot sequence.
 Enter Setup.

Press <Esc> to continue with the existing boot sequence.
Appendix B: BIOS Operation
Description
Primary master IDE hard drive
Primary slave IDE hard drive
Secondary master IDE hard drive
Secondary slave IDE hard drive
IDE compatible CD-ROM drive
Standard Legacy Diskette Drive
USB stick
USB Diskette Drive
USB Hard Drive and memory sticks that follow MMS specification
USB CD-ROM Drive
USB ZIP Drive
USB LS120 Drive
Ethernet Controller on the PCI Bus with LAN Boot ROM
SCSI Controller on the PCI Bus with SCSI BIOS ROM
72
KONTRON
speedMOPSlcdCE User's Guide
