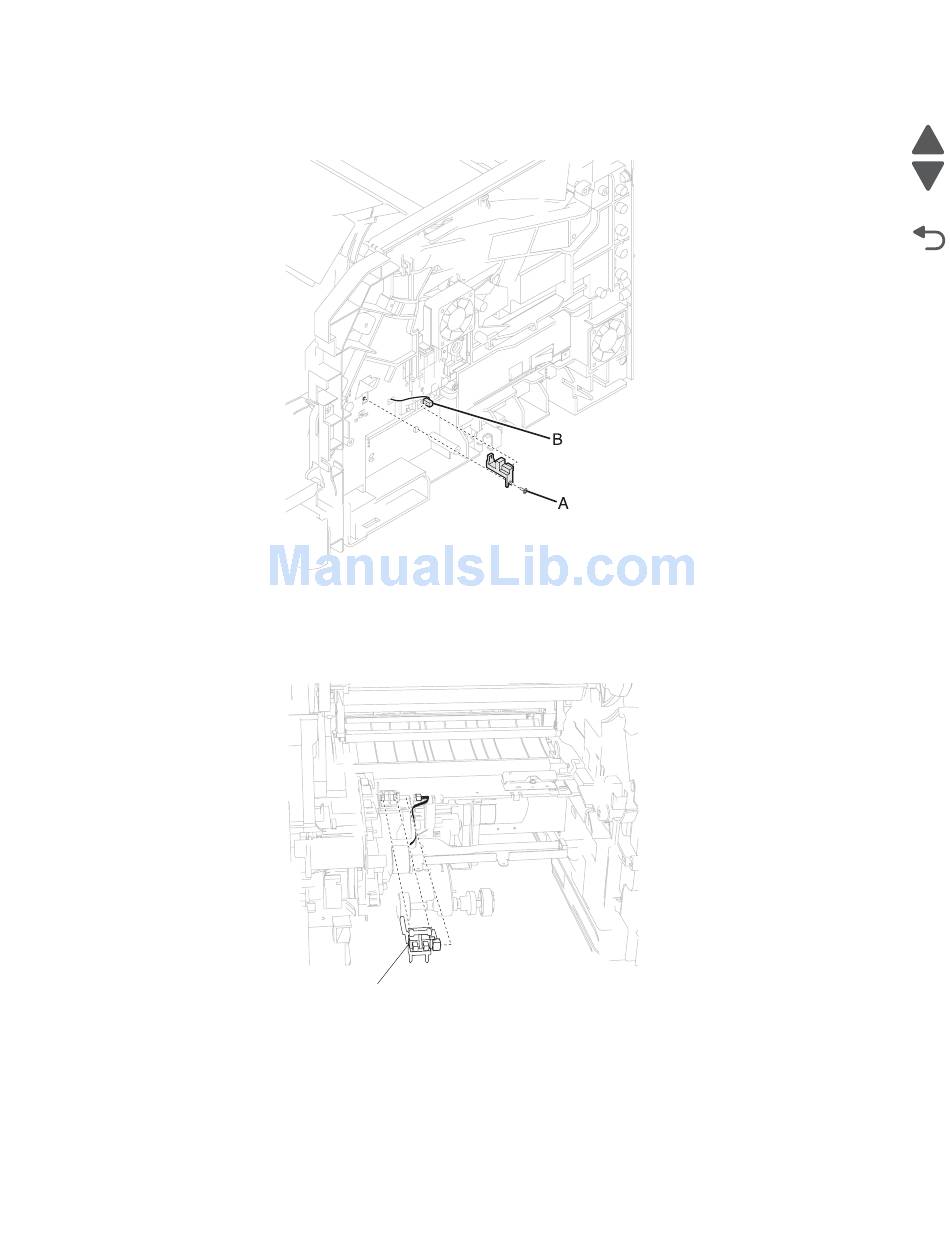

2. Remove the screw (A) securing the sensor (toner empty) to the machine.
3. Remove the sensor (toner empty).
4. Disconnect the connection (B) from the sensor (toner empty).

Sensor (input) removal

1. Remove the inner deflector. See
2. Release the hooks (A) securing the sensor (input) to the machine.
3. Remove the sensor (input).
4. Disconnect the connection (B) from the sensor (input).
Sensor shield assembly removal
1. Remove the inner deflector. See
4-42
Service Manual
"Inner deflector removal" on page
A
"Inner deflector removal" on page
4-17.
4-17.
