brake is closed from start up until the output current is
above the level selected in 2-20 Release Brake Current.
During stop, the mechanical brake activates when the
speed falls below the level specified in 2-21 Activate Brake
Speed [RPM]. If the frequency converter enters an alarm
condition or an over-current or over-voltage situation, the
mechanical brake immediately cuts in. This is also the case
during safe stop.
Start
1=on
term.18
0=o
Par 1-71
Start delay time
Shaft speed
Output current
Pre-magnetizing
current or
DC hold current
Par 2-23
Brake delay time
on
Relay 01
o
Mechanical brake
locked
Mechanical brake
free

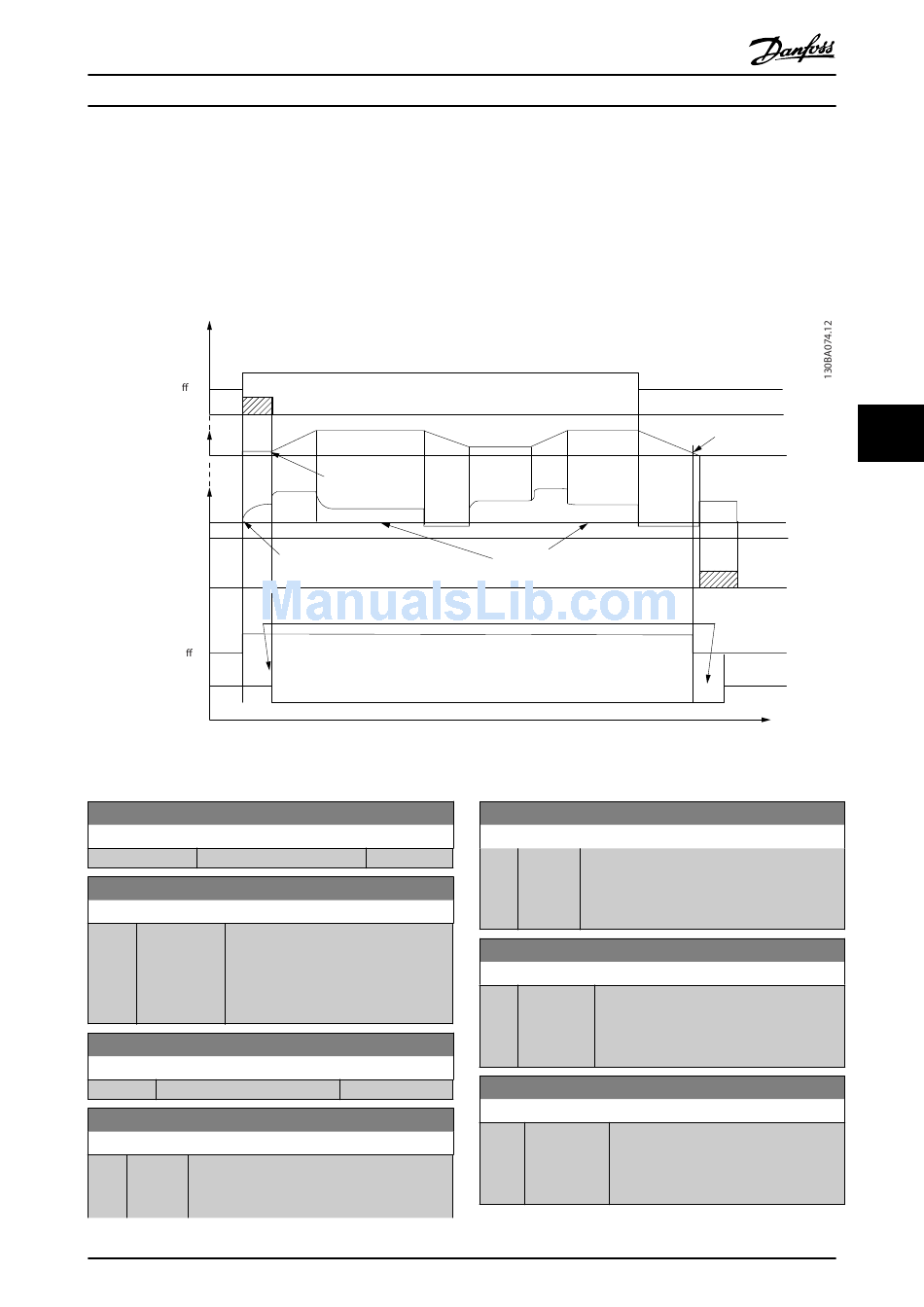

Illustration 6.8
2-20 Release Brake Current
Range:
par. 16-37 A
[0.00 - par. 16-37 A]
*
2-21 Activate Brake Speed [RPM]
Range:
Function:
0 RPM
[0 - 30000
Set the motor speed for activation of
*
RPM]
the mechanical brake, when a stop
condition is present. The upper speed
limit is specified in 4-53 Warning Speed
High.
2-22 Activate Brake Speed [Hz]
Range:
0 Hz
[0.0 - 5000.0 Hz]
*
2-23 Activate Brake Delay
Range:
Function:
0.0 s
[0.0 -
Enter the brake delay time of the coast after
*
5.0 s]
ramp-down time. The shaft is held at zero
speed with full holding torque. Ensure that the
VLT Automation Low Harmonic Drive Operating Instructions
Par 1-74
Start speed
Par 1-76 Start current/
Par 2-00 DC hold current
Reaction time EMK brake
Function:
Function:
®
MG34O202 - VLT
is a registered Danfoss trademark
NOTE
Protection mode and trip delay features (14-25 Trip Delay
at Torque Limit and 14-26 Trip Delay at Inverter Fault) may
delay the activation of the mechanical brake in an alarm
condition. These features must be disabled in hoisting
applications.
Par 2-20
Release brake current
2-23 Activate Brake Delay
Range:
Function:
mechanical brake has locked the load before
the motor enters coast mode. See Mechanical
Brake Control in the FC 300 Design Guide,
MG33BXYY.
2-24 Stop Delay
Range:
Function:
0.0 s
[0.0 - 5.0 s] Set the time interval from the moment
*
when the motor is stopped until the brake
closes. This parameter is a part of the
stopping function.
2-25 Brake Release Time
Range:
Function:
0.20 s
[0.00 - 5.00
This value defines the time it takes for
*
s]
the mechanical brake to open. This
parameter must act as a time-out when
brake feedback is activated.
6
Par 2-21
Activate brake
speed
Time
75
