How to Install
Fieldbus connection
Connections are made to the relevant options on the
control card. For details, see the relevant fieldbus
instruction. The cable must be placed in the provided path
inside the frequency converter and tied down together
with other control wires (see Illustration 4.32 and
Illustration 4.33).

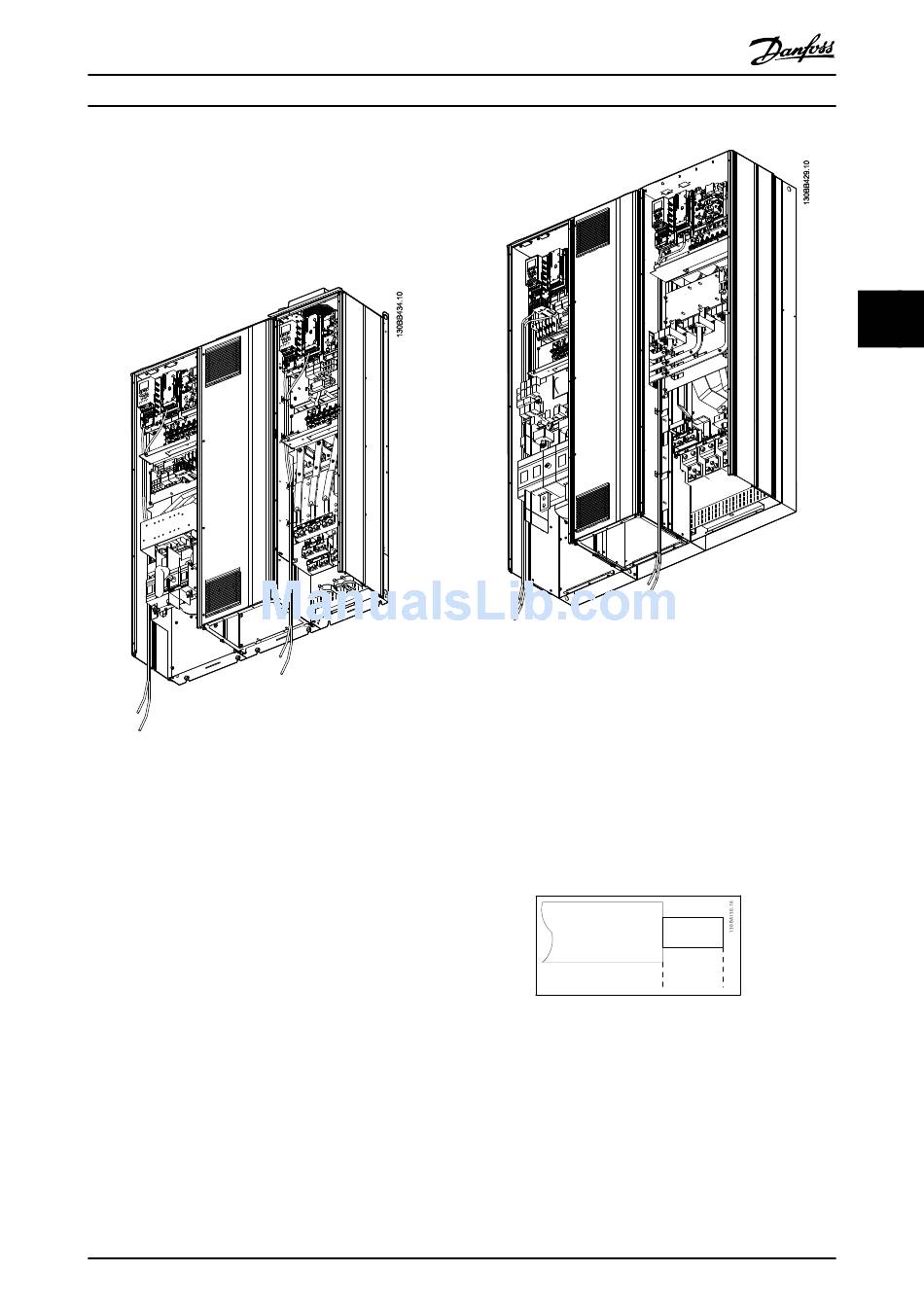

Illustration 4.32 Control card wiring path for the D13
VLT Automation Low Harmonic Drive Operating Instructions
Illustration 4.33 Control card wiring path for the E9
4.6.21 Access to Control Terminals
All terminals to the control cables are located beneath the
LCP (both filter and frequency converter LCP). They are
accessed by opening the door of the unit.
4.6.22 Electrical Installation, Control
To connect the cable to the terminal:
®
MG34O202 - VLT is a registered Danfoss trademark
Terminals
1. Strip insulation by about 9-10 mm
2. 1)
Insert a screwdriver in the square hole.
9 - 10 mm
(0.37 in)
