How to Install
4.3.8 IP21 Drip Shield Installation (Frame
size D)
To comply with the IP21 rating, a separate drip shield is
to be installed as explained below:
•
Remove the two front screws
•
Insert the drip shield and replace screws
•
Torque the screws to 5,6 Nm (50 in-lbs)
4 4
NOTE
Drip shield is necessary on both filter and frequency
converter section.

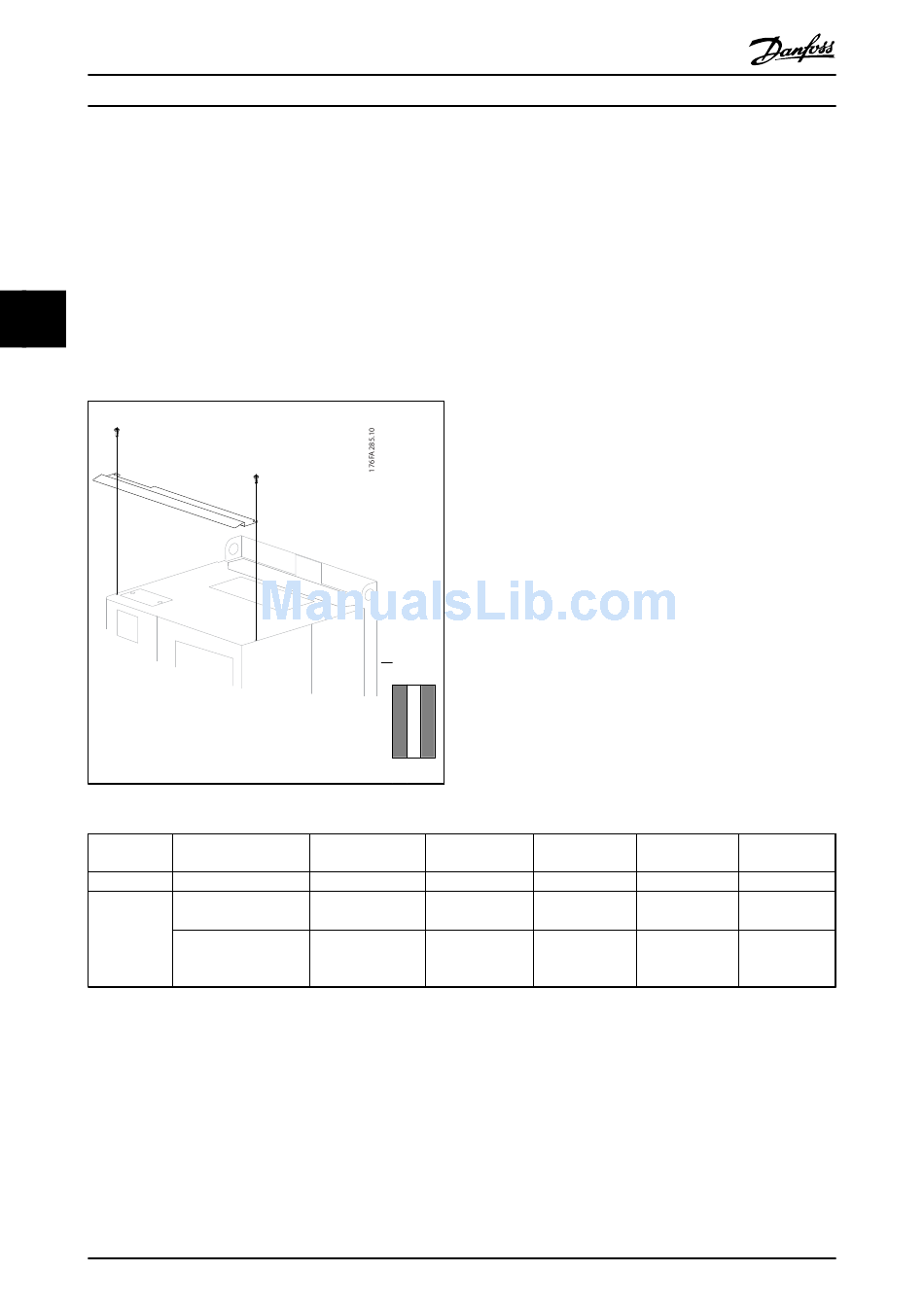

Illustration 4.23 Drip shield installation.
Table 4.11
D13
E9
Table 4.12
NOTE
For further information, please see the Instruction Sheet, 175R5795
32
380-480 V Fuses
380-500 V
176F8443
FC 102/ 202: 315 kW 176F0253
FC 302: 250 kW
FC 102/ 202: 355-450 176F0254
kW
FC 302: 315-400 kW
MG34O202 - VLT
VLT Automation Low Harmonic Drive Operating Instructions

4.4 Field Installation of Options

4.4.1 Installation of Input Plate Options

This section is for the field installation of input option kits
available for frequency converters in all D and E frames.
Do not attempt to remove RFI filters from input plates.
Damage may occur to RFI filters if they are removed from
the input plate.
NOTE
Where RFI filters are available, there are two different type
of RFI filters depending on the input plate combination
and the RFI filters interchangeable. Field installable kits in
certain cases are the same for all voltages.
↓ ↓
Disconnect Fuses
176F8441
176F0255
176F0256
®
is a registered Danfoss trademark
RFI RFI Fuses
176F8445 176F8449
176F0257 176F0258
176F0257 176F0259
RFI Disconnect
Fuses
176F8447
176F0260
176F0262
