How to Install

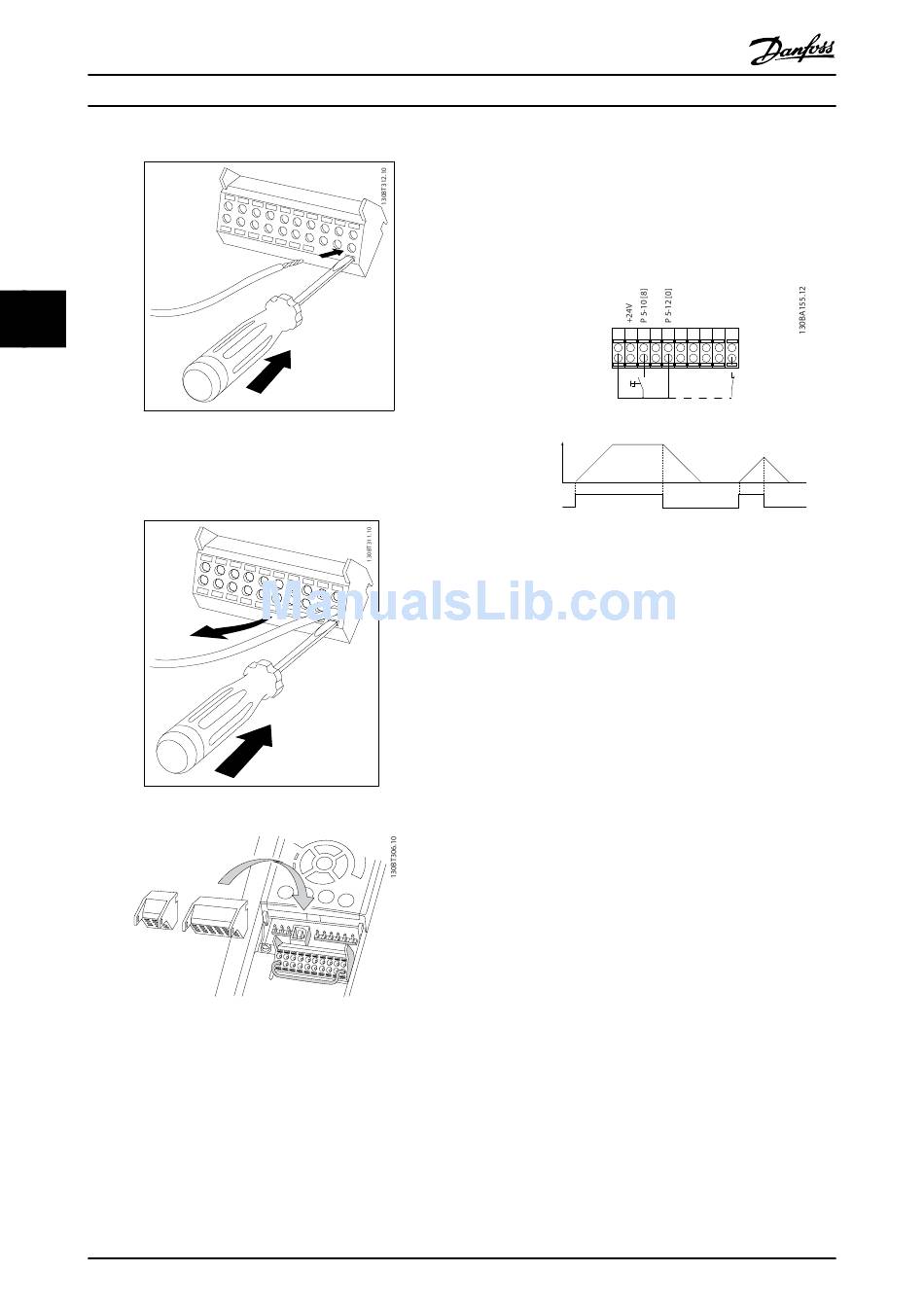

3. Insert the cable in the adjacent circular hole.
4 4
4. Remove the screwdriver. The cable is now
mounted in the terminal.
To remove the cable from the terminal:
1.
Insert a screw driver
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm
Illustration 4.34
4.7 Connection Examples for Control of
Motor with External Signal Provider
NOTE
The following examples refer only to the frequency
converter control card (right LCP), not the filter.
52
VLT Automation Low Harmonic Drive Operating Instructions
1)
in the square hole.
®
MG34O202 - VLT is a registered Danfoss trademark

4.7.1 Start/Stop

Terminal 18 = 5-10 Terminal 18 Digital Input [8] Start
Terminal 27 = 5-12 Terminal 27 Digital Input [0] No
operation (Default coast inverse)
Terminal 37 = Safe stop
12 13 18 19
Start/Stop
Speed
Start/Stop
[18]
Illustration 4.35
27 29 32 33 20 37
Safe Stop
