Danfoss VLT AutomationDrive FC 300 Operating Instructions Manual page 27

How to Install
Terminal locations - Rectifier
4 4
1

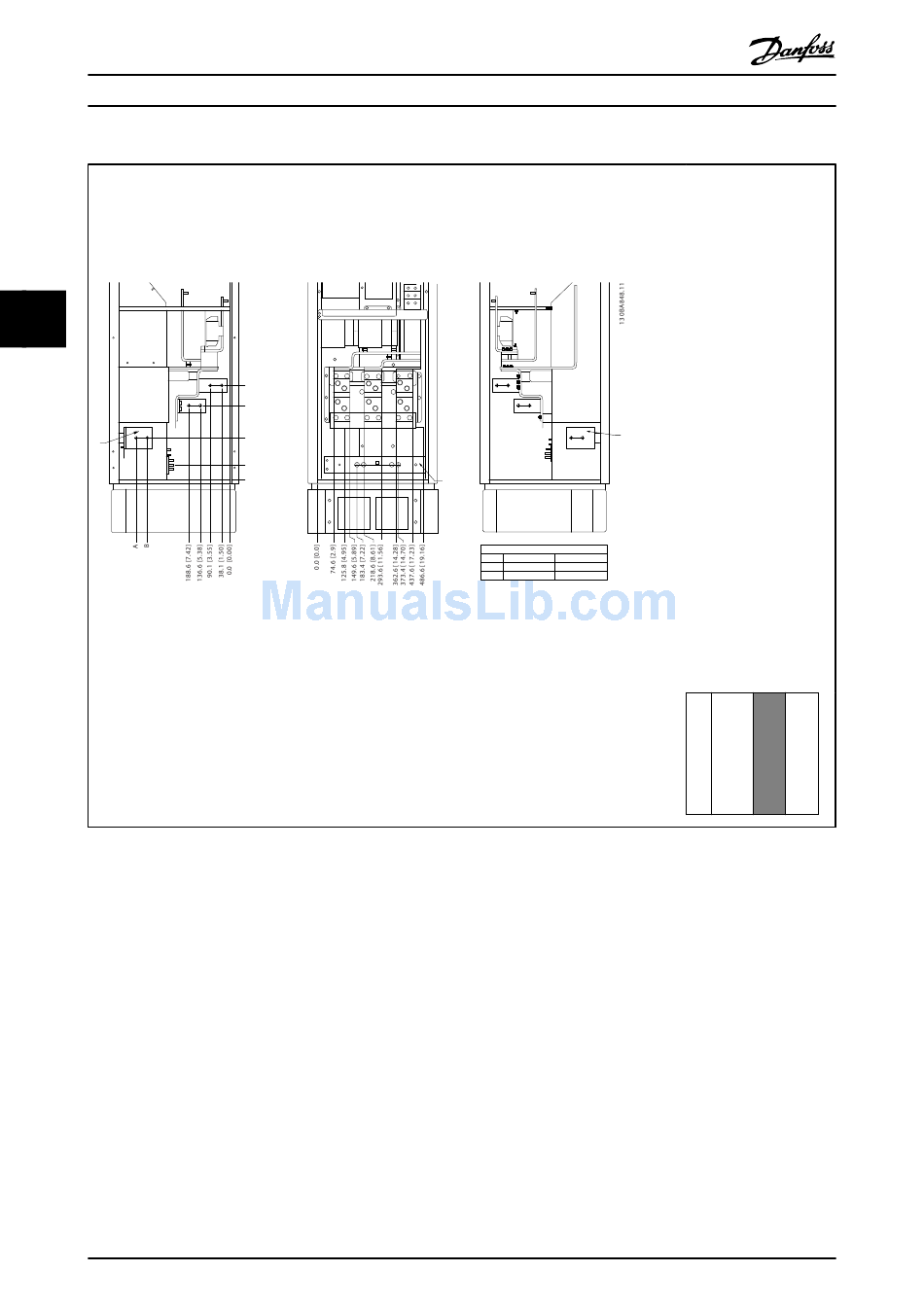

Illustration 4.14 Terminal locations - Rectifier
(Left side, front and right side view). The gland plate is 42 mm below .0 level.
1) Loadshare Terminal (-)
2) Earth ground bar
3) Loadshare Terminal (+)
Table 4.8
26
VLT Automation Low Harmonic Drive Operating Instructions
CH22 CH22 CH22 CH22 CH22 CH22
CTI25MB CTI25MB
435.5 [17.15]
343.1 [13.51]
FASTENER TORQUE: M8 9.6 Nm (7 FT-LB) FASTENER TORQUE: M10 19 Nm (14 FT-LB)
R/L1 91 S/L2 92 T/L3 93
193.9 [7.64]
FASTENER TORQUE: M10 19 Nm (14 FT-LB) FASTENER TORQUE: M10 19 Nm (14 FT-LB)
DC 89 DC 89
70.4 [2.77]
0.0 [0.00]
®
MG34O202 - VLT
2
LOAD SHARE LOCATION
DIM F1/F2 F3/F4
A 380.5 [14.98] 29.4 [1.16]
B 432.5 [17.03] 81.4 [3.20]
is a registered Danfoss trademark
3
Section shown
↓
