4.3 Mechanical Installation

Preparation of the mechanical installation of the frequency
converter must be done carefully to ensure a proper result
and to avoid additional work during installation. Start
taking a close look at the mechanical drawings at the end
of this instruction to become familiar with the space
demands.
4.3.1 Tools Needed
Tools needed for mechanical installation:
•
Drill with 10 or 12 mm drill
•
Tape measure
•
Screw driver
•
Wrench with relevant metric sockets (7-17 mm)
•
Extensions to wrench
•
Sheet metal punch for conduits or cable glands
•
Lifting bar to lift the unit (rod or tube max. Ø 25
mm (1 inch), able to lift minimum 1000 kg).
•
Crane other lifting aid to place the unit in
position
•
Torx T50 tool
20
VLT Automation Low Harmonic Drive Operating Instructions
Mechanical Dimensions and Rated Power
IP
NEMA
Height
Width
Depth
Max Weight
Shipping
Weight
Frame size
IP
NEMA
torque
Height
Width
Depth
Max Weight
Shipping
Weight
MG34O202 - VLT
D13
21/54
Type 1/Type 12
132 - 200 kW at 400 V
(380 - 480 V)
1780.5 mm/70.1"
1021.9 mm/40.23"
377.8 mm/14.87"
390 kg/860 lbs.
435 kg/959 lbs.
450 - 630 kW at 400 V
2278.4 mm/89.70"
2792 mm/109.92"
605.8 mm/23.85"
1900 kg/4189 lbs.
2262 kg/4987 lbs.
4.3.2 General Considerations
Space
Ensure proper space above and below the frequency
converter to allow airflow and cable access. In addition
space in front of the unit must be considered to enable
opening of the door of the panel.

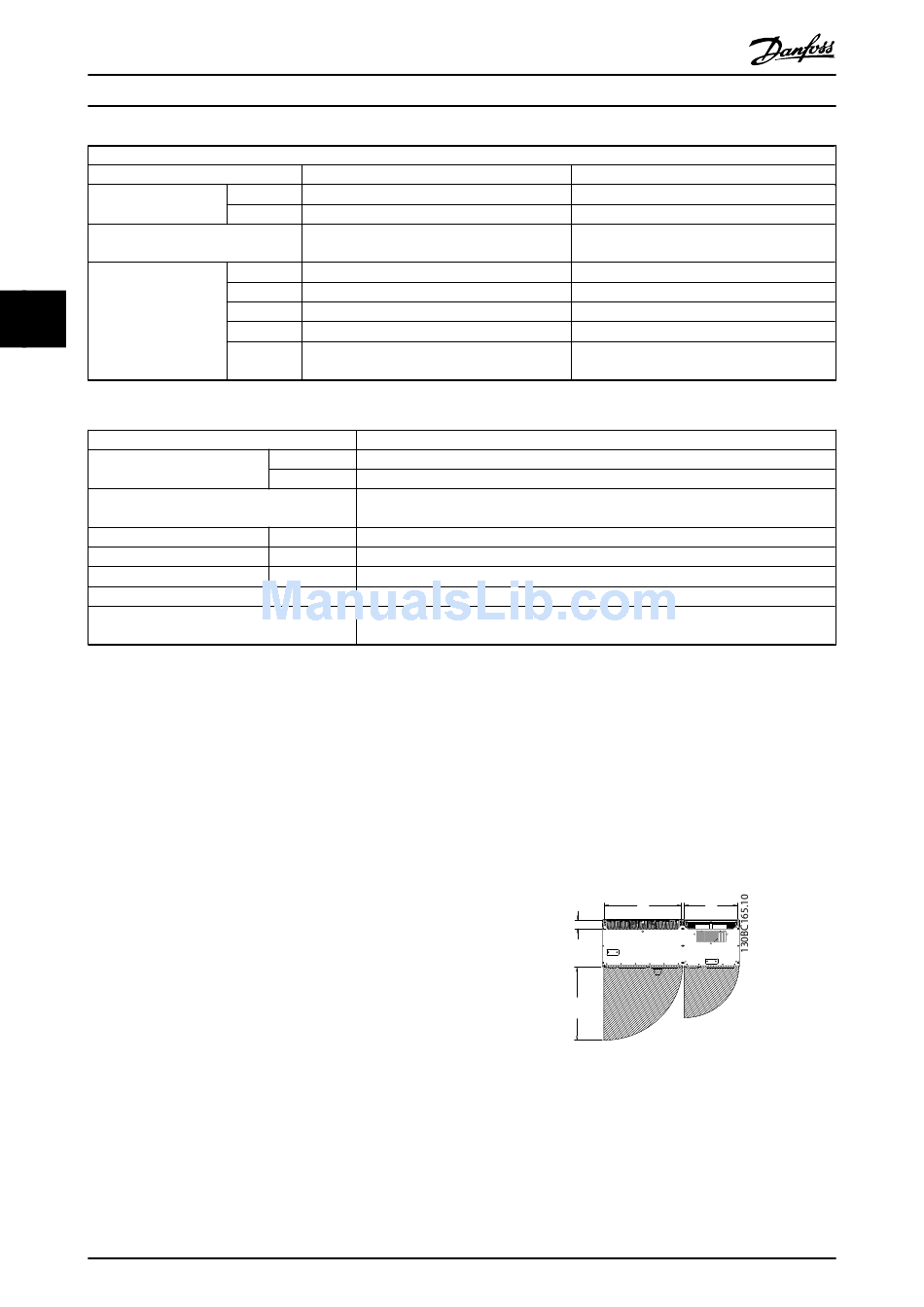

Illustration 4.10 Space in front of IP21/IP54 enclosure type, frame
size D13.
®
