Meter Toolbars

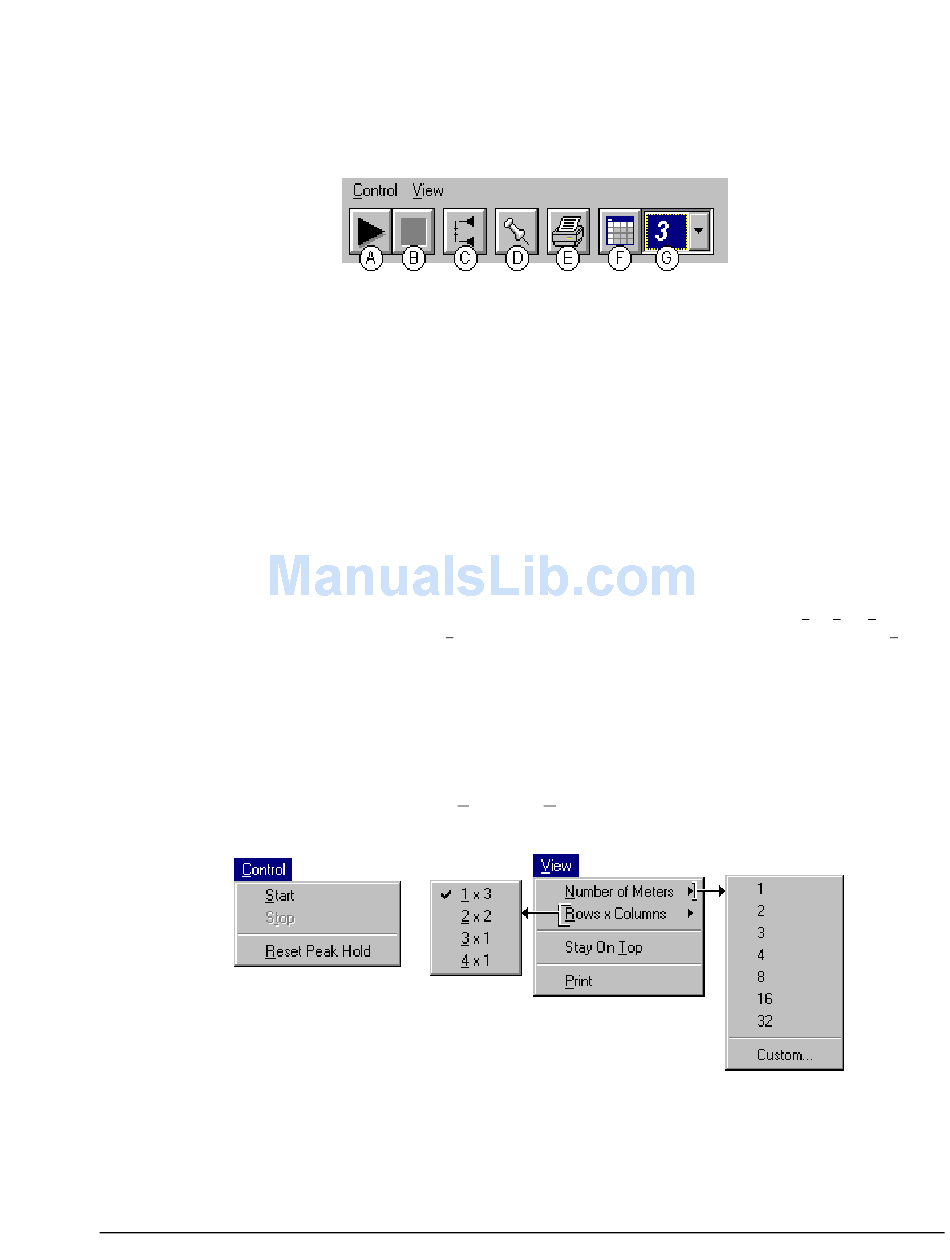

The toolbars for the three meter types are identical, with exception that the Digital Meters toolbar does
not have a Reset Peak Hold button (item C in the following figure).
Item
A
B
C
D
E
F
G

Meter Pull-Down Menus

The meters windows each have a Control and View pull-down menu, as indicated by the following
figure. The functions of these menus can also be implemented by using the toolbar buttons.
ChartScan User's Manual
Meters Toolbar Buttons
Name Function
Start Starts meters.
Stop Stops meters.
Reset Peak Hold Resets the floating markers. Upon reset, the markers will instantly
Indicator adjust to indicate the highest and lowest values reached since the time
of the reset. This feature does not apply to the Digital Meters.
Stay On Top Locks or unlocks the meter window on top of other windows.
(Push pin)
Print Sends the meter(s) display image to connected printer.
Rows x Columns Opens a small menu with "row x column" arrangement options. Example:
When the number of meters is 6 the grid options will be: 6x1, 3x2, 2x3, and
2x4 with the first number being the number of rows. If you then select 3x2,
you will have 3 rows of meters with 2 meters per row.
Number of Meters Specifies the number of meters to appear on the screen.
A maximum number of 32 meters can be selected.
ChartView Software Reference 4-31
