A Manual Chart Creation, Create Charts button allows you to bypass the Chart Setup Wizard and enter a
manual mode. This option makes use of ChartView's Display Configuration feature (reference page 4-9).
Manual chart creation allows you to vary the number of assigned channels per chart, as well as vary the number
of charts per group.
Setup Type
Simple
1
Moderate
1
Advanced
1
Note : Moderate and Advanced modes of Automatic Chart Creation are only available with ChartView Plus. The
standard ChartView program allows for 1 chart group only, and does not permit overlapping channels.
2
Note : The Manual Chart Creation, Create Charts button (above figure) allows you to exit the Chart Setup Wizard and
enter a manual create chart display mode.

Automatic Chart Setup with Wizard

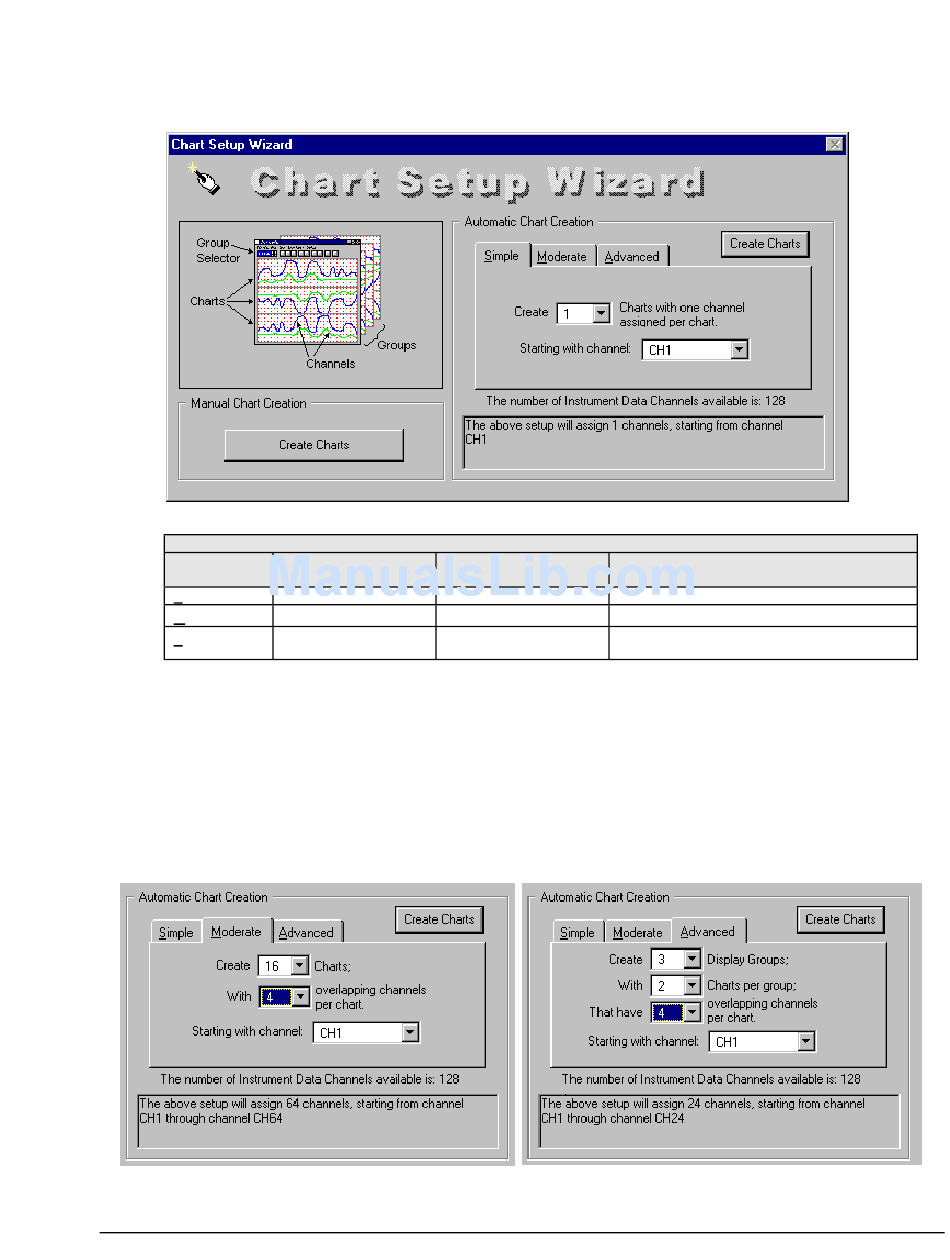

The previous figure shows the Simple mode dialog box for Automatic Chart Creation. The following figures show the
Moderate and Advanced mode dialog boxes (available only with ChartView Plus).
Dialog Boxes for Moderate and Advanced Modes of Automatic Chart Creation, ChartView Plus Only
ChartScan User's Manual
Chart Setup Wizard, Simple Mode
Chart Setup Wizard, Automatic Setup Options
Group Setup Chart Setup
(for Chart Groups)
1 group only Up to 16 charts
1 group only Up to 16 charts
Up to 64 groups Up to 16 charts per
group
Channel Setup
1 channel per chart
Up to 4 overlapping channels per chart
Up to 4 overlapping channels per chart
ChartView Software Reference 4-45
