eZ-PostView

Introduction

ChartScan systems can now make use of the post-acquisition data viewing program, eZ-PostView and a
Microsoft Excel add-in known as ViewXL.
eZ-PostView is a time-domain post-acquisition data viewing application that has been integrated with primary data
acquisition software, including DaqView, Personal DaqView, ChartView, LogView, and WaveView.
ViewXL is a Microsoft Excel Add-In that provides setup and data acquisition for personal computers running 32-bit
versions of Microsoft Windows. The features of Excel and the selected data acquisition program, for example,
ChartView, combine seamlessly to form a powerful data acquisition tool.
Documentation for both of these applications is in the Adobe PDF format, and is included on your installation CD.
A brief introduction to each application follows.
eZ-PostView

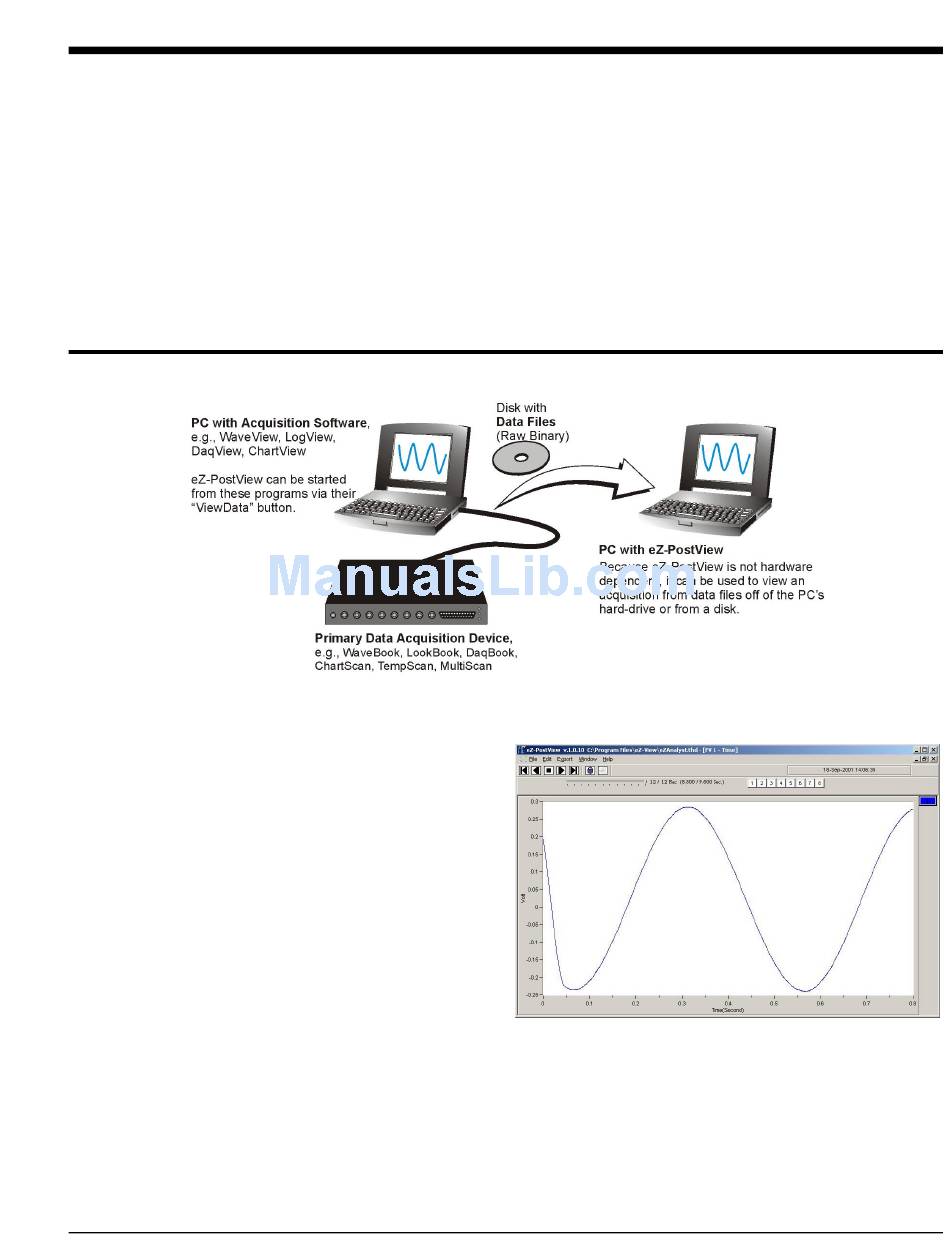

eZ-PostView Can Be Used without the Presence of Acquisition Hardware
eZ-PostView is a time-domain post-acquisition data
viewing application that has been integrated with
primary data acquisition software, including
DaqView, Personal DaqView, ChartView,
LogView, and WaveView.
The eZ-PostView application provides easy-to-use
post-acquisition analysis capability, and is included
free of charge as a part of product support. From
this application you can display up to eight time-
domain function windows and display up to sixteen
channel traces per window. Data is automatically
scaled to optimize its fit in the window.
From eZ-PostView you can customize window,
channel trace, and cursor colors.
Once installed, eZ-PostView can be launched from the data-acquisition program by a simple click of the
<View Data> button. As an alternative, the application can be launched independent of the acquisition program
and supported data files can be loaded for viewing.
ChartScan User's Manual
ViewXL
and
A Screen Capture from eZ-PostView
