Omega Engineering OMB-CHARTSCAN 1400 User Manual page 39

Steps for RS-232/422 Configuration
Standard Units, Only
1. Turn the ChartScan system's power "OFF."
2. Ensure the COMM SELECT micro-switch (on the
rear-panel DIP switch) is in the "0" (down)
position.
3. Adjust micro-switches 2 through 9 (for parameter
preferences), according to the following table for
standard units.

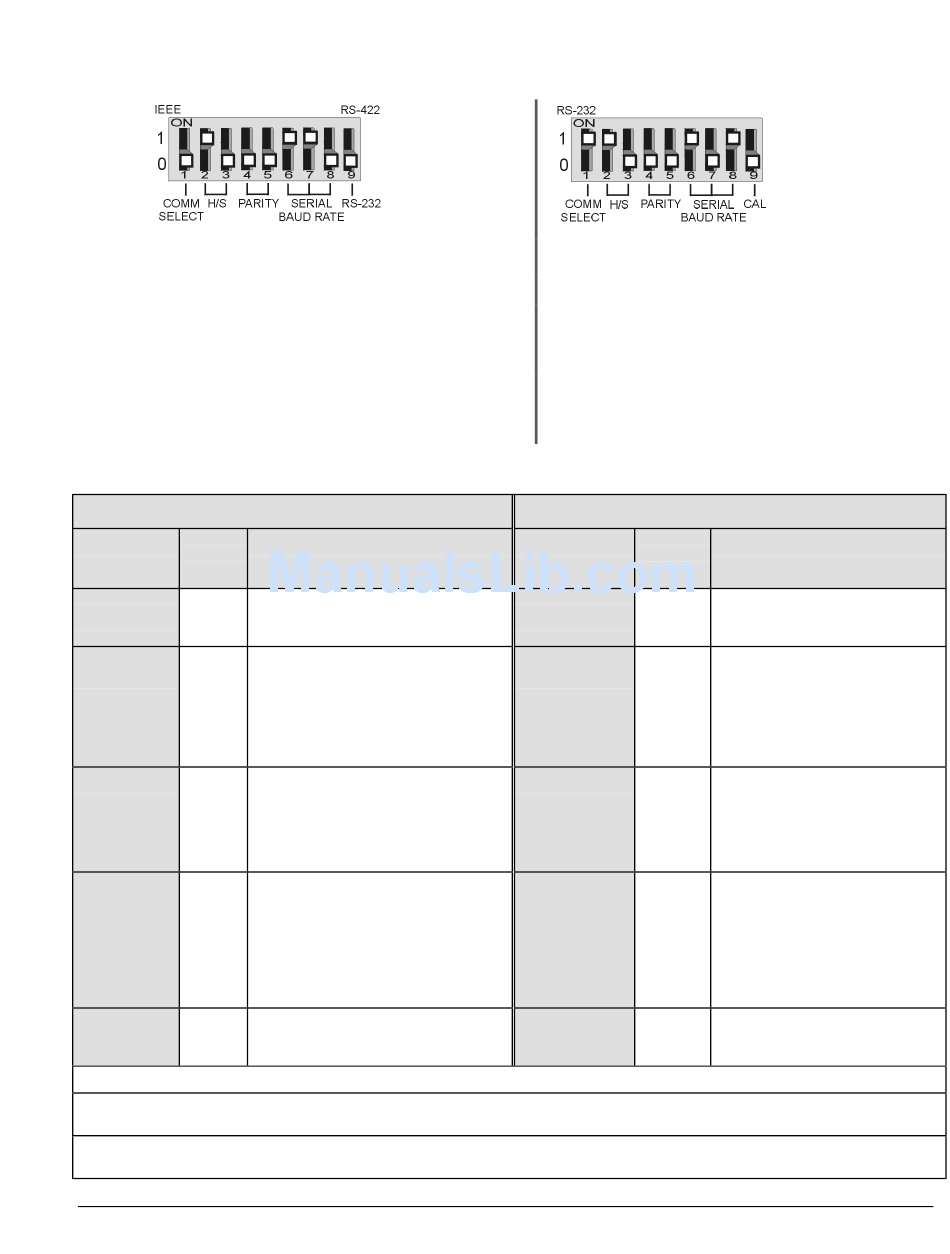

Note: Early production ChartScan units do not have a Calibration Enable/Disable Pushbutton. If you have an
early production unit, refer to the right-hand DIP switch illustration, above.
RS-232/422 Serial Settings (Standard Units)
Selection Micro-
Switch
#
COMM 1 0 – Serial Communication; RS-232 or
SELECT
1- Selects IEEE 488.
HANDSHAKE 2,3 0, 0- No Handshake
(H/S) 0, 1- Software Handshake Only
1, 0- Hardware Handshake Only
1, 1- Both Hardware and Software
PARITY 4,5 0, 0 - No Parity
0, 1- Odd Parity
1, 0- Even Parity
1, 1- N/A
SERIAL 6,7,8 0,0,0- 300 Baud
2
BAUD RATE 0,0,1- 600 Baud
0,1,0- 1200 Baud
0,1,1- 2400 Baud
1,0,0- 4800 Baud
1,0,1- 9600 Baud
1,1,0- 19200 Baud
1,1,1- N/A
RS-232 or 9 0- Selects RS-232 serial*
RS-422 1- Selects RS-422 serial*
* (switch #1 must be in the "0" position)
1
ChartView software will not run when Handshake is set for "Software Handshake Only," (0, 1).
2
It is recommended that you do not exceed 9600 Baud unless you have firmware version 1.3 or greater. The firmware version can be read in
ChartView's title bar.
3
At 9600 and 19200 Baud Rates, Hardware Handshake should be set to "Hardware Handshake Only" (1, 0). We recommend that you do not
exceed 9600 Baud unless you have firmware version 1.3 or greater. The firmware version can be read in ChartView's title bar.
Hardware
Setting
RS-422 depending on switch 9.
1
(XON/XOFF)
(RTS/CTS)
Handshake
3
3
Early Production Units, Only
1. Turn the ChartScan system's power "OFF."
2. Ensure the COMM SELECT micro-switch (on the
rear-panel DIP switch) is in the "1" (up) position.
3. Adjust micro-switches 2 through 8 (for parameter
preferences), according to the following table for
early production units.
RS-232/422 Serial Settings (Early Production Units)
Selection Micro-
Switch
#
COMM 1
SELECT
HANDSHAKE 2,3
(H/S)
PARITY 4,5
SERIAL 6,7,8
2
BAUD RATE
CALIBRATION 9
MODE
Setting
0- selects IEEE 488 interface card.
1- Selects RS-232/422.
0, 0- No Handshake
0, 1- Software Handshake Only
(XON/XOFF)
1, 0- Hardware Handshake Only
(RTS/CTS)
1, 1- Both Hardware and Software
Handshake
0, 0 - No Parity
0, 1- Odd Parity
1, 0- Even Parity
1, 1- N/A
0,0,0- 300 Baud
0,0,1- 600 Baud
0,1,0- 1200 Baud
0,1,1- 2400 Baud
1,0,0- 4800 Baud
3
1,0,1- 9600 Baud
2,3
1,1,0- 19200 Baud
1,1,1- N/A
0- Calibration Mode Disabled
1- Calibration Mode Enabled
(normal position is "0")
1
3-7
