(4a) Automatically add groups to the setup. Enter the number of groups and charts desired by using the cursor
and typing in the value, or by using the pull-down arrows (τ) and making the appropriate selections; then click
on the Create Groups button.
(4b) Manually add groups to the setup. Type in the name of the chart group; then click on the Add Display
Group button.

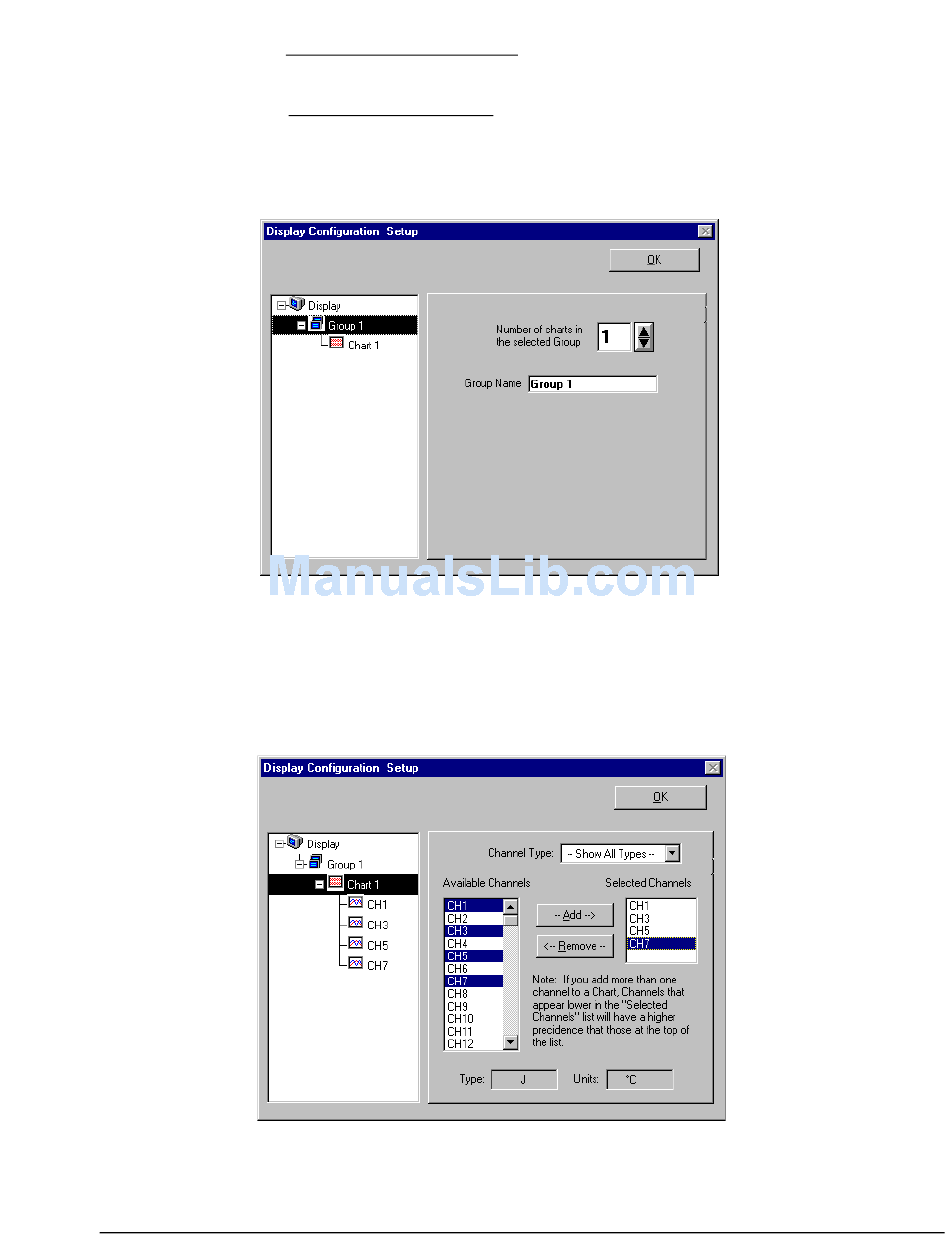

The Display Configuration Setup screen changes to show chart groups, and the number of charts
for the selected (black highlighted) chart group. From this screen you can change the number of
charts in a group, as well as change the group name.
5. Change the number of charts per group if desired.
6. Change the group name if desired.
7. Click on a group to see the chart(s) assigned to the group. In the above example there is one group
with one chart.
8. Click on a chart to assign channels to the chart. A screen similar to the following will appear.
ChartScan User's Manual
Adding a Chart to Group 1
Assigning Channels to Chart 1 of Group 1
ChartView Software Reference 4-13
