Related Manuals for Omega Engineering Rercorder RD8300
Summary of Contents for Omega Engineering Rercorder RD8300
- Page 1 User’ s Guide MADE IN Shop online at www.omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info RD8300 Recorder...
- Page 2 OMEGAnet t t t t OMEGAne OMEGAne ® On-Line Service On-Line Service OMEGAne OMEGAne On-Line Service On-Line Service On-Line Service http://www.omega.com http://www.omega.com http://www.omega.com http://www.omega.com http://www.omega.com Servicing North America: USA: USA: USA: USA: USA: One Omega Drive, Box 4047 Stamford, CT 06907-0047 ISO 9001 Certified Tel: (203) 359-1660 e-mail: info@omega.com...
-
Page 3: Table Of Contents
1.0 TABLE OF CONTENTS: 1.0 Table of Contents: ... i Warning and Safety Notice ... v 2.0 Overview ... 1 General Description ... 1 System Overview ... 2 Recorder Front ... 4 2.3.1 Display Area ... 4 2.3.2 Media Door ... 5 2.3.3 Status Indicator ... -
Page 4: Table Of Contents
Section 1.0 Table of Contents 3.1.4 Equipment Return ... 13 3.1.5 Storage ... 13 Environment and Location ... 13 Installation ... 14 3.3.1 Panel Mounting ... 15 Wiring Specifications and Procedures ... 17 3.4.1 Power Requirements ... 17 3.4.2 Power Connections ... 17 3.4.3 Signal Input Wiring ... - Page 5 Section 1.0 Table of Contents Timer/Totalizer Reset ... 31 4.10 Special Events ... 31 4.10.1 Record on Alarm ... 31 4.10.2 Record on External Event ... 31 4.10.3 Email on Alarm Event ... 32 4.11 Turning the unit off ... 32 4.12 Annotating Trends ...
- Page 6 Section 1.0 Table of Contents 5.3.2 Bar Graphs ... 54 5.3.2.1 Bar Graph Setup ... 54 5.3.2.2 Trend Setup ... 57 5.3.2.3 Trend Setup Window ... 57 Alarms ... 59 5.4.1 Alarm Master Setup ... 60 5.4.1.1 Alarm Setup ... 61 Digital Input/Output ...
- Page 7 Section 1.0 Table of Contents 5.7.11 Languages ... 79 5.7.12 System ReFlash ... 79 6.0 Communication ... 81 World Wide Web ... 81 Web Based FTP Manager ... 83 Ethernet Protocols ... 86 6.3.1 OPC Server ... 86 6.3.2 Modbus Server ... 87 6.3.2.1 Modbus Status Registers ...
- Page 8 Warnings and Safety Precautions NOTE The contents of this manual are correct at the time of issue. The contents may change at any time without prior notification. This is due to continuous developments to the recorder and its functionality. Trademarks ...
-
Page 9: Warning And Safety Notice
A switch or circuit breaker which complies with the requirements of IEC 60947-1 and IEC 60947-3 A separable coupler which can be disconnected without the use of a tool ... -
Page 10: Overview
Section 2 - Overview 2.0 OVERVIEW This manual applies to Firmware version 1.0 and above. This section gives a system overview of the recorder and the basic elements involved. General Description The recorder is an 18 channel unit capable of measuring 6 or 12 live inputs which can be a combination of linear inputs –... -
Page 11: System Overview
Section 2 - Overview System Overview Refer to the figure below: RELAY MASTER ALARM MASTER SETUP OUTPUTS ENABLE DIGITAL OUTPUT SETUP DIGITAL INPUTS MASTER ENABLE DIGITAL INPUT SETUP CHANNEL SETUP CALIBRATION ANALOG INPUTS The recorder block diagram shows the major elements of the unit. The Analog Inputs module scans the live inputs (6 or 12 channel) at a rate of 10 times per second per channel, converting the analog inputs to digital values and applying a time stamp to the digitized data. - Page 12 Digital inputs can be used to reset timers or totalizers, acknowledge and reset alarms, force events or start recording. There is a (soft) Master enable switch which allows the user to configure the (optional) digital inputs without affecting the actual operation of the recorder.
-
Page 13: Recorder Front

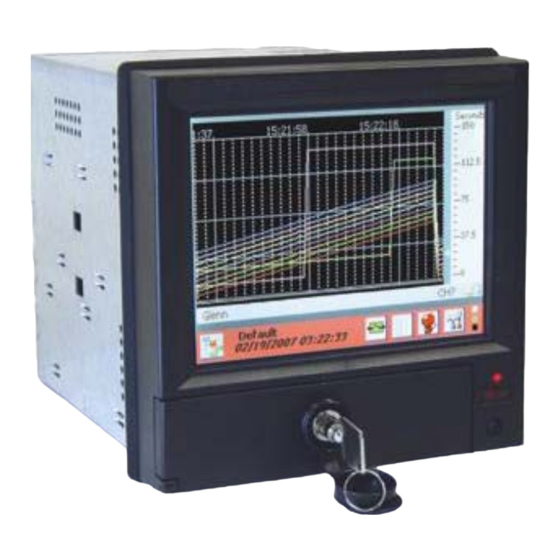

Section 2 - Overview Recorder Front Figure 2-2 shows the front view of the recorder. The recorder has a ¼ VGA color display with touch screen. Below the display are a lockable media door, status indicator, IR COMM port and stylus used for data entry on the display. -
Page 14: Media Door
Section 2 - Overview 2.3.2 Media Door The media door is opened by turning the key in the lock ¼ turn clockwise and pulling the door out and down. Note that in order to meet the water resistance specification (IP65) the door must be closed and locked and the waterproof lock cover must be snapped over the lock. -
Page 15: Recorder Rear Panel
(100mA). Below this is the battery disconnect switch. The battery is used to enable the system to shut down correctly and survive short power outages or brown outs. It should be disconnected for storage or shipping purposes. The system-grounding lug is used to properly ground the recorder on installation. -
Page 16: Input/Output Module
Figure 2-4 above. Slide the switch toward whichever connector is being used. The Type of port selected, A or B depends on what is to be connected to it. To the left of these connectors are two mini-din style connectors. The mouse / keyboard connector allows the use of an external PS2 PC style mouse directly or a PS2 PC style keyboard using an available adapter board which will accommodate both mouse and keyboard together. -
Page 17: Files
Section 2 - Overview Files 2.5.1 Configuration Files The recorder has hundreds of options and settings that need to be set up by the user. Things like input types, point tags, displays, record information and so-on. Once set up, this information is saved in the internal memory (SD Card) as a user named configuration file in a special directory called ConfigFiles. -
Page 18: Data Files
Section 2 - Overview Eg: To copy the “pumphouse” configuration to a different media you need to go to the ConfigFiles directory and copy the FOLDER “pumphouse_cfg”. In the root of the internal memory (SD card) are two files – config.xml and displays.xml. These are the default configuration files used by the system. -
Page 19: Quick Start Guide
Section 2 - Overview QUICK START GUIDE The recorder ships in a fully functional mode, but may not be set up the way you would want to use it and needs to be configured before it is used. There are several areas that need to be configured to customize the unit to the user‟s needs. This unique combination of settings is referred to as the system configuration and is saved in a file called the configuration file which is physically named config.xml. -
Page 20: Keyboarding
Section 2 - Overview Keyboarding While it is possible to connect a standard mouse to the recorder, one may not be readily available in which case data is entered using the pop-up keyboard as shown right. When you enter a recorder setup screen where it is necessary to type in data, the instant you tap the input field box the keyboard pops up. -
Page 21: User Levels
Section 2 - Overview 2.11.1 User Levels There are three user levels for gaining direct access to the recorder. User levels are only active if security is enabled. The three levels are Administrator: Has access to all levels of the recorder menus and systems. Manager: Has restricted access. -
Page 22: Installation
3.0 INSTALLATION This section provides information and procedures on installing and wiring the recorder. Included are handling procedures, installation and wiring specifications, and instructions for both standard and optional equipment. Equipment Handling 3.1.1 Initial Inspection Exercise care when unpacking the instrument from the shipping carton. The instrument is packed in a shockproof foam retainer to prevent damage during normal transit. -
Page 23: Installation
Disconnection from the supply must be possible via a customer supplied switch or circuit breaker. This disconnection device must be included in the panel installation and should be clearly marked, in close proximity to the Recorder and easily accessible to the operator. -
Page 24: Panel Mounting
3.3.1 Panel Mounting The recorder should be mounted in a vertical panel to ensure proper operation. Note that the locking bars can be used on the sides or top and bottom of the unit depending on available space. Ensure you have the proper clearances and proceed as follows: 3.3.1.1 Cut a panel opening 5.43”... - Page 25 Section 3 – Installation Panel Front Gasket Figure 3-3 Front Panel Insertion Panel Back Seal unused slots Locking Bar Assembly Figure 3-4 Rear View Panel Insertion Page 16 09/11/2008 REV 0.99...
-
Page 26: Wiring Specifications And Procedures
The recorder is designed to be panel mounted and as such should be considered as permanently connected. Disconnection from the supply must be possible via a customer supplied switch or circuit breaker. This disconnection device must be included in the panel installation and should be clearly marked, in close proximity to the recorder and easily accessible to the operator. -
Page 27: Signal Input Wiring
3.4.3 Signal Input Wiring Signal input connections. Hazardous potentials may exist on signal input terminals which are floating with respect to case ground. These hazardous potentials may be on the rear terminal panel of your instrument. Any voltage potential at the signal source will exist on the instrument’s respective signal input terminal (i.e. -
Page 28: Analog Inputs
Read the following procedures prior to connecting inputs to the terminals. WARNING: Ensure the power is off before connecting signal inputs to the unit. The plug in screw terminal connectors are of the clamping screw variety, putting even pressure on the signal wire. -
Page 29: Potential Free Contacts
Potential Free Contacts 3.4.3.5 Normally open/closed contact inputs. Frequency 3.4.3.6 Available on channels 1, 6, 7 and 12 only. Default input is for 12 to 24V DC @ 20mA max. The inputs can be jumpered internally for 5 to 12V dc. See 50 Ω... -
Page 30: Relay Output, Contact Input
3.4.4 Relay Output, Contact Input WARNING To prevent the possibility of electrical shock, use extreme caution when wiring contact output connections. Hazardous potentials may exist on contact output terminals which are floating with respect to instrument ground. These hazardous potentials may be exposed on the rear terminal panel of your instrument. Any voltage potentials at the contact circuit will exist on the instrument’s respective contact output terminals (i.e. -
Page 31: Usb Connection
The switch is set below the surface. Slide the switch toward the connector you want active – A or B BEFORE powering up the unit. Use standard shielded USB connector cables to connect to your USB device (Host PC to USB B –... -
Page 32: 24Vdc Isolated Output (Option)
24Vdc Isolated Output (Option) The Isolated 24Vdc Output is an option that provides 24 Volts DC @ 100 milliamps to power external (current loop) sensors. The output is isolated to 1000 volts from all internal voltages and ground. The output is also protected against short circuit. The output is polarized and is marked for positive (+) and negative (-). -
Page 33: Fuctional Description
4.0 FUNCTIONAL DESCRIPTION Display Elements Digital Display Bar Graph A Typical display on the recorder is shown above. The actual content of the window will vary according to what has been set up by the user. The display has two parts to it - the Task Bar along the bottom of the screen and the Live Display Area which is the rest of the screen. -
Page 34: Utility Setup Menu
There are 5 button icons in the Task Bar. They vary according to the status of the recorder. They are from left to right: Utility Setup Menu Button – This button takes the user to the can configure and control the recorder. Alarm Contacts Reset Button –... - Page 35 Section 4 – Functional Description System Admin Menu– Allows the administrator (if security is enabled) to enter the system administration menu. This allows the recorder to be configured at the base level (passwords, security etc.) Details Here Sound Level Adjust – Allows the user to adjust the sound level of alarms and prompts. This brings up a slider bar.
-
Page 36: Alarm, Event And Activity Logs
Alarm, Event and Activity Logs While viewing a live display, pressing the Events button (left) on the task bar brings up the Event and Alarm logs as shown right. Each time this button is pressed it will move through a series of logs –... -
Page 37: Configuration Manager
Configuration Manager The Configuration Manager is entered from the System Admin Menu by pressing the icon shown at the right. This is a privileged option and allows the administrator to load, save or clear the configuration file. The configuration files are in a folder of the same name in the ConfigFiles directory and contain all the set up elements of the recorder and is transportable. -
Page 38: Sending Email
Sending Email Sending email can be done in two ways – initiated by the user or initiated by an alarm condition. The email settings have to first be set up in the information is entered. To send an email on an alarm condition it is necessary to set up the and make sure that the system is To send an email manually it is necessary to enter the shown on the left. -
Page 39: User Login
User Login If password protection is enabled, the user will have to log in to be able to use many of the functions of the recorder. There are various levels of protection and access to functions is based on user privileges. These levels are: User: Can operate the recorder but cannot change any settings or configuration. -
Page 40: Background Color
4.8.2 Background Color The background color is the default color for all screen inactive areas, (between widgets and around the edge of the screen). It can be set by pressing the “BackGround” button shown right and in Figure 4-8 above. This will pop up the color selection dialog. -
Page 41: Email On Alarm Event
1. Ensure that the backup battery switch on the DO NOT USE THIS SWITCH TO TURN OFF THE UNIT. 2. If the unit has been off for a lengthy period, the battery may require up to 72 hours to fully charge. -
Page 42: Annotating Trends
Section 4 – Functional Description 4.12 Annotating Trends At any time while a live trend is visible, the user may annotate the chart by double tapping the point on the trend at which an annotation is to be added. This will pop up a small window as shown right which gives the option of Browsing existing annotations... -
Page 43: Adding A Text Message
Section 4 – Functional Description screen To draw on the screen, select the pen color as detailed above then, using the stylus, draw on the screen. Add any text in the text box and place it on the screen using the place text icon as detailed above. This allows the user to annotate clearly and precisely on the screen (see Figure 4-12.3 above) and save the picture accordingly. -
Page 44: Zoom And Compress Data
Markers Off – Tapping this icon will remove the markers from the traces. This icon will only be visible if the markers are currently on. Cursor – Tapping this icon turns on the cursor which allows unique identification of the points. Go –... -
Page 45: View Memos And Bitmaps
4.13.2 View Memos and Bitmaps At any time in the browse window, when an embedded memo or bitmap flag memo or bitmap can be viewed by tapping the envelope icon ONCE. Note that double tapping the screen will go to the Annotate dialog window. -
Page 46: Using Browser Jump To
4.13.4 Using Browser Jump To Future feature. 4.14 Browsing Annotations It is possible to view attached messages and bitmaps directly from the live trend window by double tapping anywhere on the trend. This Browse/Annotate selection box (shown left). The drop down menu shows the times of all attached memos or bitmaps in the buffer with the latest one first. -
Page 47: Recorder Setup
5.0 RECORDER SETUP The recorder can be fully customized and needs to be set up by the user. The setup is saved in files, which can be saved and loaded by the user. Several configurations are shipped with the unit and can be used as a starting point or the user can start with a clean slate and create a unique configuration. -
Page 48: Channel Setup
5.1.2 Channel Setup Pressing the edit button from the Master Channel Setup window takes you to the Channel Setup dialog window as shown in Figure 5-2. The user can copy an existing channel to this one or set up a new channel including the channel type and range, the point tag, engineering units and assign colors. -
Page 49: Channel Type Setup
5.1.3 Channel Type Setup The Channel Type Setup dialog window is dependent upon the type of input selected in the Channel Setup window above. Linear Input 5.1.3.1 For Linear Voltage and Current the dialog box is shown in right. For other input types it will differ. Select the Type from the pull down item list. -
Page 50: Industrial Square Root Extraction
Section 5 – Recorder Setup The resistor (or load) is connected like a 3 wire RTD – See Section Installation. Use the Output Low and High to scale the resistance to the engineering unit of choice. Industrial Square Root Extraction 5.1.3.3 The recorder accepts the same input types for Industrial Square Root as it does for Linear with the exception of Dry Contacts. -
Page 51: Calculated Input
Section 5 – Recorder Setup Calculated Input 5.1.3.5 Any of the eighteen channels can be a calculated channel. A calculated channel gets its value from a series of calculations, which may be based on one or more live channels. Setting a live input channel to be a calculated channel will disable the live input. - Page 52 Test Dialog: This window enables you to test your calculation after the recorder has compiled it. The original calculation is shown in the top line. There are entry boxes to enable you to set actual values for the channel variables. Once you have entered data, pressing the Calculate button will display the answer in the line above it.
-
Page 53: Conditional Input
Conditional Input 5.1.3.6 Any of the eighteen channels can be a conditional channel. A conditional channel gets its value from a true or false test of conditions which may be based on a live channel. Setting a live input channel to be a conditional channel will disable the live input. -
Page 54: Totalizer
Section 5 – Recorder Setup Ext. Reset Enable: This is the External Reset. If this box is checked the timer will be reset by an external event via the digital inputs Note: an optional digital I/O card must be present in the system AND the designated input must be programmed as a timer reset for this to work. -
Page 55: Frequency/Pulse Count
Reset Intrvl: This is the Reset Interval. total resets when Auto Reset is checked. The example above will reset the Total every 5 minutes. Reset Sync: If the Sync Enabled checkbox is checked the Total will reset the first time it reaches the set time. This allows the user to synchronize the reset to a known time. - Page 56 Calculator: This will bring up a calculator that allows computations to calculate the scaling factors. Apply: Save the values and exit 5.1.3.9.2 Pulse Count Select Pulse Count from the setup menu. The options for Input and Output scaling and Negative Edge Triggering are as above.
- Page 57 Section 5 – Recorder Setup Reset Print: When this box is checked each time the total is reset, the information will be appended to the alarm/event log (time and total). Total Reset on Alarm: – If checked the Total will be reset by the Alarm condition selected.
-
Page 58: Display Builder
Display Builder The Display Builder allows the user to customize the Graphical User Interface (GUI) or display screen using widgets to display data in various ways. The standard display on the recorder is shown on the right and consists of the Task Bar at the bottom of the screen and a display showing live or calculated data from various sources. -
Page 59: Editing
Section 5 – Recorder Setup Widgets are selected as follows: Place Digital display either full size (2x2) or half size (2x1). Place Bar Graphs - horizontal full (6x1) or half (3x1) or vertical full (1x8) or half (1x4). Place Trends - horizontal full (6x8), two-thirds (4x8) or half (3x8) and vertical full (6x8) or half (6x4). -
Page 60: Rotate List
5.2.3 Rotate List The Rotate List allows the user to decide which display views will be active. Under normal viewing conditions, the user can rotate through the displays by pressing anywhere on the Task Bar where there is no button. Each time the Task Bar is pressed the next display will be loaded. -
Page 61: Widgets
Widgets A widget is a graphic element that a user interacts with or is used to build graphical user interfaces or GUIs. In the case of the recorder, the user constructs a GUI using the types of widgets – Bars and Digital Displays. Trends, while treated as a widget in the Display Builder, are an autonomous class and are dealt with in the 5.3.1 Digital Displays There are two types of digital displays: full size and half size. -
Page 62: Displaying Min, Max Or Average Values
Alarms: When the Active box is checked the alarms are active for this channel (2) provided the Enable is set. When not checked the alarms are deactivated for this channel. Pressing the Alarms button opens the Alarm Setup dialog window. This allows changes to be made to the channel alarm settings which will affect ALL widgets using this channel. -
Page 63: Bar Graphs
5.3.2 Bar Graphs There are four types of bar graph widgets, two horizontal and two vertical with full size and half size versions of each. Up to 8 full size horizontal and 16 half size horizontal bar graphs can be placed on the GUI. Up to 6 full size vertical and 12 half size vertical bar graphs can be placed on the GUI. - Page 64 Scale: This is used to customize the local scale on the Bar Chart widget. In the above example, the input is a J Type Thermocouple which has an actual scale of -346 to 2192 °F. For this bar chart it has been set to 0 to 150 to show more detail at the points of interest.
- Page 65 Trends Trends are the most informative and complex of all the widgets. Trends show multiple channels of data with respect to time. The user can have multiple trend displays with different combinations of channels. Each channel can have its own scale or all channels can share the same scale. Trends are available in vertical or horizontal format.
-
Page 66: Trend Setup
Trend Setup 5.3.2.2 Trend setup can be done from the Builder or can be edited at any time by double- tapping the scale of the Trend display. Double- tapping the Trend display scale will pop up the Trend Scale Setup window as shown right. There are a couple of options at this point. - Page 67 Default Scale: The user can enter the Low Scale and High Scale values to use as the default scale. Delete: Delete this trend. Caution – this will remove the trend from the unit. Use Channel Scale: This loads the preset channel scale from the channel setup configuration and makes it the current setting for the Channel Scale.
-
Page 68: Alarms
Alarms A total of five Alarms can be set for each channel programmed. These five Alarms can be any combination of numerous Alarm types (limits). The Alarm dead band (also known as hysteresis) and Alarm delay can also be programmed for each Alarm type. In addition a custom event message can be created for entry into the alarm event log and can be set up to be emailed to the user. -
Page 69: Alarm Master Setup
Alarms will also activate relay outputs if this option is installed and set up. See Section details. 5.4.1 Alarm Master Setup Alarm setup can be done through the Alarm Master Setup or can be done on an “as you go” basis through the Channel Setup menu when defining or editing widgets. -
Page 70: Alarm Setup
Alarm Setup 5.4.1.1 Pressing the edit button above takes you to the individual Alarm Setup dialog window shown below right. The window will show the default Channel and Alarm setup based upon entry conditions – eg Channel 2 Alarm 1. The user can change the Alarm Number and the window will refresh and show the setup for that alarm. -
Page 71: Digital Input/Output
Event Message: Enter a message in the entry box (up to a maximum of 20 characters) that will be appended to the alarm/event log message if the check box to the left is checked. This message will also be appended to the email if the notify box is checked (see above). Audio File: The recorder can play a .wav file (PCM type only) instead of the standard alarm sound. -
Page 72: Digital Output Setup
5.5.1 Digital Output Setup To access the Digital Output Setup dialog window: Press the Utility Setup Menu icon on the bottom left of the Task Bar. Then Press the Digital I/O Setup icon which will bring up the digital IO selection dialog shown left. The Top Button will take you to the Digital Output setup. -
Page 73: Digital Input Setup
5.5.2 Digital Input Setup To access the Digital Input Setup dialog window: Press the Utility Setup Menu icon on the bottom left of the Task Bar. Press the Digital I/O Setup icon (left) and then select Digital Input button (below left) to launch the Digital Input Setup dialog window. - Page 74 Section 5 – Recorder Setup Event Message: Enter the event message that will be printed in the alarm event log (and the recorded file if enabled) in this Box. The message may be up to 20 characters in length. Master Enable: When checked this allows external events to be recognized by the system. When unchecked ALL external events are ignored.
-
Page 75: Record Setup
Record Setup There are several ways to start a recording. The recording can be started manually by the user, by an event, by an alarm event or on a time schedule. Each of these methods has to be enabled in the record setup as well as at the source (Digital Input Setup or Alarm Setup). -
Page 76: Media And Filename
5.6.2 Media and Filename Media: Select the media and file name to record to. Choices are: CF Card which is the Compact Flash card and is the recommended removable media. Internal Memory is the optional internal Secure Digital Card. It is effectively non removable. -
Page 77: Timed Record
5.6.5 Timed Record The unit can be set to start recording at a specific time and date and stop recording at a specific time and date. To do this check the Start Time checkbox and set the Date and Time below it. -
Page 78: Media Alarm
5.6.8 Media Alarm The media alarm can be used to alert the user that the media is nearing capacity and needs to be exchanged. The alarm needs to be setup before the enable checkbox is checked. The setup of the media alarms is similar to the setup for any alarm. -
Page 79: System Administrative Menu
System Administrative Menu The Administrative Menu is entered from the Utility Setup Menu by pressing the icon shown at the right. This is a privileged option and will pop-up a new set of icons as shown below: The icons have the following functions: Exit –... - Page 80 Section 5 – Recorder Setup Web User Management – Allows the administrator to add or remove web users. Details Here Email Setup – Allows the administrator to set up email parameters. Details Here Set ActiveSync Password – Allows the administrator to set the password for USB connection via ActiveSync.
-
Page 81: Temperature Compensation
5.7.1 Temperature Compensation This is the Ambient Temperature Compensation adjust and is used to compensate for adverse environments when using thermocouples. This feature is entered from the admin menu by pressing the icon shown right. At the terminal blocks where the thermocouples connect to the recorder there is a new thermocouple junction introduced which can affect the reading. -
Page 82: Modbus Settings
Modbus Settings 5.7.2.2 This is only applicable if the serial port option is installed in the unit. Modbus is a communication protocol which runs over RS232 (single unit) or RS485 (multiple units). The ID uniquely identifies the device in a multidrop environment and can be set from 1 to 255. -
Page 83: User Setup (Password Management)
To change the year – tap on it pull down iconwhich will pop up a calendar. Scroll through and select the current date. Select the required date format from the pull down menu – mm/dd/yyyy or dd/mm/yyyy. The time can be shown in 12 or 24 hour (military) formats. Check the 24 Hour Format check box for 24 hour format, uncheck it for 12 hour format. -
Page 84: File Explorer
Activity Log: Check this box to enable the Activity Log – this option tracks all changes made by a user and is useful for FDA compliance. Use the Exhibitor Software to print Activity Log reports. Add: Once user, password, and other parameters are entered this button will ADD the user to the list. -
Page 85: Network Settings
5.7.6 Network Settings Tapping the Ethernet IP Address Setting icon in System Admin Menu Network IP Address dialog window. If you wish to specify an IP address, enter the information in the IP, Subnet and Gateway text boxes. Check with your IT person if you are unsure what to enter here. -
Page 86: Smtp Email Settings
5.7.8 SMTP Email Settings This allows the administrator to set up the email. This feature is entered from the menu by pressing the icon shown right SMTP is Simple Mail Transfer Protocol and is the standard for email transmission across the Internet. The defaults for emails are set here as follows: From: The default name that will appear in the “From”... -
Page 87: Registry
5.7.10 Registry The Registry option allows the user to clear or save the registry. The Registry holds system base setup values not in the configuration file and needs to be saved if system setup changes have been made – for example recalibrating the stylus, or may need to be cleared if upgrading the firmware. -
Page 88: Languages
5.7.11 Languages The languages option allows the users to customize the unit language for the local country by loading preconfigured language files. This feature is entered from the system admin menu the icon shown right. This will bring up the language dialog screen. NOTE: Loading a new language will unload the existing configuration file. - Page 89 Section 5 – Recorder Setup Once beyond this step The file dialog box shown below right will appear. Select the media from the Media dropdown box. Note that CF Card is the compact flash card - USB HD is the front USB port - USB HD2 is the rear USB port and Internal is the system memory SHOULD NOT BE USED TO REFLASH the unit.
-
Page 90: Communication
Section 6 - Communication 6.0 COMMUNICATION There are various ways to communicate remotely with the recorder. The Ethernet port can be used to communicate on a network or via the World Wide Web (Both HTTP and FTP protocols). There are various means of doing this as simply as using a web browser, or using third party software using either the OPC (Open Connectivity) protocol or Modbus™... - Page 91 Section 6 - Communication Figure 6.1.2 – Index Page The recorder name is shown in bold at the top of the page – “Process Recorder”. If any channel is in alarm this name will be in red as shown, otherwise it will be in blue. Each channel data is shown as a digital panel indicator. The actual value is shown in the center in large digits.
-
Page 92: Web Based Ftp Manager
Section 6 - Communication Web Based FTP Manager The “File Manager” Button brings up the FTP launch window. Note that you need internet access to run the FTP File Manager and the Java Engine must be present. Click the big button to proceed. If internet access is not available you can run the local Recorder File Manager... - Page 93 Section 6 - Communication The red numbers are used for reference purposes only and do not appear in the actual browser window. The parts of the screen are as follows: Current local directory - Displays the full path of your current local directory on your computer. It has the heading “Local File System”...
- Page 94 Section 6 - Communication 10. This is the connection to the Java web site to allow download of the Java Engine that runs this program. It may be the only thing you see if Java is not installed. The FTP Manager allows for file manipulation between the local PC (computer) and the remote recorder. It functions much like Windows Explorer and allows files to be uploaded or downloaded between devices, allows files to be renamed, moved, copied and deleted.
-
Page 95: Ethernet Protocols
Section 6 - Communication Ethernet Protocols 6.3.1 OPC Server The Recorder supports The OPC Standard (Open Connectivity over Open Standards). It is a standard used to move real-time data from PLCs, DCSs, and other control devices to HMIs and other display clients. -
Page 96: Modbus Server
Section 6 - Communication 6.3.2 Modbus Server The recorder supports Modbus An RS485 interface will support up to 64 Data Recorders linked to a single computer. Each of the Recorders will be identified by a unique unit address (programmed under System Settings - Modbus). This address is set at 1 to 256 and must be different from any other recorder on the loop. - Page 97 Section 6 - Communication Table 6.3.2.2 Holding Registers 4xxx (Use Function 3 to Access) Register # FUNCTION AND STATE 4361 Point 1 Data Low Word 4362 Point 1 Data High Word 4363 Point 2 Data Low Word 4364 Point 2 Data High Word 4365 Point 3 Data Low Word 4366...
-
Page 98: Usb Connections
– shown right. Select the “Open device to view files” option to explore the files on the recorder. Do NOT delete system files on the recorder. Page 89 using the switch at the bottom rear of the 09/11/2008 REV 0.99... -
Page 99: Utility Programs
Section 6 - Communication Utility Programs The utility programs provide a method of communicating with the recorder to move data or control operation remotely. The programs are on the CD that came with the unit. To install the programs, insert the CD in the Drive (Windows based PCs) and it should auto launch. - Page 100 Section 6 - Communication The program is launched from the desktop icon shown right or from the programs menu. The program launches the window below: The red numbers are for reference only. The software is intended for use with the recorders only – it is specific to this task.
- Page 101 Section 6 - Communication Connect and Disconnect buttons – will initiate the actual connection to the recorder. The button with the green dot is connect, the one with the red dot is disconnect. Refresh button – this will update the directory listings on the local and remote windows. Help button –...
-
Page 102: Remote Control
Section 6 - Communication 6.5.2 Remote Control There are two remote control programs available for controlling the recorder over the Ethernet. Remote Display is recommended if you are on the same network as the recorder. the recorder over a wide area network (WAN) when the recorder is on the other side of a firewall. The Remote Manager funnels all communication through a single port and is consequently slower than the Remote Display. -
Page 103: Remote Manager
Section 6 - Communication Remote Manager 6.5.2.2 The Remote Manager program is installed from the software installation disk that came with the recorder. This program will run on a WAN (Wide Area Network) – over the Ethernet and will work through a Firewall if the firewall is set up correctly. It will work over a LAN (Local Area Network) but the Remote Display installed The Remote Manager is launched by double clicking the Remote Manager Icon... -
Page 104: Instrument Care And Maintentance
Section 7 - Instrument Care and Maintenance 7.0 INSTRUMENT CARE AND MAINTENANCE Touch Screen Care should be taken with the touch screen when handling the unit. Sharp and hard objects may pierce the touch screen and damage the display. Only use the stylus provided for screen selection. Clean the screen according to the instructions below. -
Page 105: Calibrating Linear Voltage Inputs
Section 7 - Instrument Care and Maintenance for each channel. Current Cal RTD – Calibrate the unit‟s current excitation source. Apply a 250 Ohm precision resistor. Doing this on one channel calibrates all channels. 1 Hz Cal – Calibrate the units frequency reference. Apply a 1 Hz signal to channel 1, 6, 7 or 12. Doing this on one channel calibrates all four channels. -
Page 106: Store Cal
Section 7 - Instrument Care and Maintenance one channel calibrates all channels. Accept the “Calibration Function OK” popup dialog. To calibrate another range repeat from step 6.3.1.3. Calibrate all or as many ranges as you need. 7.3.1.4 Store Cal Once all the required ranges are calibrated, select “Store Cal” function and press the “Calibrate” button. Accept the “Calibration Function OK”... - Page 107 Section 7 - Instrument Care and Maintenance Select the channel to use in the Channel drop down menu box (1, 6, 7 or 12) and select “1 Hz Cal” in the Calibration Function drop down menu box. The Range does not matter. Press the “Set Chan” button. A “Channel has been set successfully”...
-
Page 108: Appendix A - Technical Specifications
Appendix A - Technical Specifications APPENDIX A – TECHNICAL SPECIFICATIONS DISPLAY Display Type Color CCFL backlit Active Matrix TFT Liquid Crystal Display (5.6 inch) QVGA with resistive analog touch screen control. Resolution Color 320 (H) X 234 (V) pixels. Display Modes Graphics (Trending vertical or horizontal), Bar Graphs (vertical or horizontal, large or small), Digital Meter (large or small), Alphanumeric Alarm and Event Log. - Page 109 Appendix A - Technical Specifications Thermocouple: Per ITS90 Resolution 0.1°C Thermocouple burnout detection - automatic Type Range (°C) Accuracy (°C) -210 to -100 °C ±2.5 °C -100 to 1200 °C ±1.5 °C -270 to -100 °C ±2.5 °C -100 to 1372 °C ±1.5 °C -270 to -100 °C ±2.5 °C -100 to 400 °C ±1.5 °C -270 to -100 °C ±2.5 °C...
- Page 110 Appendix A - Technical Specifications RECORDING Recording Rates User programmable from 10 samples per second to 1 sample every 99 hours. Data Format Proprietary encrypted format. User File naming. Data Storage Capacity Data stored in non-volatile RAM and recorded automatically to Removable Media Types Industry Standard removable Compact Flash to 2GB Industry Standard USB Flash Drives to 2 GB Internal Media...
-
Page 111: Appendix B - Digital Input Voltage Adjustment
Appendix B – Digital Input Voltage Adjustment APPENDIX B – DIGITAL INPUT VOLTAGE ADJUSTMENT WARNING TO ELIMINATE THE RISK OF SHOCK ENSURE THAT THE MAINS CABLE AND ALL CONNECTORS ARE REMOVED FROM THE RECORDER BEFORE PROCEEDING. B.1 ANALOG MODULE: The analog input module accepts frequency inputs on Channels 1, 6, 7 and 12. -
Page 112: Digital Io Module
Appendix B – Digital Input Voltage Adjustment B.2 DIGITAL IO MODULE: The digital IO module accepts 2 to 6 digital inputs depending on options. By default these inputs are set up to accept input voltages from 12 to 24 volts dc. The user can change the input voltage range to 5 to 12 volts dc by moving jumpers internally on the module. - Page 113 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 25 months from date of purchase. OMEGA Warranty adds an additional one (1) month grace period to the normal two (2) years product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
