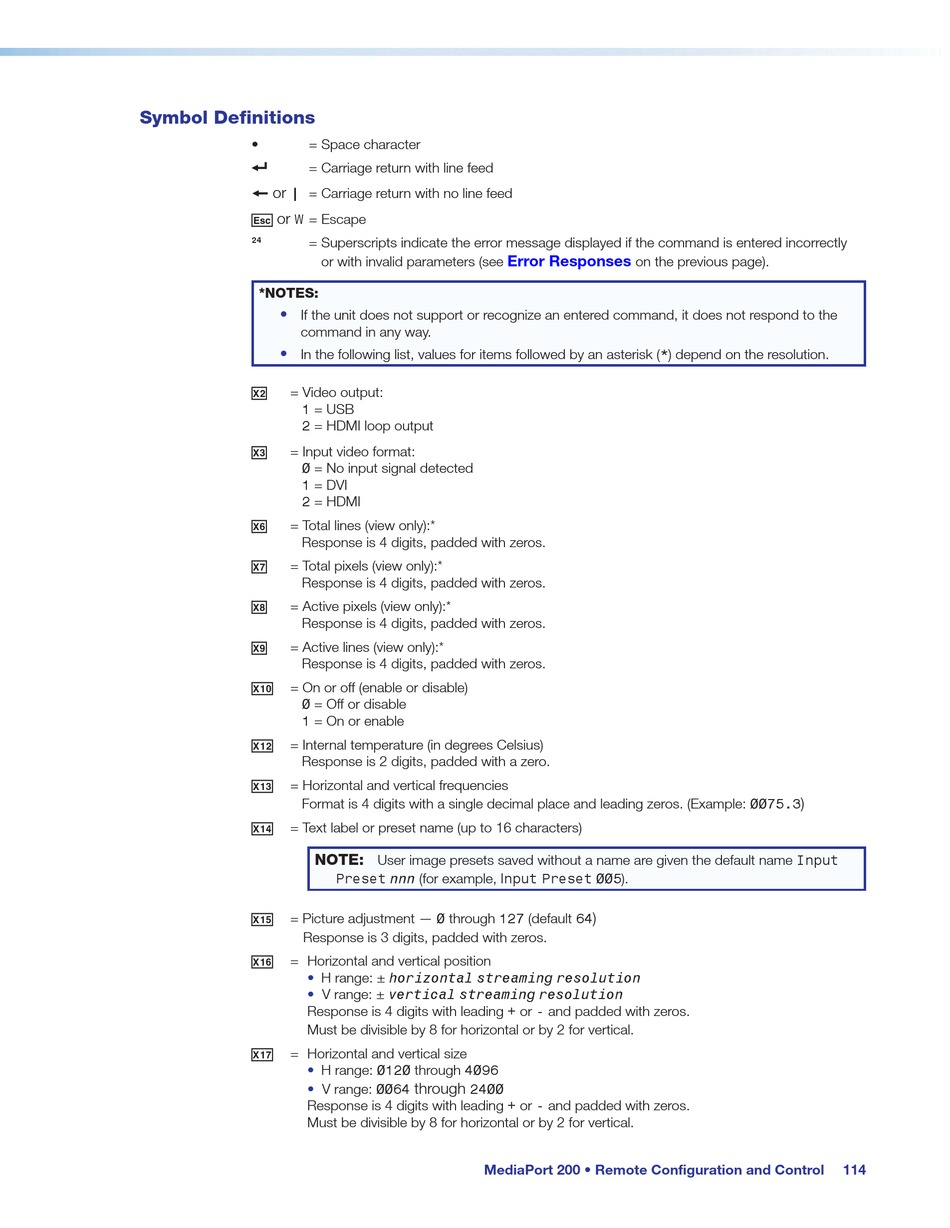

Symbol Definitions

• = Space character
]
= Carriage return with line feed
} or |
= Carriage return with no line feed
E or
W = Escape
= Superscripts indicate the error message displayed if the command is entered incorrectly
24
*NOTES:
•
If the unit does not support or recognize an entered command, it does not respond to the
command in any way.
•
In the following list, values for items followed by an asterisk (*) depend on the resolution.
X@
= Video output:
1 = USB
2 = HDMI loop output
X#
= Input video format:
0 = No input signal detected
1 = DVI
2 = HDMI
X^
= Total lines (view only):*
Response is 4 digits, padded with zeros.
X&
= Total pixels (view only):*
Response is 4 digits, padded with zeros.
X*
= Active pixels (view only):*
Response is 4 digits, padded with zeros.
X(
= Active lines (view only):*
Response is 4 digits, padded with zeros.
X1)
= On or off (enable or disable)
0 = Off or disable
1 = On or enable
X1@
= Internal temperature (in degrees Celsius)
Response is 2 digits, padded with a zero.
X1# = Horizontal and vertical frequencies
Format is 4 digits with a single decimal place and leading zeros. (Example: 0075.3
X1$
= Text label or preset name (up to 16 characters)
NOTE:
X1%
= Picture adjustment — 0 through 127 (default 64
Response is 3 digits, padded with zeros.
X1^
= Horizontal and vertical position
•
•
Response is 4 digits with leading + or - and padded with zeros.
Must be divisible by 8 for horizontal or by 2 for vertical.
X1&
= Horizontal and vertical size
•
•
Response is 4 digits with leading + or - and padded with zeros.
Must be divisible by 8 for horizontal or by 2 for vertical.
or with invalid parameters (see
User image presets saved without a name are given the default name Input
Preset nnn (for example, Input Preset 005).
H range: ± horizontal streaming resolution
V range: ± vertical streaming resolution
H range: 0120 through 4096
through
V range: 0064 2400
