HDMI Input

Resolution
A
Signal Type
B
HDCP Status
C
Aspect Ratio
D

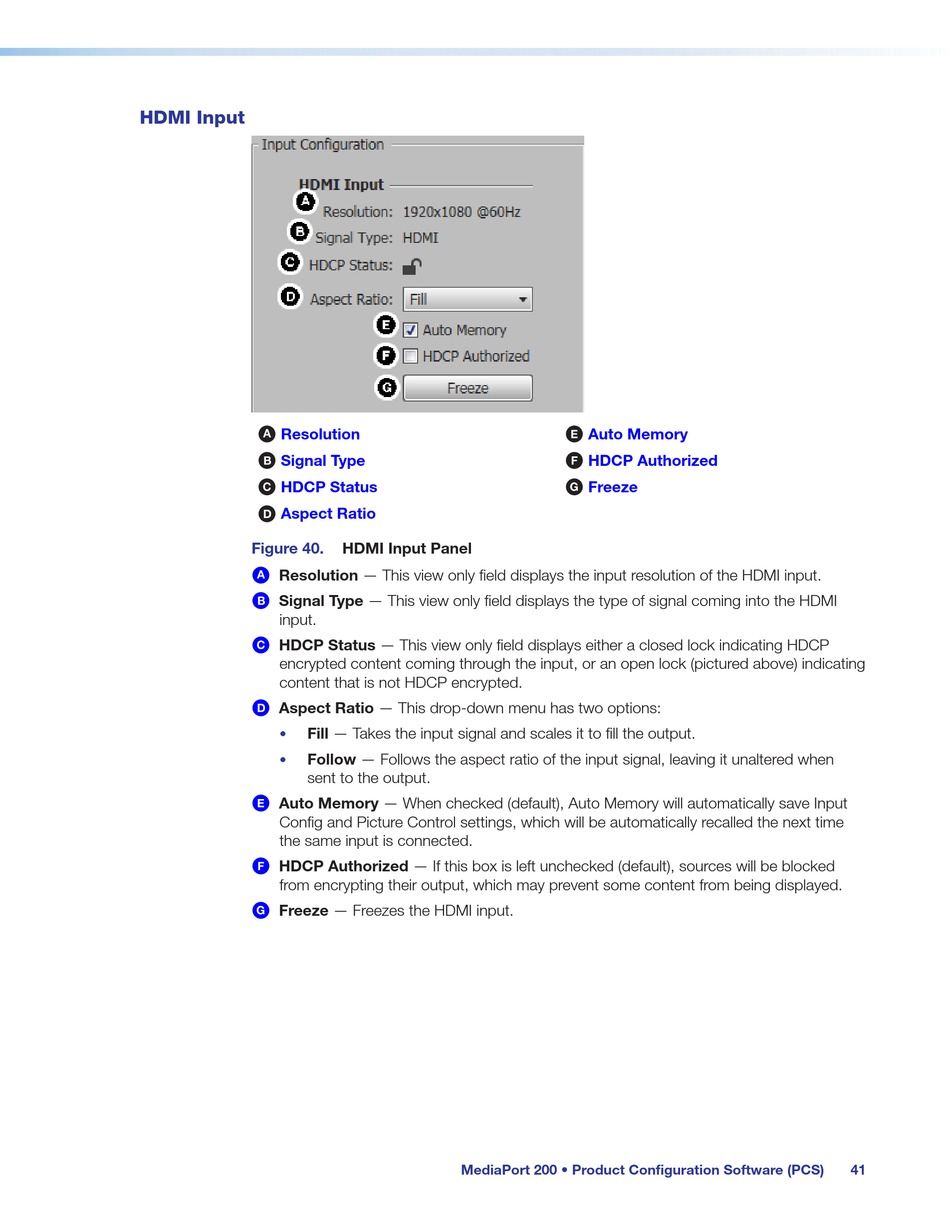

Figure 40.
Resolution — This view only field displays the input resolution of the HDMI input.
A
Signal Type — This view only field displays the type of signal coming into the HDMI
B
input.
HDCP Status — This view only field displays either a closed lock indicating HDCP
C
encrypted content coming through the input, or an open lock (pictured above) indicating
content that is not HDCP encrypted.
Aspect Ratio — This drop-down menu has two options:
D
Fill — Takes the input signal and scales it to fill the output.
•
Follow — Follows the aspect ratio of the input signal, leaving it unaltered when
•
sent to the output.
Auto Memory — When checked (default), Auto Memory will automatically save Input
E
Config and Picture Control settings, which will be automatically recalled the next time
the same input is connected.
HDCP Authorized — If this box is left unchecked (default), sources will be blocked
F
from encrypting their output, which may prevent some content from being displayed.
Freeze — Freezes the HDMI input.
G
HDMI Input Panel
MediaPort 200 • Product Configuration Software (PCS)
Auto Memory
E
HDCP Authorized
F
Freeze
G
