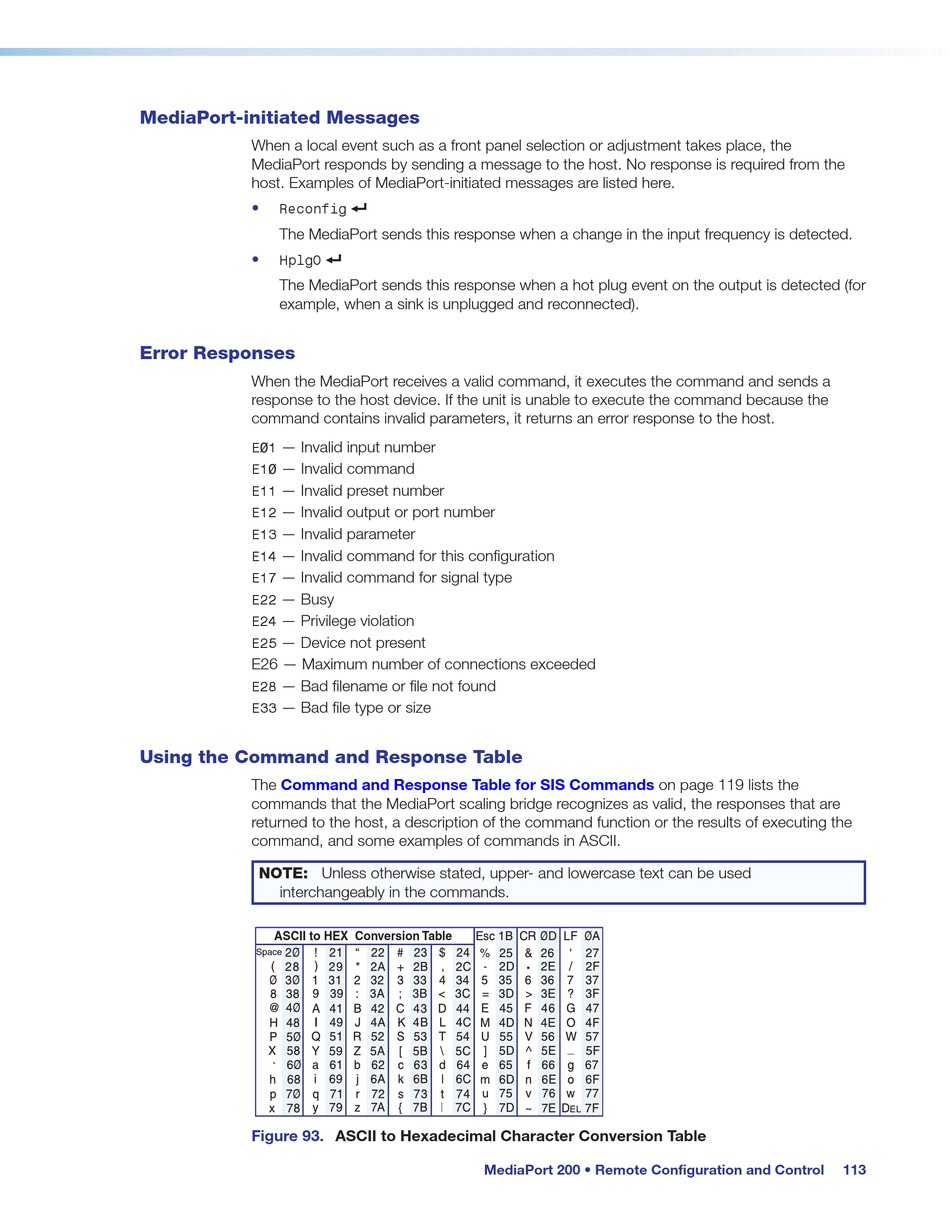

MediaPort-initiated Messages

When a local event such as a front panel selection or adjustment takes place, the
MediaPort responds by sending a message to the host. No response is required from the
host. Examples of MediaPort-initiated messages are listed here.
•
Reconfig
The MediaPort sends this response when a change in the input frequency is detected.
•
HplgO
The MediaPort sends this response when a hot plug event on the output is detected (for
example, when a sink is unplugged and reconnected).

Error Responses

When the MediaPort receives a valid command, it executes the command and sends a
response to the host device. If the unit is unable to execute the command because the
command contains invalid parameters, it returns an error response to the host.
— Invalid input number
E01
— Invalid command
E10
— Invalid preset number
E11
— Invalid output or port number
E12
— Invalid parameter
E13
— Invalid command for this configuration
E14
— Invalid command for signal type
E17
— Busy
E22
— Privilege violation
E24
— Device not present
E25
E26 — Maximum number of connections exceeded
— Bad filename or file not found
E28
— Bad file type or size
E33

Using the Command and Response Table

The Command and Response Table for SIS Commands
commands that the MediaPort scaling bridge recognizes as valid, the responses that are
returned to the host, a description of the command function or the results of executing the
command, and some examples of commands in ASCII.
NOTE: Unless otherwise stated, upper- and lowercase text can be used
interchangeably in the commands.
ASCII to HEX Conversion Table
Space
Figure 93.
]
]
ASCII to Hexadecimal Character Conversion Table
MediaPort 200 • Remote Configuration and Control
on page 119 lists the
•
113
